Size | Rider Height Range |
---|---|
SM | 5'1" – 5'5" |
MD | 5'4" – 5'9" |
LG | 5'8" – 6'1" |
XL | 6'0" – 6'5" |

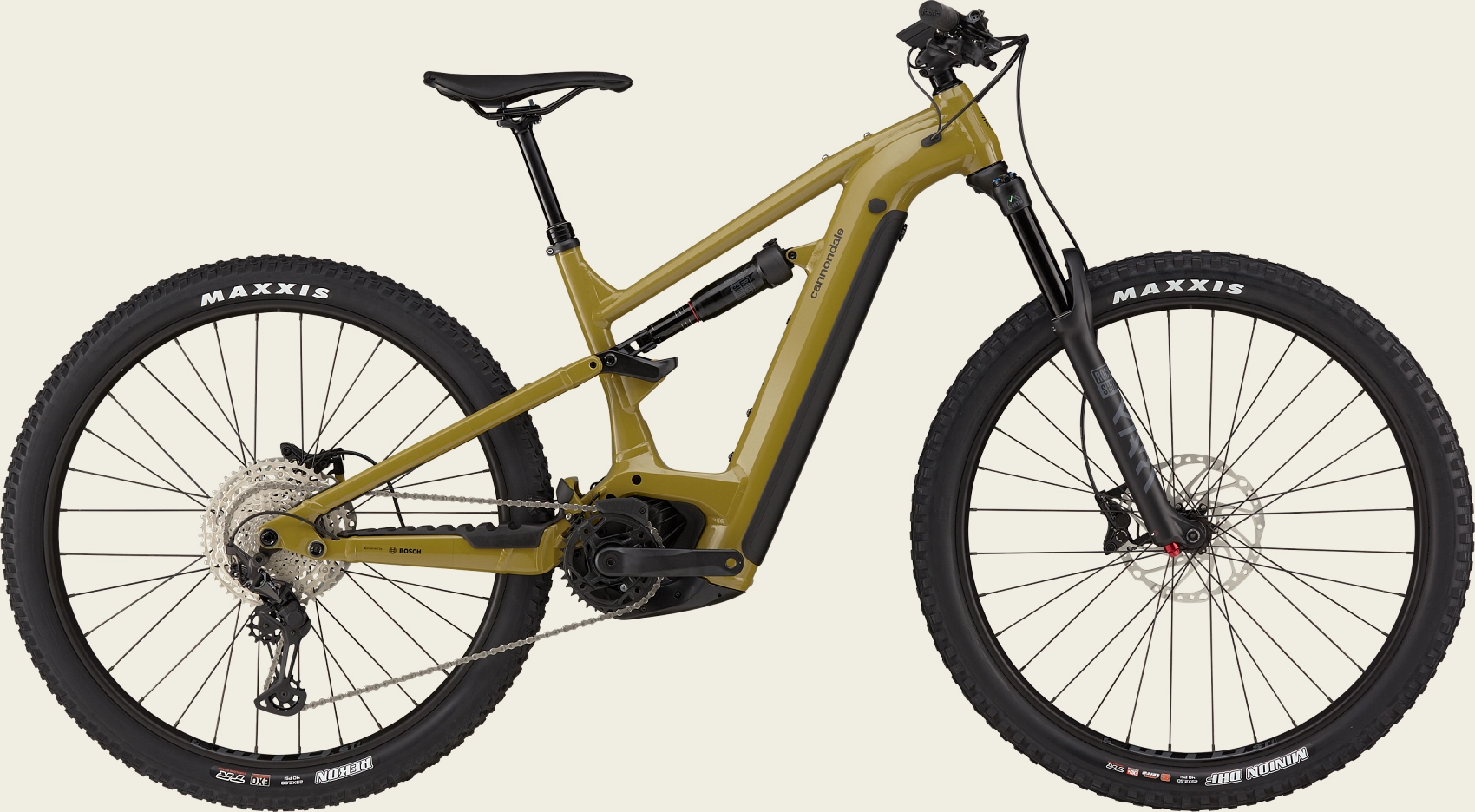

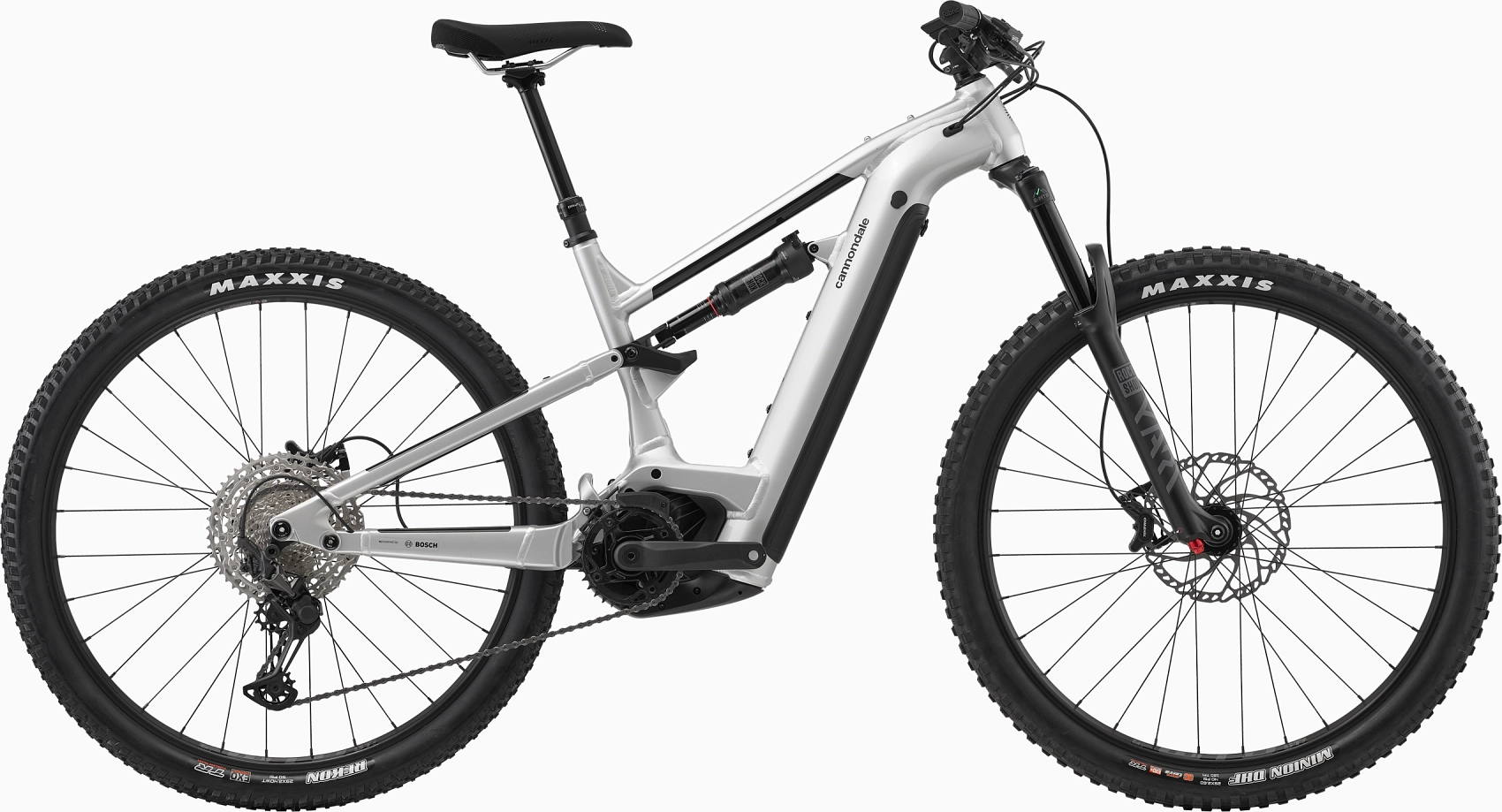

Cannondale Moterra Neo 3
Details | |
---|---|
Platform | Moterra Neo |
Model Name | Moterra 3 |
Model Code | C65372U |
Frameset | |
---|---|
Frame | Moterra, SmartForm C1 Alloy, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, injection molded skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, tapered headtube, 18mm two-bolt kickstand mount, integrated rear rack mounts |
Fork | RockShox Yari RC, 150mm, 15x110mm Boost, 44mm offset |
Rear Shock | RockShox Deluxe Select, DebonAir, 2-Pos mode adjust, adjustable rebound |
Headset | Integrated Sealed Bearing, 1-1/8" - 1.5" |
E-System | |
---|---|
Drive Unit | Bosch Performance Line CX 250W |
Battery | Bosch PowerTube, 750Wh |
Charger | Bosch 4A |
Display | Bosch Kiox 300 w/ LED remote |
Certifications | UL 2849 |
Drivetrain | |
---|---|
Rear Derailleur | Shimano XT |
Shifters | Shimano Deore M6100, 12-speed |
Chain | Shimano Deore 6100, 12-speed |
Crank | FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
Rear Cogs | Shimano Deore M6100, 10-51, 12-speed |
Brakes | |
---|---|
Brakes | Shimano MT420 4-piston hydraulic disc, 203/203mm rotors |
Brake Levers | Shimano MT401 hydraulic disc |
Wheels | |
---|---|
Rims | WTB ST i30 TCS, 32h, tubeless ready |
Spokes | Stainless Steel, 14g |
Wheel Size | 29" |
Tire Size | 2.6" |
Hubs | (F) Formula 15x110mm / (R) Shimano MT410, 12x148mm |
Front Tire | Maxxis Minion DHF, 29x2.6", EXO, tubeless ready |
Rear Tire | Maxxis Rekon, 29x2.4" (27.5x2.4" - size Small), EXO, tubeless ready |
Components | |
---|---|
Handlebar | Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm |
Stem | Cannondale 3, 6061 Alloy, 31.8, 0° |
Grips | Fabric FunGuy |
Saddle | Fabric Scoop Shallow Sport, steel rails |
Seatpost | TranzX dropper, internal routing, 31.6, 130mm (S), 150mm (M-XL) |
Extras | |
---|---|
Extra | Pre-installed light cable (Note: this model is not compatible with Bosch Range Extender) |
