| S | 5'0"-5'4" |
| M | 5'3"-5'8" |
| L | 5'7"-6'1" |
| XL | 6'-6'5" |
64.9º |
76-77º |
435mm |
| Head Tube Angle | Seat Tube Angle | Chainstays |

| NOMINAL SIZE | SM | MD | LG | XL | |
|---|---|---|---|---|---|
| Seat Tube Length | A | 368 | 380 | 432 | 483 |
| Top Tube Length | B | 573 | 603 | 632 | 655 |
| Head Tube Length (4mm stack of lower cup not included) | C | 90 | 100 | 110 | 120 |
| Chainstay Length | D | 435 | 435 | 435 | 435 |
| Seat Tube Angle | E | 77° | 76° | 76° | 76° |
| Head Tube Angle | F | 64.9° | 64.9° | 64.9° | 64.9° |
| Wheelbase | G | 1185 | 1216 | 1237 | 1262 |
| BB Height (with 2.6 Schwalbe Nobby Nicks) | 341 | 341 | 341 | 341 | |
| Stack | 613 | 620 | 629 | 642 | |
| Reach | 431 | 458 | 475 | 495 | |
| Standover | 705 | 750 | 750 | 760 | |
| Trail | 125 | 125 | 125 | 125 | |
| BB Drop | 30 | 30 | 30 | 30 | |
| Saddle height for seat tube angle | 650 | 700 | 750 | 810 |
| Component | Standard Component | Upgrade / Option |
|---|---|---|

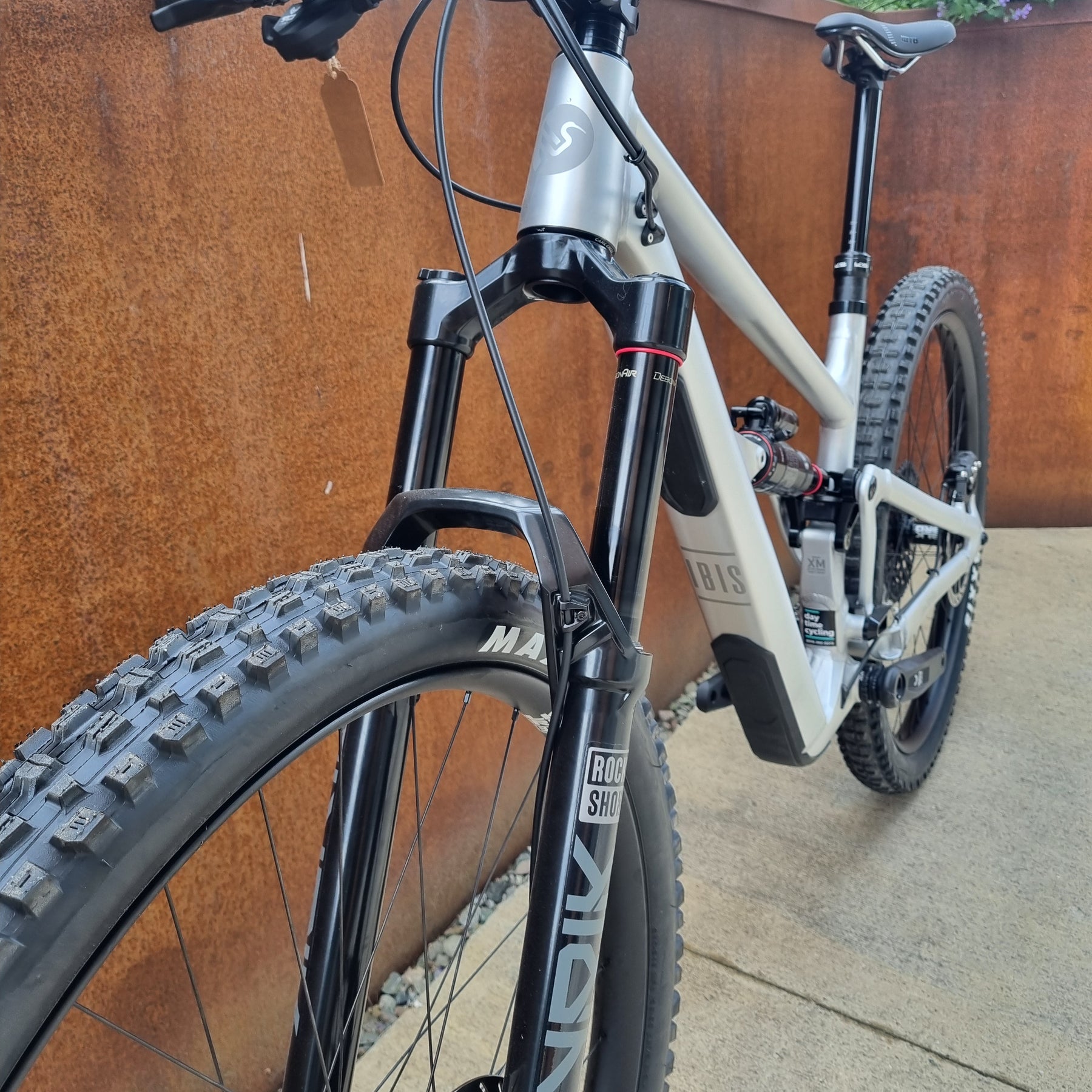

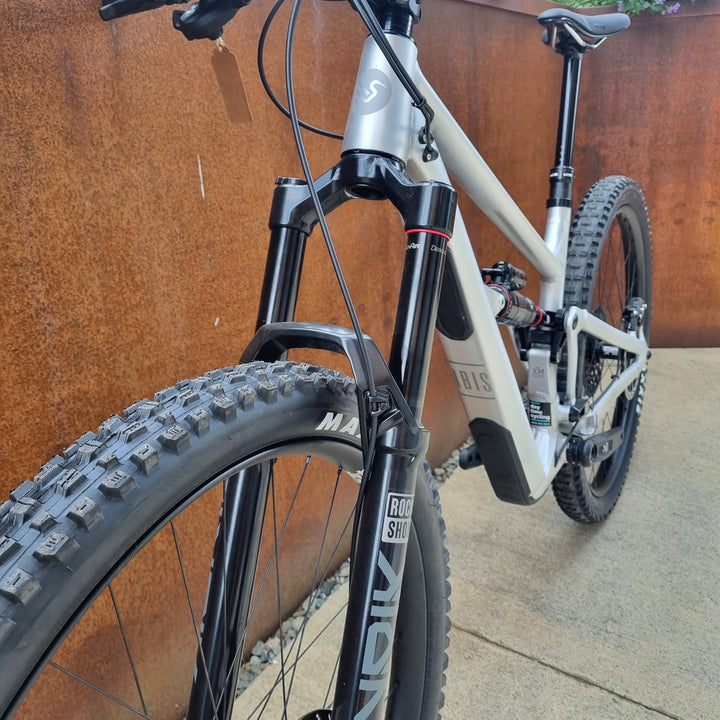

| Fork | RockShox Lyrik, 15QRx110, 160mm | |
| Shock | RockShox Super Deluxe Select, 230mm x 60mm | |
| Wheels | Blackbird Send Alloy (Send I front, Send II rear) S–M: Front 29" / Rear 27.5" XM–XL: Front 29" / Rear 29" |
|
| Front Tire | Maxxis Assegai 29x2.5 EXO+ | |
| Rear Tire | Maxxis DHR2 EXO+ S–M: 27.5" x 2.5" XM–XL: 29" x 2.5" |
|

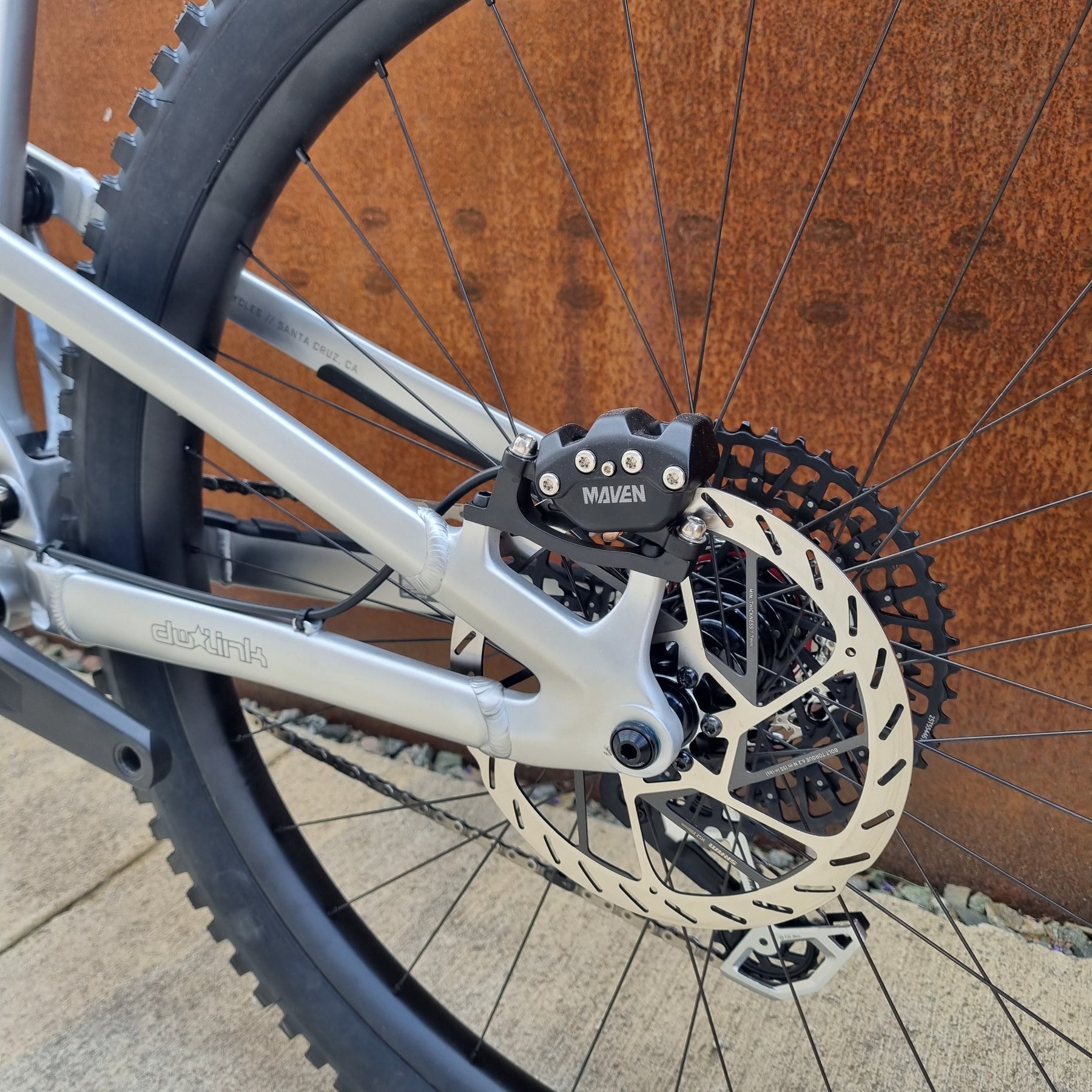

| Brakes | SRAM Maven | |
| Rotors (F/R) | SRAM Centerline 6-Bolt 200F / 200R | |
| Crankset | SRAM Eagle 90 Transmission DUB 30T Alloy Ring S–M: 165mm XM–XL: 170mm |
|
| Bottom Bracket | SRAM DUB BSA | |

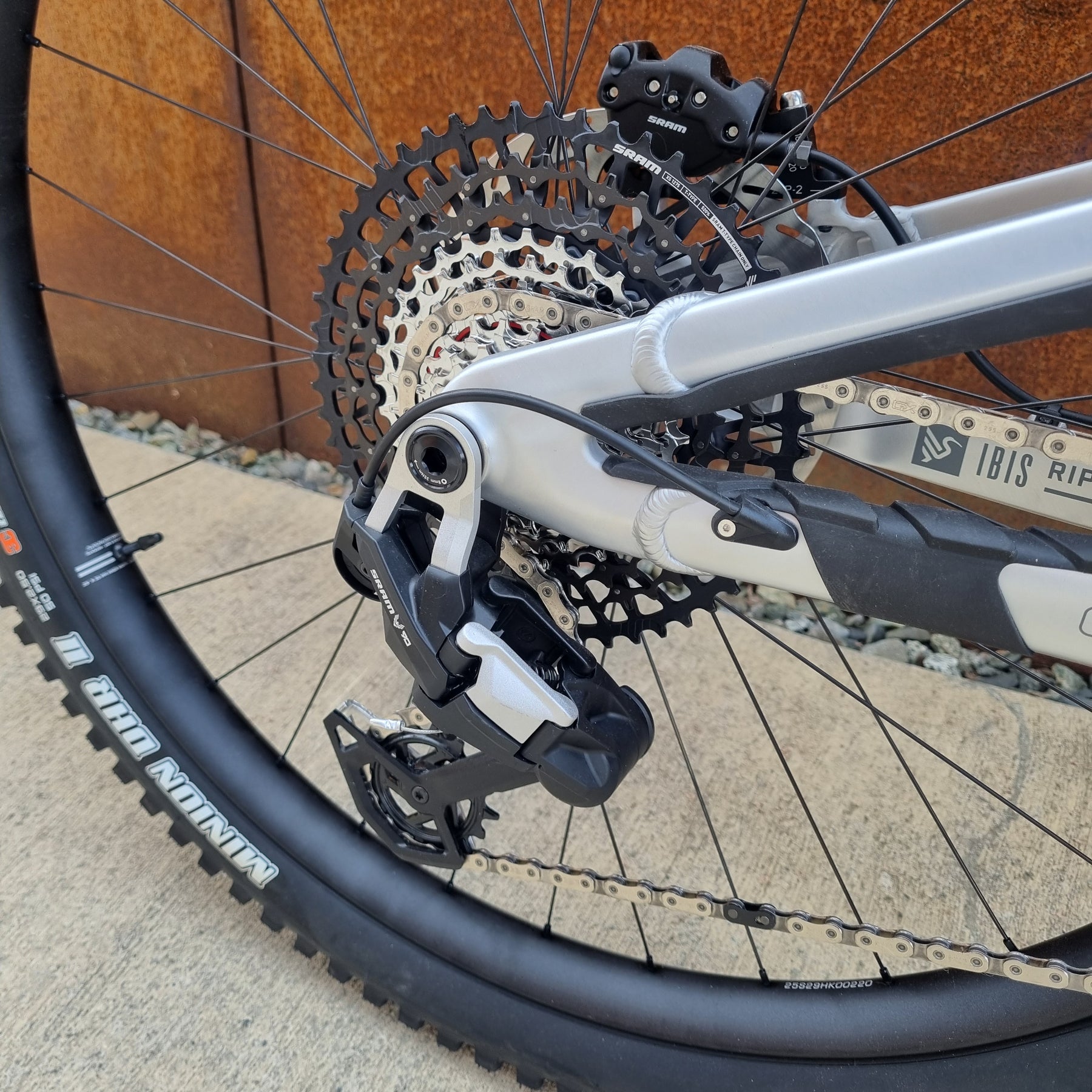

| Rear Derailleur | SRAM Eagle 90 Transmission | |
| Shifter | SRAM Eagle 90 Transmission | |
| Cassette | SRAM XS 1275 Transmission, T-Type, 10-52T | |
| Chain | SRAM GX Eagle Transmission, T-Type | |
| Headset | Cane Creek 50: ZS44/ZS56 | |

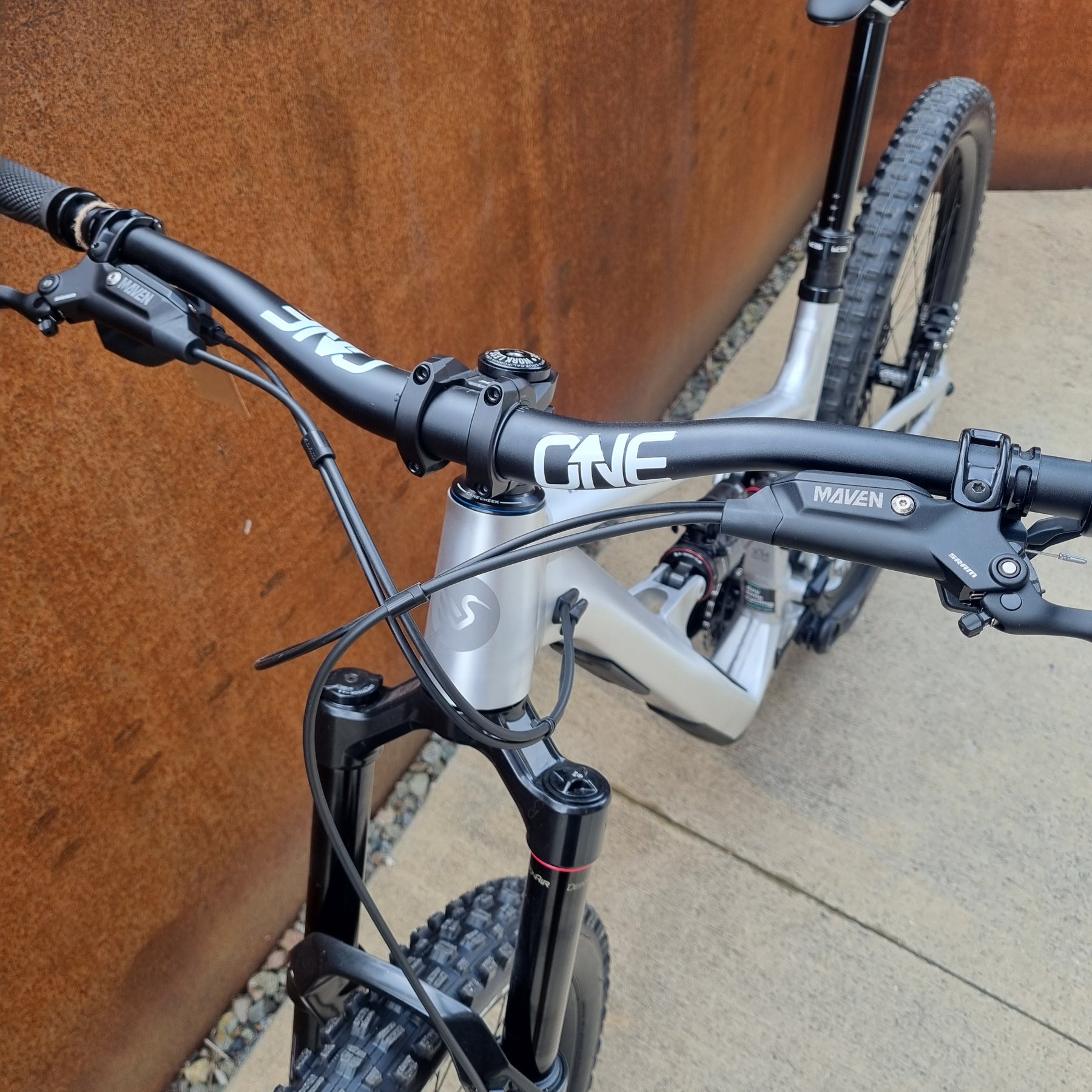

| Grips | Lizard Skins Strata Single Clamp | OneUp Lock-On Grips |

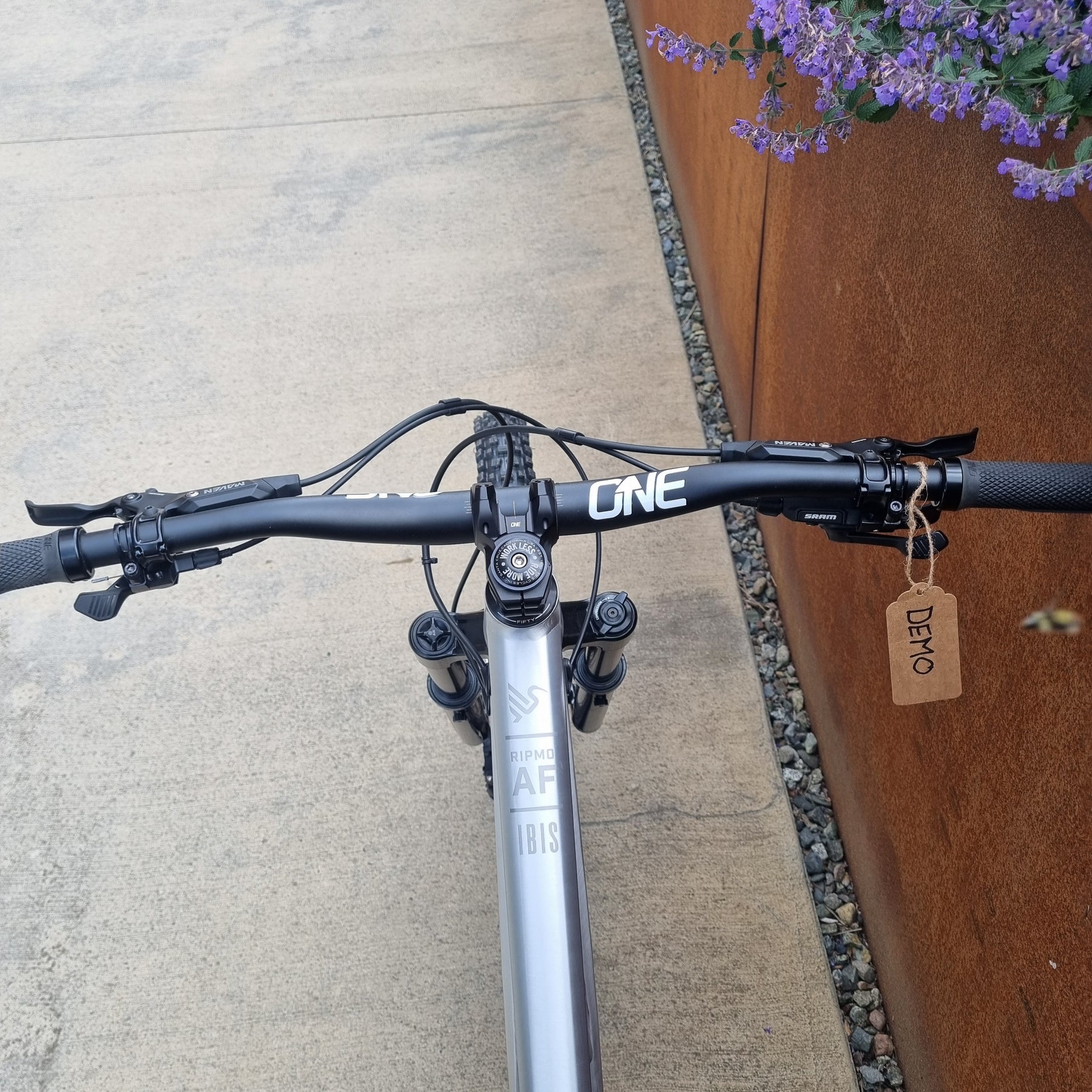

| Handlebar | Ibis Aluminum, 780mm | OneUp Aluminum Handlebar |
| Stem | Ibis 31.8mm Stem | OneUp 35mm Stem |
| Seatpost | ||
| Saddle | WTB Silverado Fusion CrMo 142 |
Images may not show actual build kit content. Pricing and specifications subject to change without notice.
