Find Your Size
Enter your height and we will highlight the best matching frame size.
Tell us how tall you are.
Based on your height, we suggest a , which works for heights ranging from to .
-
Size:46
5'0"152cm 5'4"162cm
-
Size:51
5'5"165cm 5'9"175cm
-
Size:54
5'7"170cm 5'11"180cm
-
Size:56
5'10"177cm 6'1"185cm
-
Size:58
6'0"182cm 6'4"193cm
-
Size:61
6'3"190cm 6'7"200cm
Long arms? Short legs? Just not sure?
Some models run larger than others. Give us a call and we can help you identify a size more specific to your body type.

Specs
Details
-
Platform
-

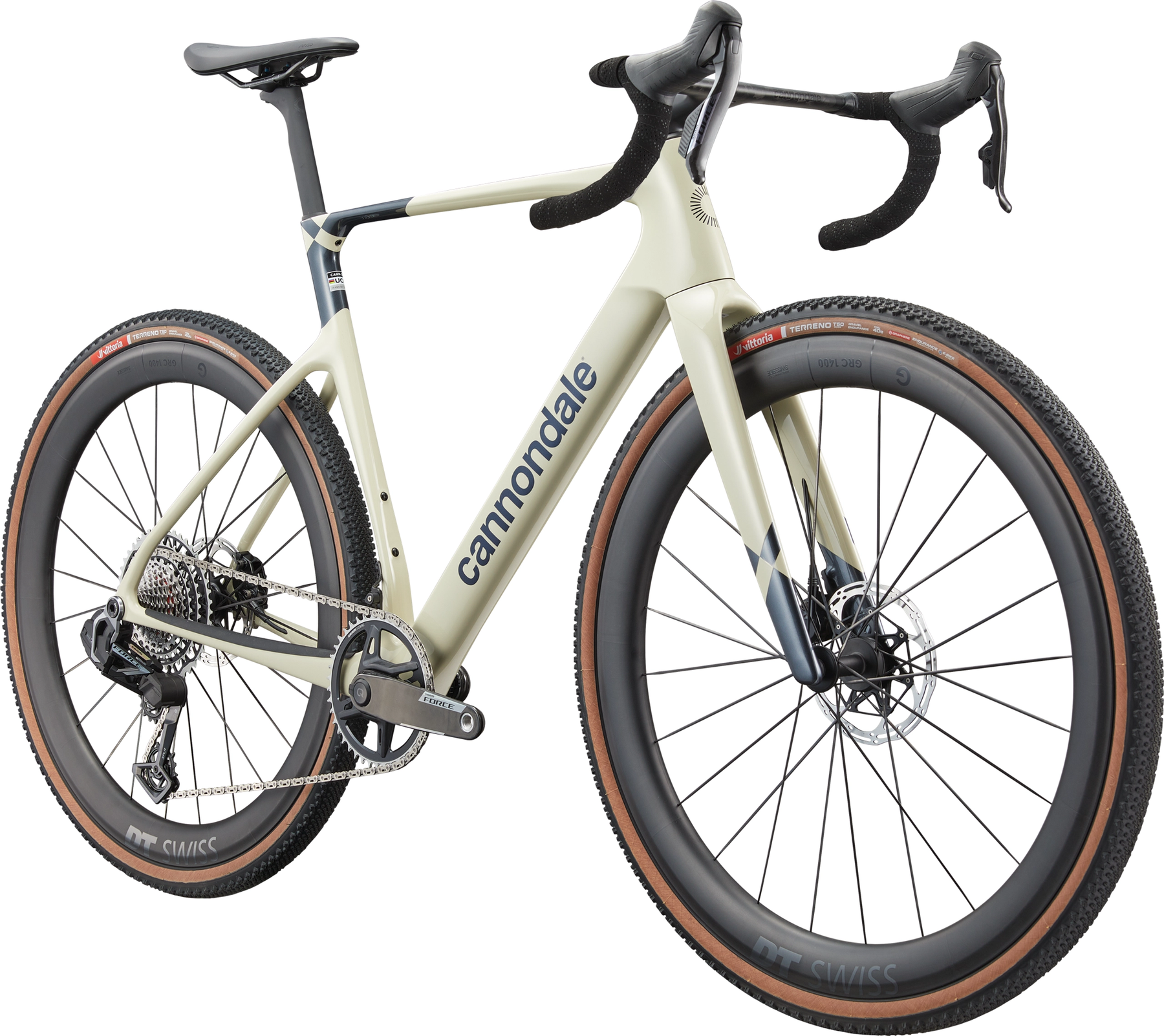

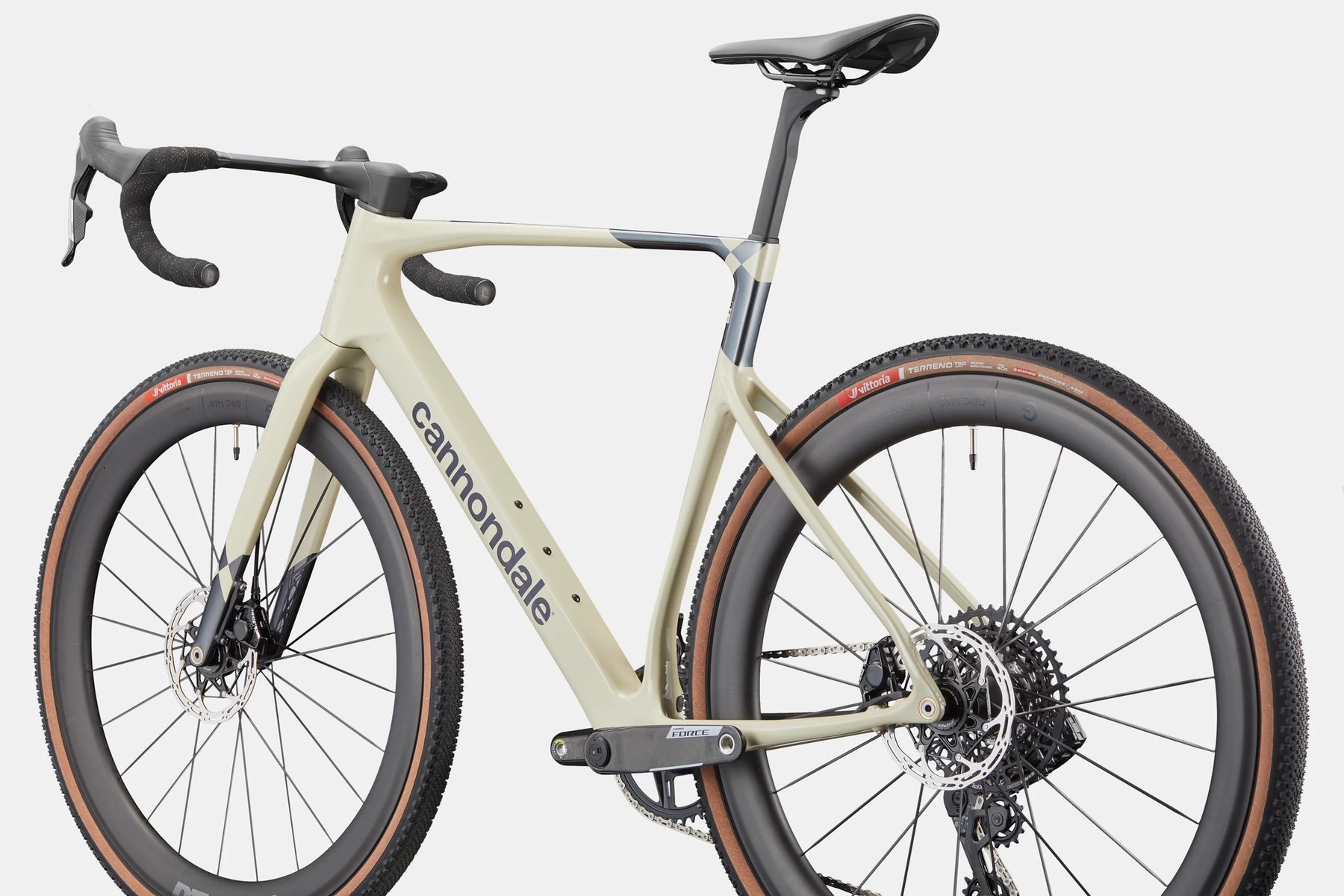

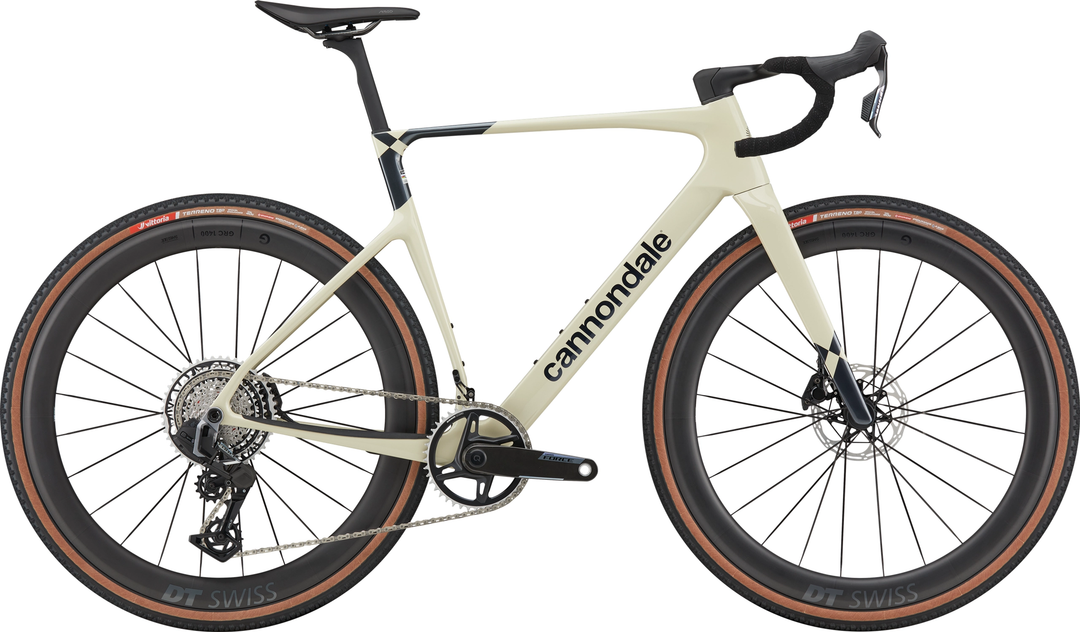

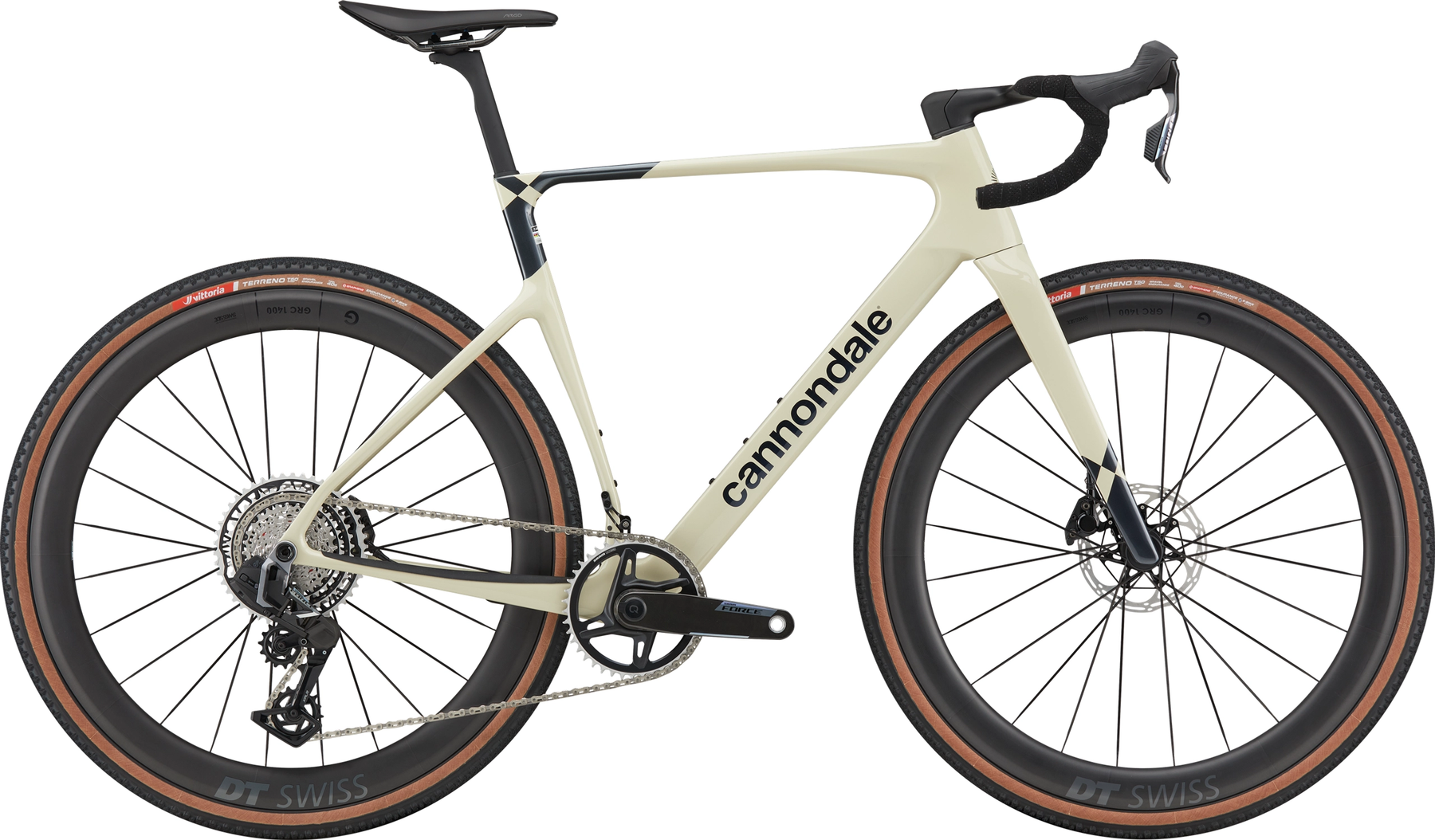

Model NameSuperX 1
-
Model CodeC1703GU
Frameset
-

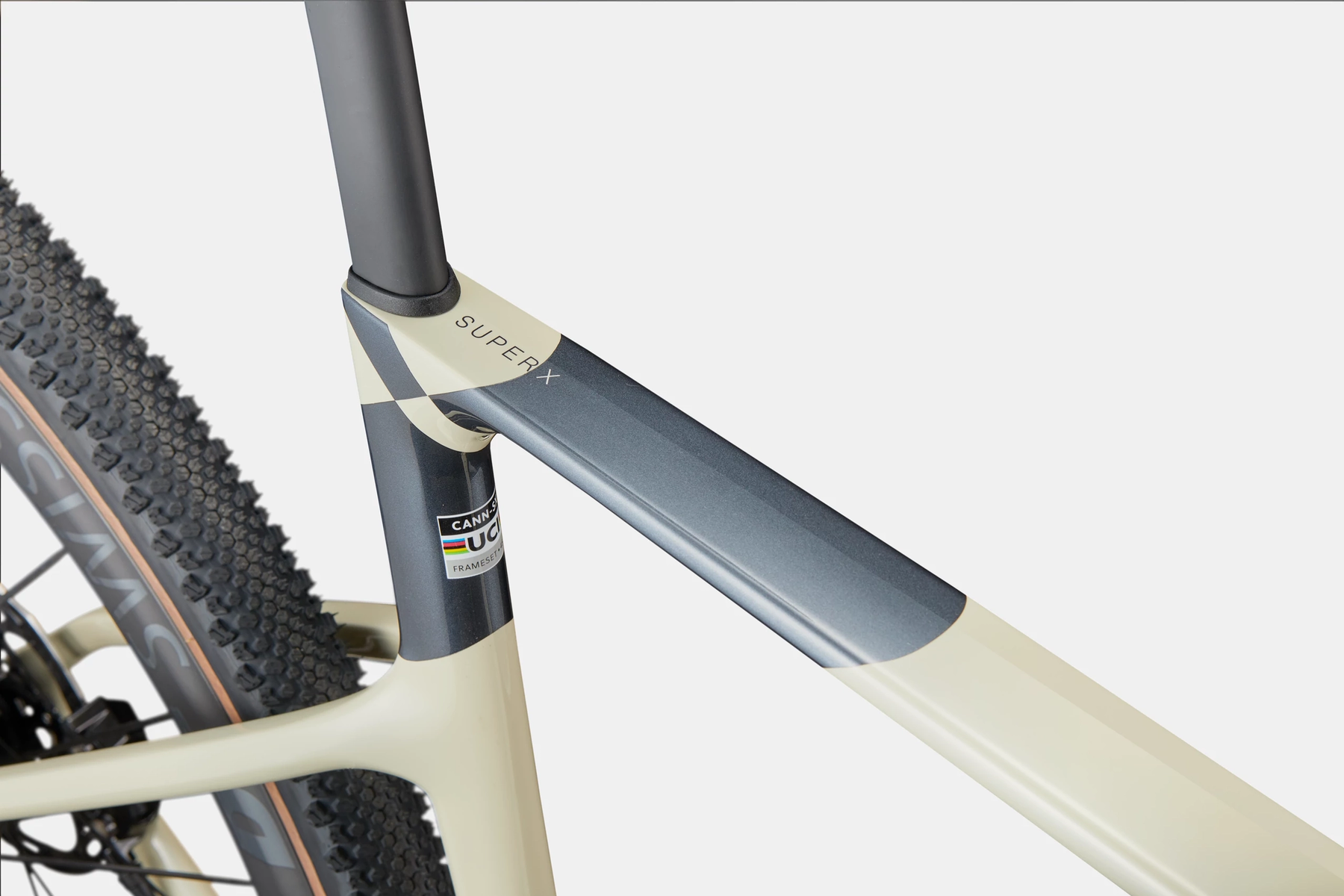

FrameSuperX Carbon, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seatpost binder
-
ForkSuperX Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset
-
HeadsetIntegrated, 1-1/8" - 1.5"
Drivetrain
-

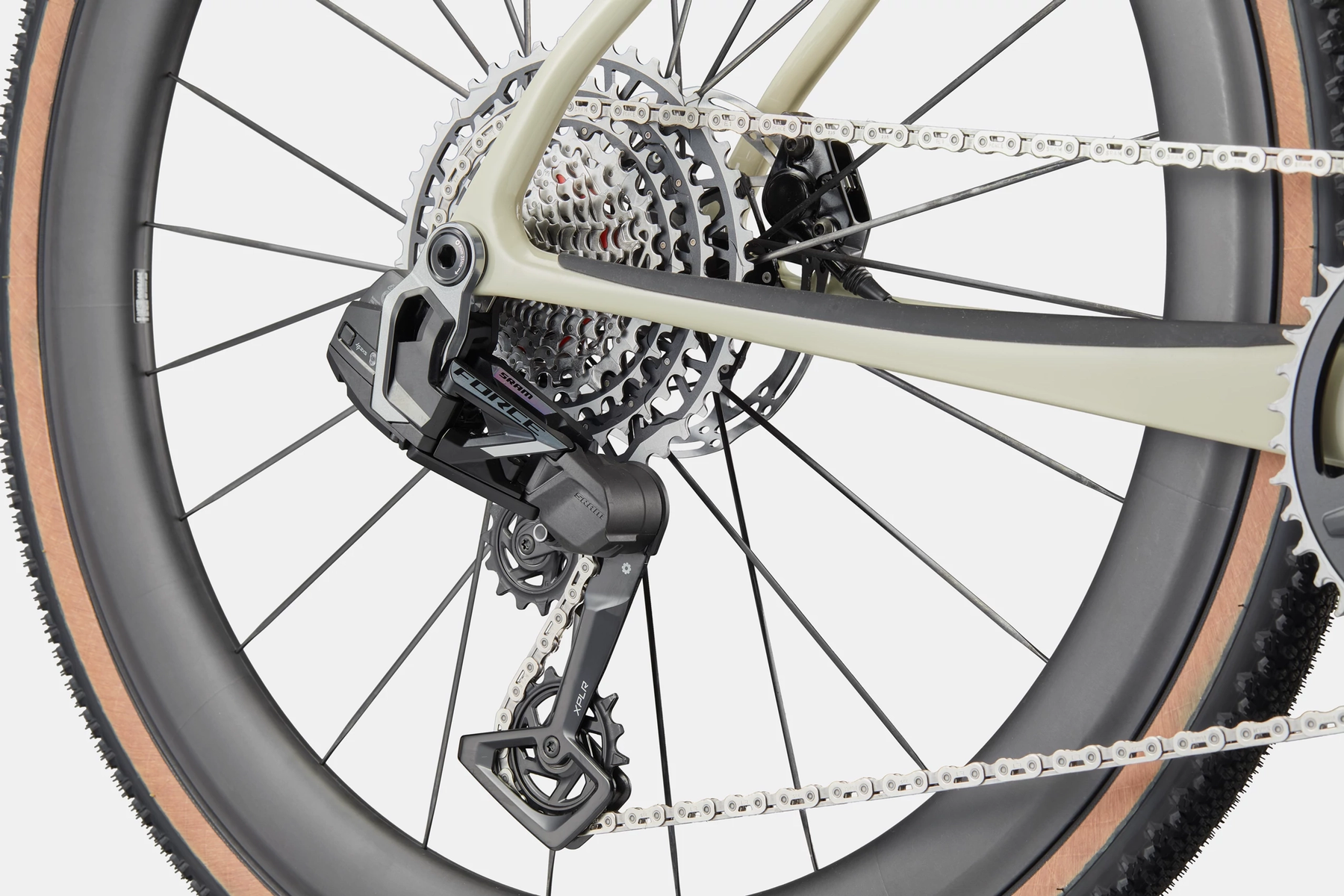

Rear DerailleurSRAM Force XPLR AXS, 13-speed
-

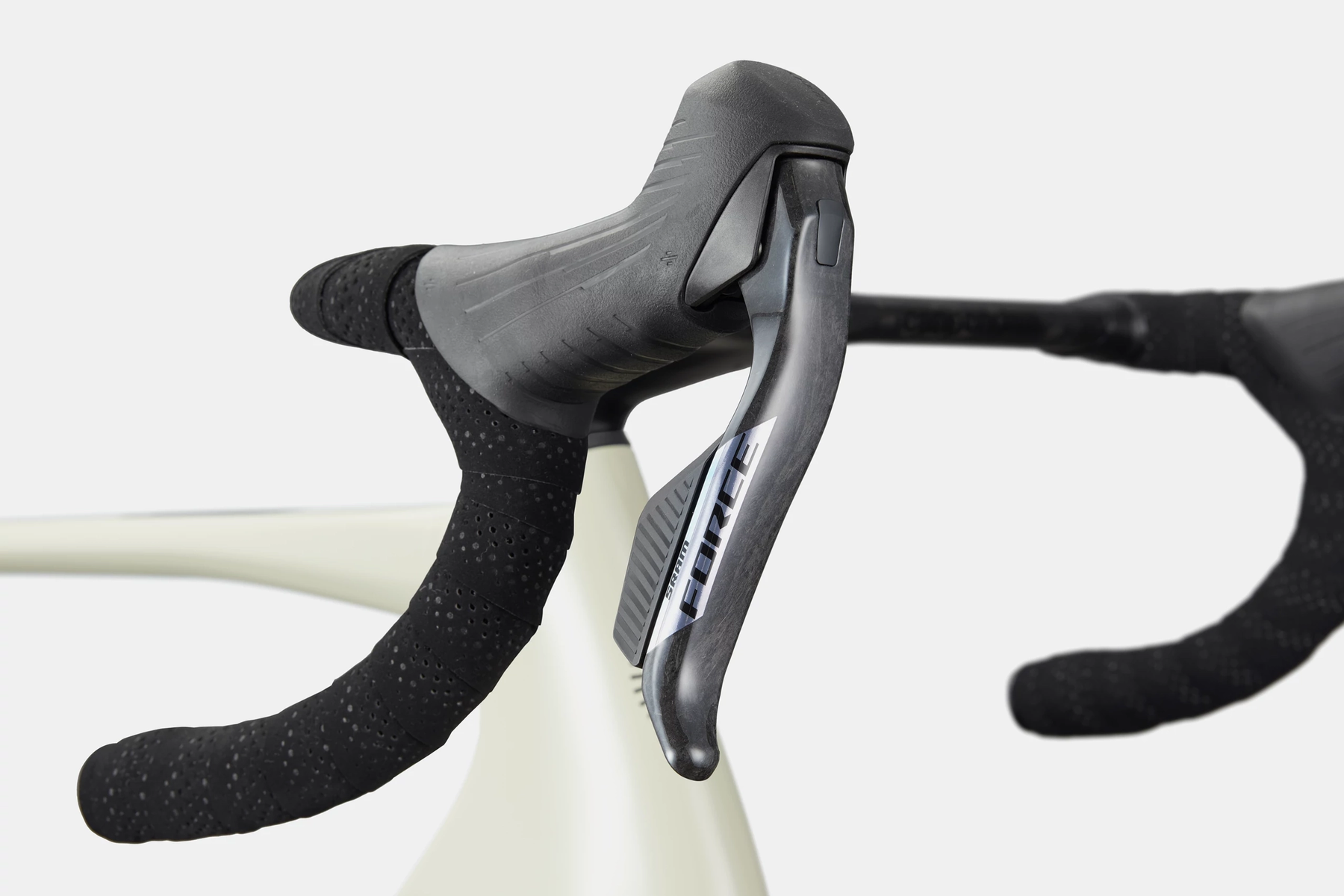

ShiftersSRAM Force AXS, 13-speed
-
ChainSRAM Force 13-speed
-

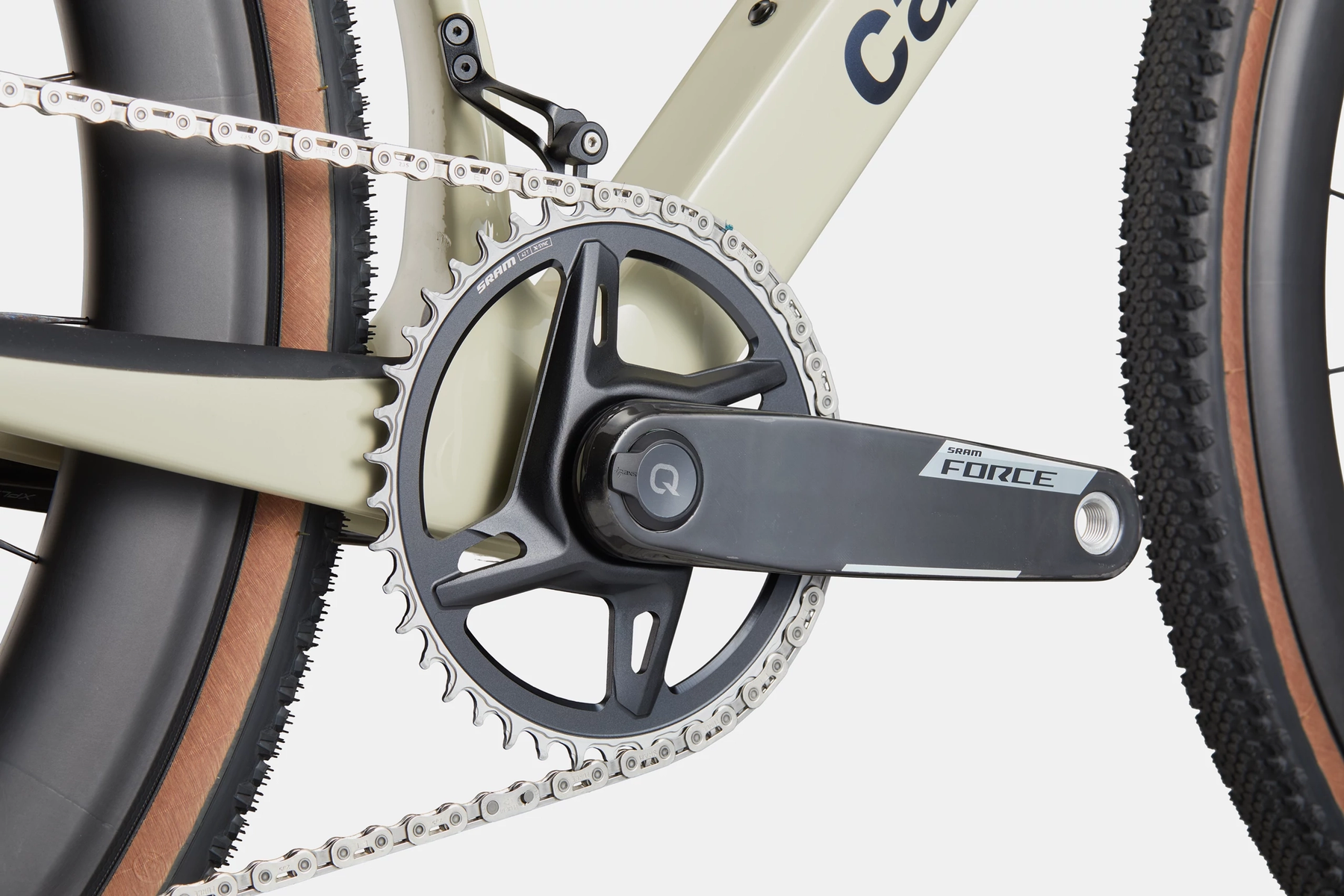

CrankSRAM Force XPLR AXS Wide Power Meter: 165mm (46cm), 170mm (51-56cm), 172.5 (58cm), 175mm (61cm)
-
Rear CogsSRAM Force XPLR XG-1371, 10-46, 13-speed
-
Bottom BracketSRAM DUB BSA Road 68 Wide
Brakes
-
BrakesSRAM Force AXS hydraulic disc, Centerline X 160/160mm centerlock rotors
-
Brake LeversSRAM Force AXS hydraulic disc
Wheels
-
RimsDT Swiss GRC 1400 DICUT, carbon, 24mm inner width, 50mm depth, 24h, tubeless ready
-
SpokesDT Swiss Aero Comp
-
Tire Size40
-
Wheel Size700c
-
HubsDT Swiss 240, centerlock, straight pull - (F) 12x100mm, (R) 12x142mm, Ratchet EXP 36
-
TiresVittoria Terreno T50, 700x40c, tubeless ready
Components
-

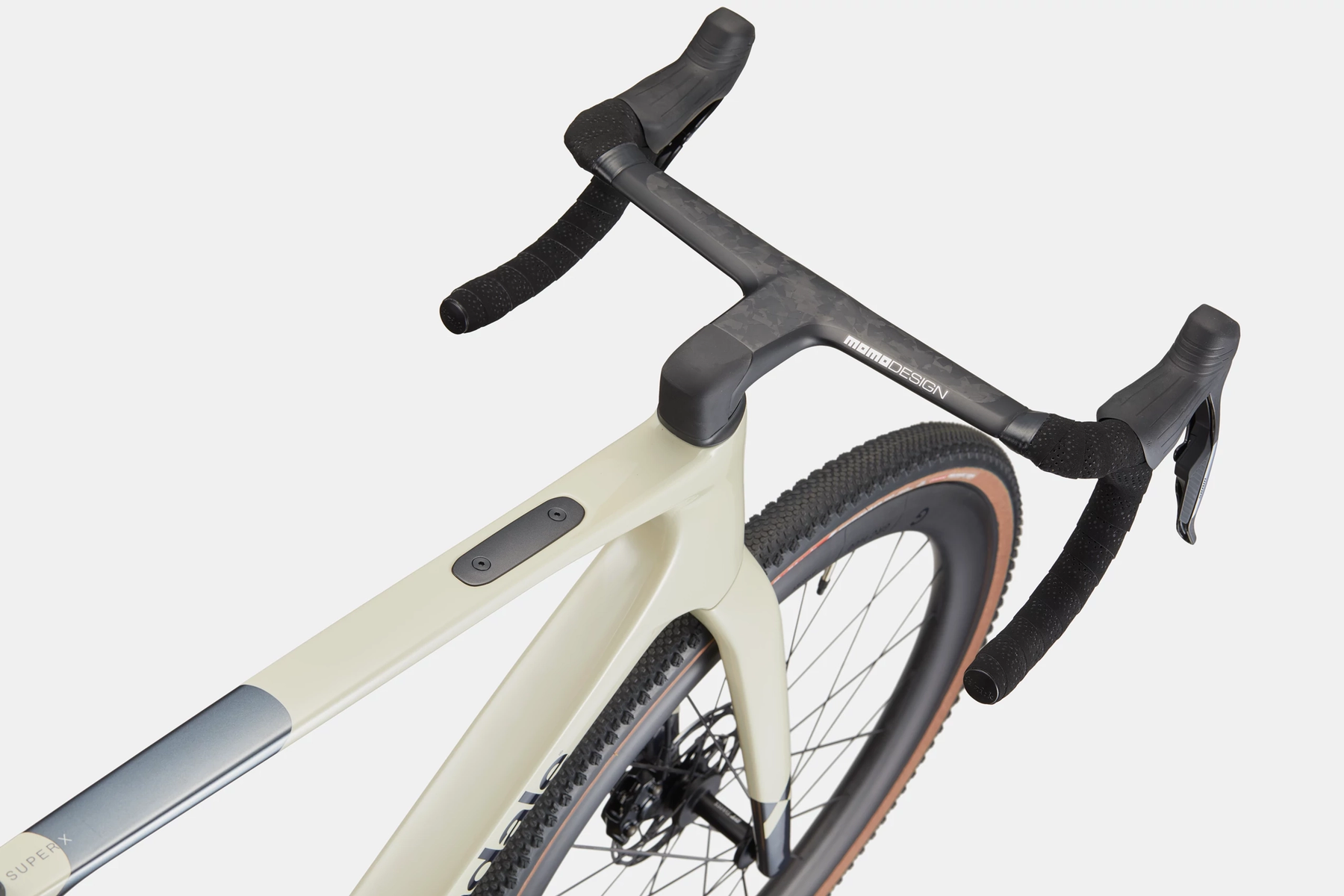

HandlebarCannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing: 90x380mm (46-51cm), 100x400mm (54-56cm), 110x400mm (58cm), 110x420mm (61cm)
-
StemCannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
-
GripsCannondale Bar Tape, 3.5mm
-
SaddleFizik Vento Argo X3, Kium rails, 140mm
-
SeatpostCannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 15mm offset (51-61cm)
Extra
-
Extra 1Tubeless valves, SRAM AXS charger, SystemBar R-One Garmin/Wahoo/Hammerhead computer mount
Please note that, based on component availability and other factors, specifications are subject to change without notice.
