Custom Frame-Mounted Front Rack
Bolted directly to the frame, the integrated rack carries the load without influencing steering. No flop, no sway, no wrestling with weight up front.

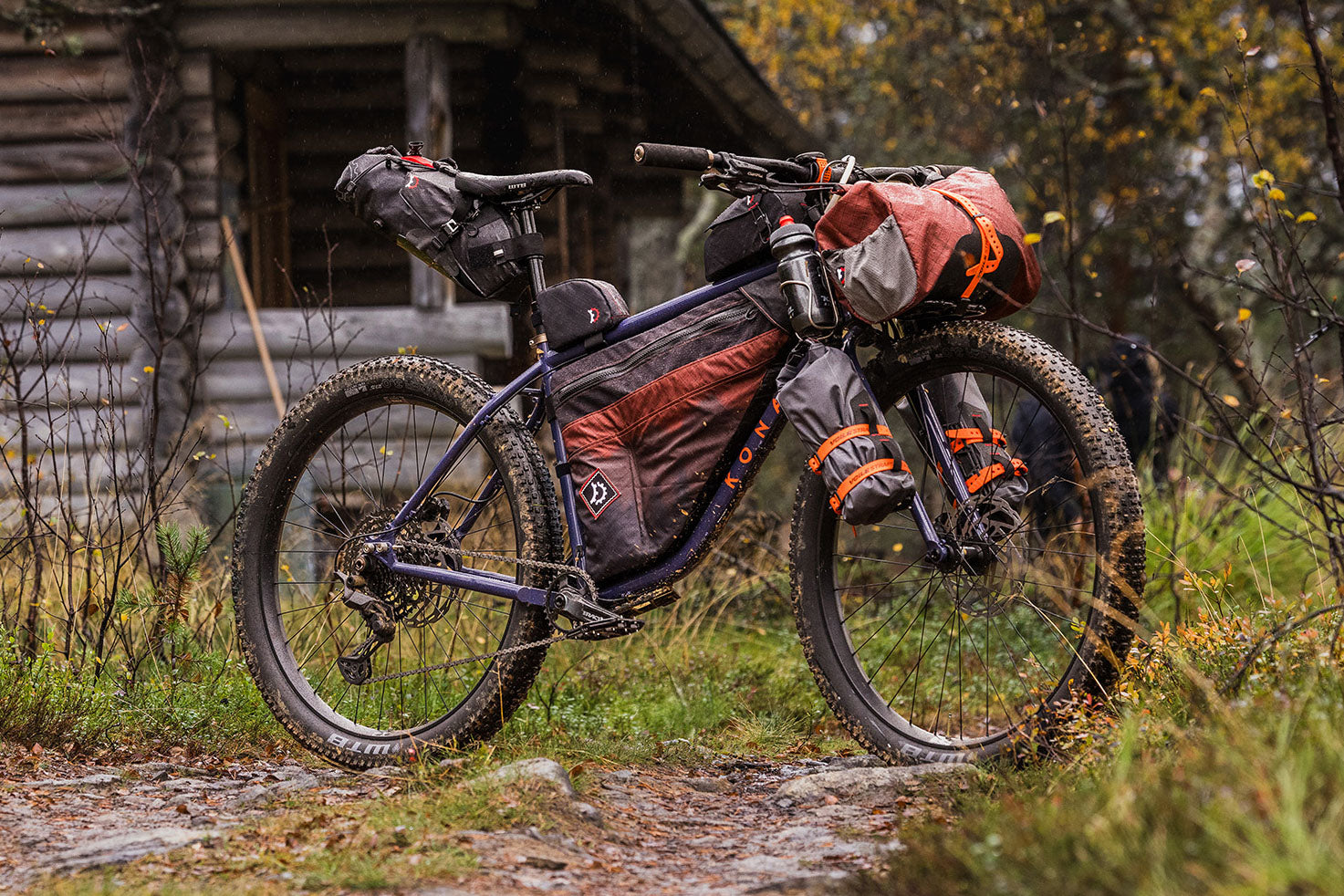

Kona Unity
Expedition Ready. Load Stable. Fully Modular.
Unity
A purpose-built bikepacking platform designed around predictable loaded handling, massive cargo flexibility, modern drivetrain standards, and real-world expedition durability.
Frame Highlights
Built around stability, cargo flexibility, and practical adventure-bike problem solving.
Aftermarket Carrier Compatible
Compatible with popular third-party front and rear carriers, giving you freedom to expand capacity or tune the setup for each mission.
Maximum Front Triangle Space
An oversized front triangle gives you a huge frame bag footprint for water, tools, camera gear, food, or a full bikepacking pantry.
Accessory Mounts Everywhere
Bosses on the top tube, down tube, fork legs, and stays allow modular setups for bottles, cargo cages, tools, and accessories.
UDH, T-Type & Sliding Dropouts
Modern drivetrain compatibility with sliding dropouts for wheel-position tuning or single-speed use in a pinch.
Dropper Friendly
Compatible with long-travel droppers from 170mm to 200mm, so loaded bikepacking does not mean giving up confident descending.
Spec Highlights
Durable, serviceable, and built around long loaded days far from home.
Shimano XT Linkglide 11-Speed
Built for longevity and smooth shifting under load, Linkglide shines when your bike weighs as much as your weekend pack.
RaceFace Aeffect Cranks
A tough crankset paired with a steel 28T direct-mount ring for low gearing, durability, and loaded climbing capability.
Tektro Gemini 4-Piston Brakes
Serious stopping power with 2.3mm thick, 203mm rotors for heat management and control when descending with gear.
DT 370 Hubs, 36T Star Ratchet
A proven, serviceable hub platform with upgraded 36T engagement for better responsiveness on technical climbs.
WTB KOM Tough i40 Rims
Wide, burly rims that support big tires and heavy loads without compromising reliability.
WTB Ranger TCS Tough Tires
Big volume, real traction, and a casing that is designed to survive loaded travel over unpredictable terrain.
Built For Heavy Missions
Unity is not chasing a minimalist fantasy. It is built for real bikepacking loads, technical terrain, weather, steep climbs, and the kind of trips where reliability matters more than clever marketing copy.
FAQ
Compatibility, cargo, tire clearance, drivetrain, and setup details.
How many mounting bosses do the frame and fork have?
Frame: 20 mounting points
Fork: 11 mounting points
Front rack: 12 mounting points
This allows a wide range of cargo, bottle, and accessory configurations.
Is the handling optimized for loaded setups?
The Unity is designed to handle front-loaded, rear-loaded, or balanced setups effectively, with geometry and stiffness intended to stay stable across load configurations.
What is the lowest gear ratio?
The Unity ships with a 28T front chainring and 50T cassette, delivering an approximately 0.56 gear ratio.
This is ideal for steep climbs under load. Final rollout depends on tire size and drivetrain choice.
Can the Unity be run single-speed if the derailleur fails?
Yes.
Can I run a 29 inch rear wheel?
Yes, provided it is paired with a lower-volume tire such as a 29 x 2.5 inch tire to maintain proper clearance.
What is the largest tire size?
Tire clearance varies by brand and casing, but Kona recommends staying within these maximum sizes:
29 x 3.0 inch
27.5 x 3.0 inch
What is the recommended maximum front rack load?
6 kg / 13.2 lbs.
Can I run a rear rack with full tire clearance?
Yes, but final clearance may vary depending on rack design.
Can I run a suspension fork?
No. The Unity is not compatible with front suspension forks because they would interfere with the front rack and cable routing and could cause damage.
What is the maximum dropper post travel?
Small: 125mm
Medium: 150mm
Large: 175mm
XL: 200mm
Seat bag clearance can be affected when the dropper is fully lowered, depending on post and bag size.
Are the cable ports sealed?
All cables are routed externally, except the dropper post. Sealing plugs for the dropper routing are included in the small parts kit.
What is the largest brake rotor?
203mm rotors, 6-bolt, up to 2.3mm rotor thickness.
More Info
One last visual overview of the Unity platform.
