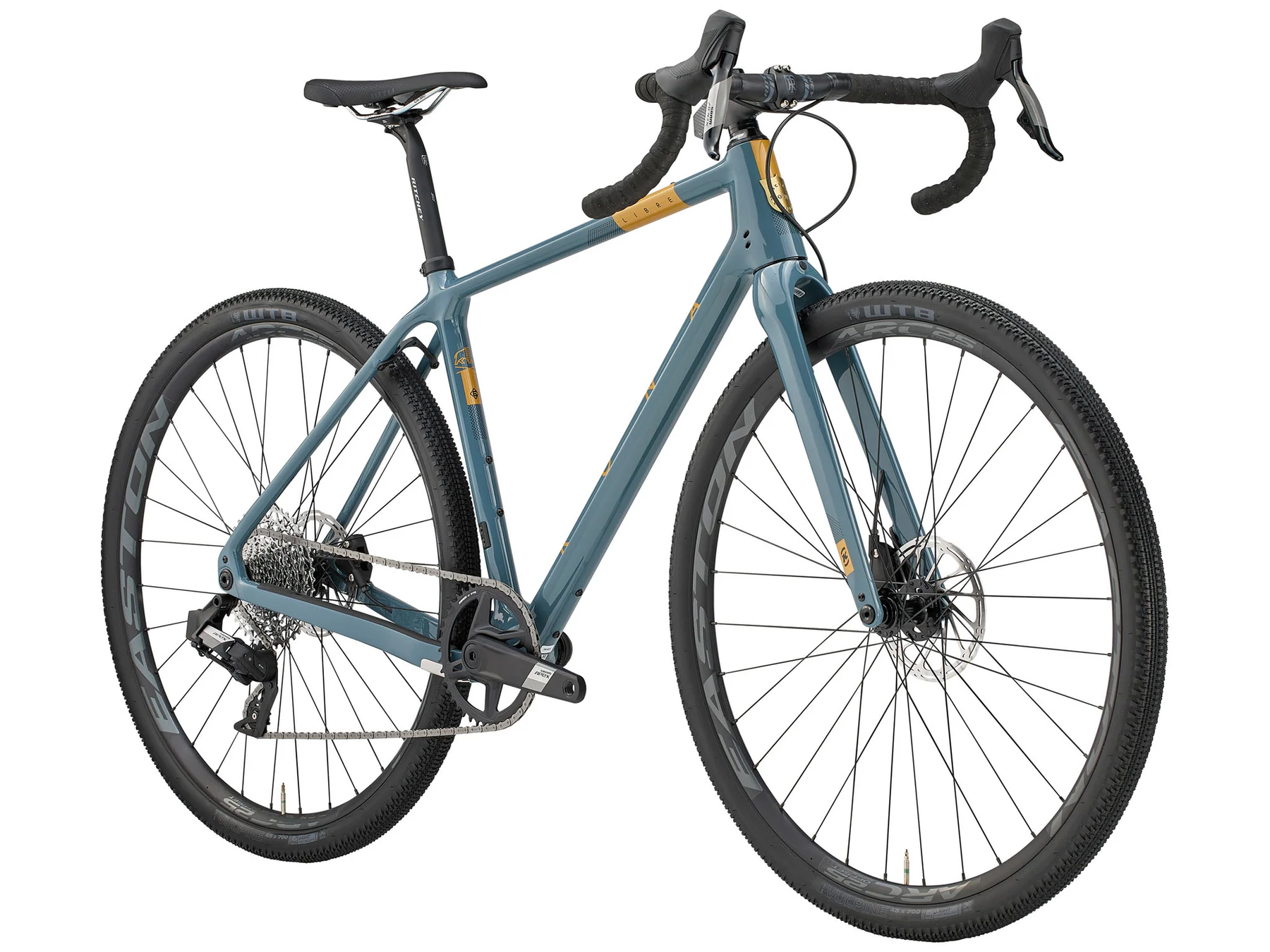

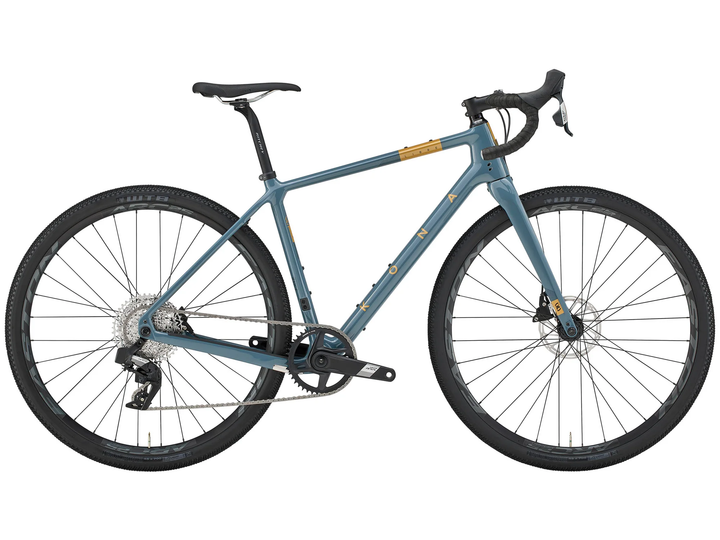

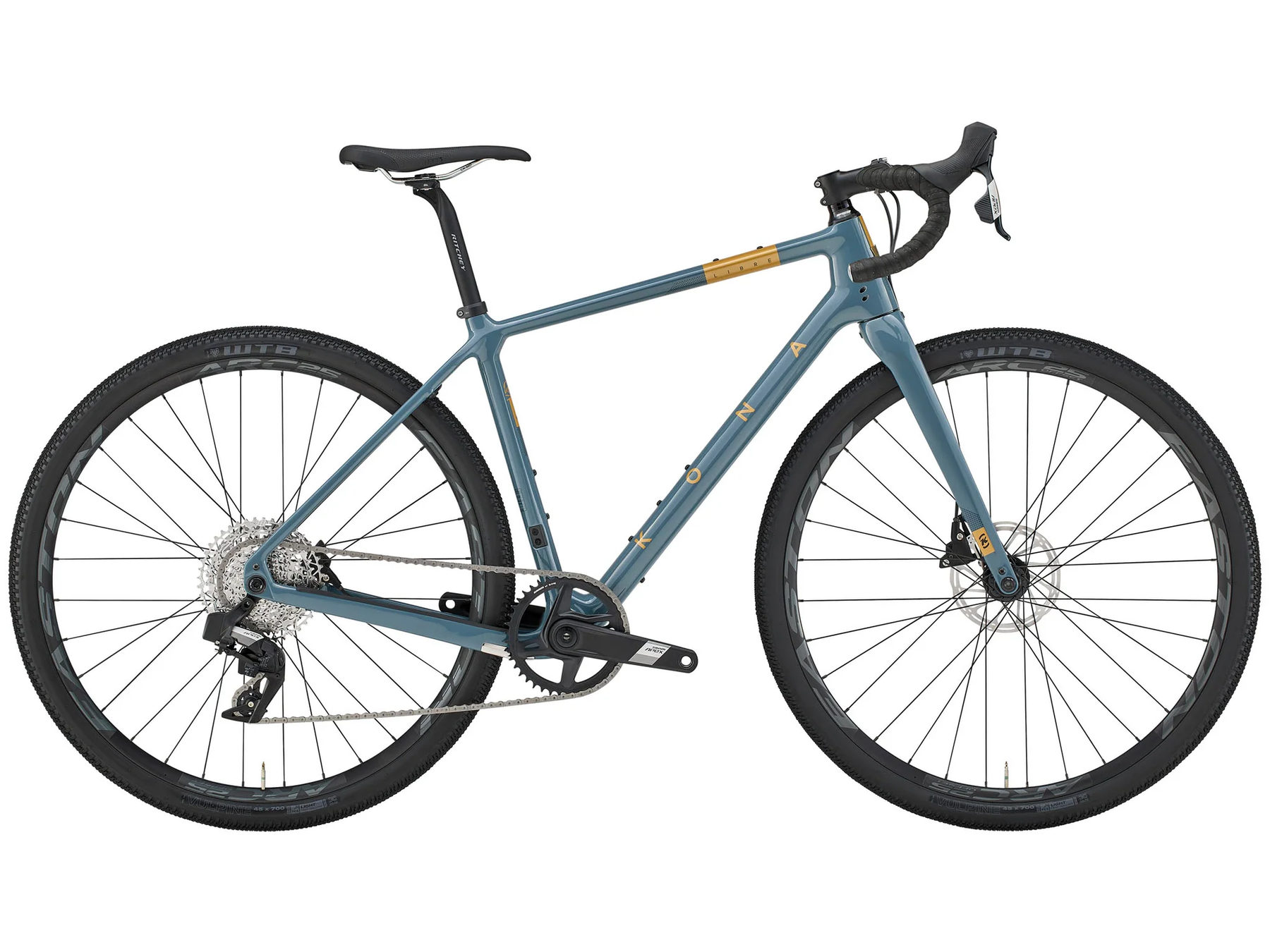

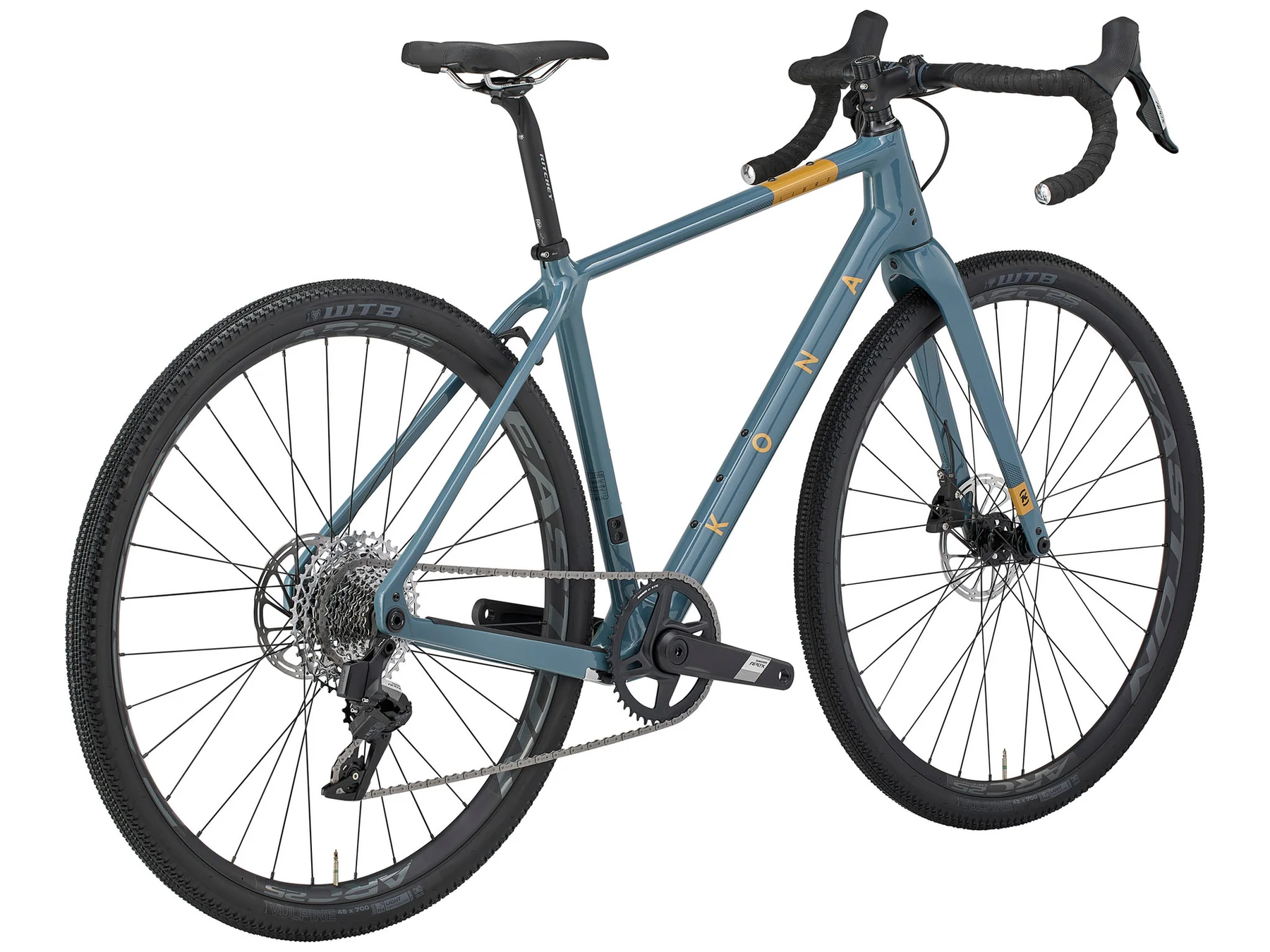

Kona Libre Carbon Force 1X

$4,999.00 $4,249.00 Save $750.00
/
Color
Size
  • In stock at warehouse, ready to ship
  • Backordered, shipping soon

This bike is available for order.
Use the contact form below, give us a call, or visit the shop to order!

Somewhere between the stable but often sluggish beast of burden world of touring and the highly strung, tightly focused realm of road performance, there exists a need for a drop bar bike that can grind out mile after mile of washboard gravel and still snap to attention when you stomp on the pedals. It needs to be fast, with geometry relaxed and composed enough to eat all that gravel without a twitch, but still sharp enough to carve turns on pavement with authority. Build it out of carbon fiber, so it’s super light, but plenty strong as well. Festoon it with bosses for lots of water bottles and bento mounts, but don’t go crazy. Lots of tire clearance, just in case. Sharp, but smooth. Fast, but comfortable. Gravel all day, pavement whenever you want.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Gravel / Drop Bar / Urban

Use the calculator to find a recommended size range, then compare the rider height ranges on the sliding bar graph.

Find your recommended size

Height Range Graph

4'10"–5'1"Rove 48cm / Libre 50cm / Sutra 48cm / CoCo XS
147CM155CM
5'0"–5'3"Rove 48–50cm / Libre 50cm / Sutra 48–50cm / Dews Small / CoCo Small
152CM160CM
5'2"–5'7"Rove 48–52cm / Libre 50–52cm / Sutra 48–52cm / Small–Medium
157CM170CM
5'6"–5'10"Rove 52–54cm / Libre 52–54cm / Sutra 52–54cm / Medium
168CM178CM
5'9"–6'0"Rove 52–56cm / Libre 54–56cm / Sutra 54–56cm / Medium–Large
175CM183CM
5'11"–6'2"Rove 54–58cm / Libre 54–58cm / Sutra 54–58cm / Large–XL
180CM188CM
6'1"–6'5"Rove 56–58cm / Libre 58cm / Sutra 56–58cm / Dews XL
185CM196CM
Height/Inches Height/Metric Inseam/Inches Inseam/Metric Rove Libre Sutra/Ouroboros Dews CoCo
4'10"-5'1" 147-155cm 24”-27” 61-69cm 48cm 50cm 48cm N/A XS
5'0"-5'3" 152-160cm 26"-29" 66-74cm 48-50cm 50cm 48-50cm Small Small
5'2"-5'7" 157-170cm 27"-30" 69-76cm 48-52cm 50-52cm 48-52cm Small, Medium Small, Medium
5'6"-5'10" 168-178cm 29"-31" 74-79cm 52-54cm 52-54cm 52-54cm Medium Medium
5'9"-6'0" 175-183cm 30"-33" 76-84cm 52-56cm 54-56cm 54-56cm Medium, Large Medium, Large
5'11"-6'2" 180-188cm 32"-35" 81-89cm 54-58cm 54-58cm 54-58cm Large, XL Large
6'1"-6'5" 185-196cm 33"-36" 84-91cm 56-58cm 58cm 56-58cm XL N/A

Sizing is a starting point. Fit can vary based on proportions, riding style, flexibility, and component setup.



Geometry

All measurements are listed in millimeters unless otherwise noted.

70.5° Head Tube Angle
72.5–75° Seat Tube Angle
435mm Chainstay Length
# Measurement 48 50 52 54 56 58
1 ST Length 440 460 480 510 540 570
2 TT Length 527 542 556 573 590 610
3 Reach 380 385 390 395 400 405
4 Stack 550 565 580 600 620 650
5 Standover 733 752 770 799 825 855
6 HT Angle 70.5° 70.5° 70.5° 70.5° 70.5° 70.5°
7 HT Length 109 125 140 165 186 218
8 ST Angle 75° 74.5° 74° 73.5° 73° 72.5°
9 CS Length 435 435 435 435 435 435
10 BB Drop 75 75 75 72 72 72
11 BB Height 285 285 285 288 288 288
12 Wheelbase 1030 1040 1050 1064 1076 1092
13 Front Center 606 616 626 639 651 667
14 Fork Length 410 410 410 410 410 410
15 Fork Offset 50 50 50 50 50 50
Bike Geometry

Geometry data provided by Kona. All specifications are subject to change without notice.

Specifications

Frame Kona Carbon
Sizes 48, 50, 52, 54, 56, 58
Rear Shock n/a
Fork Kona Libre Carbon Flat Mount Disc

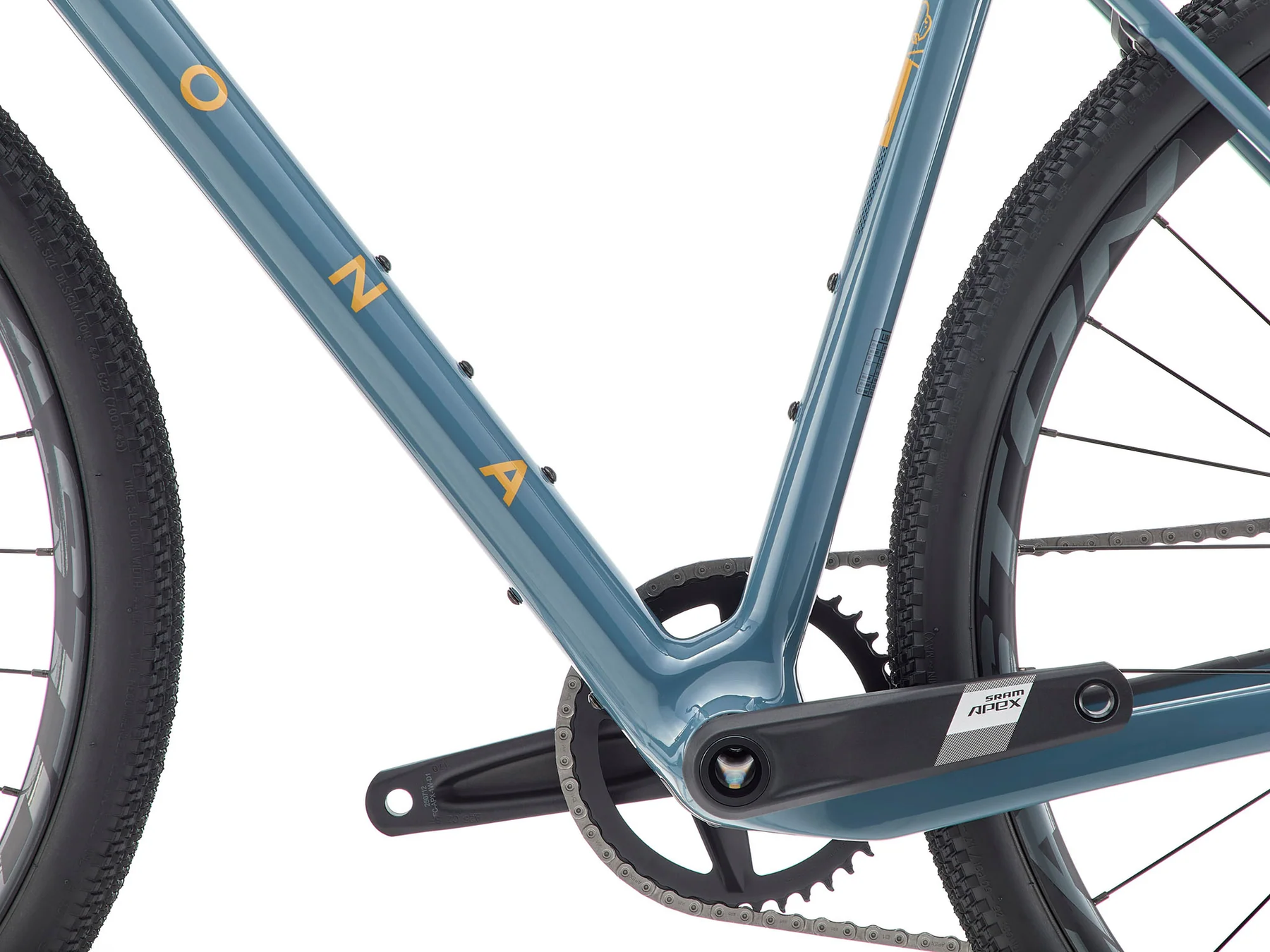

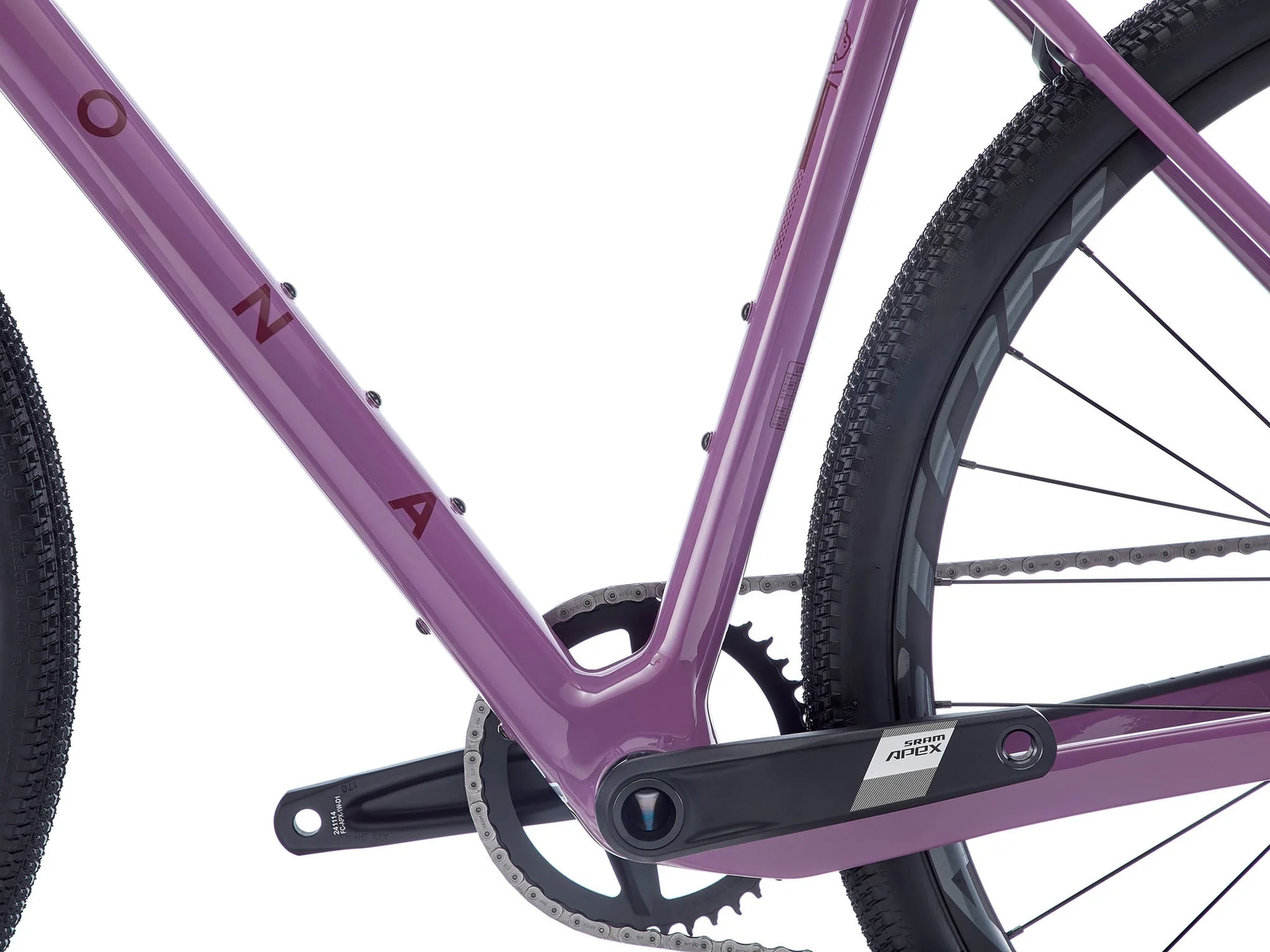

Crankset SRAM Apex 1 42T / Length 48–50 165mm / 52–54 170mm / 56–58 172.5mm
Bottom Bracket SRAM PF86.5 DUB Wide
Pedals n/a
Chain SRAM Apex
Cassette SRAM Apex XPLR 11–44T 12-speed
Chainguide n/a
Front Derailleur n/a
Rear Derailleur SRAM Apex XPLR AXS
Shifters SRAM Apex XPLR AXS
Brake Calipers SRAM Apex
Front Brake Rotor SRAM Centerline 160mm 6B
Rear Brake Rotor SRAM Centerline 160mm 6B
Brake Levers SRAM Apex
Headset FSA Orbit No.57E ZS44/ZS56

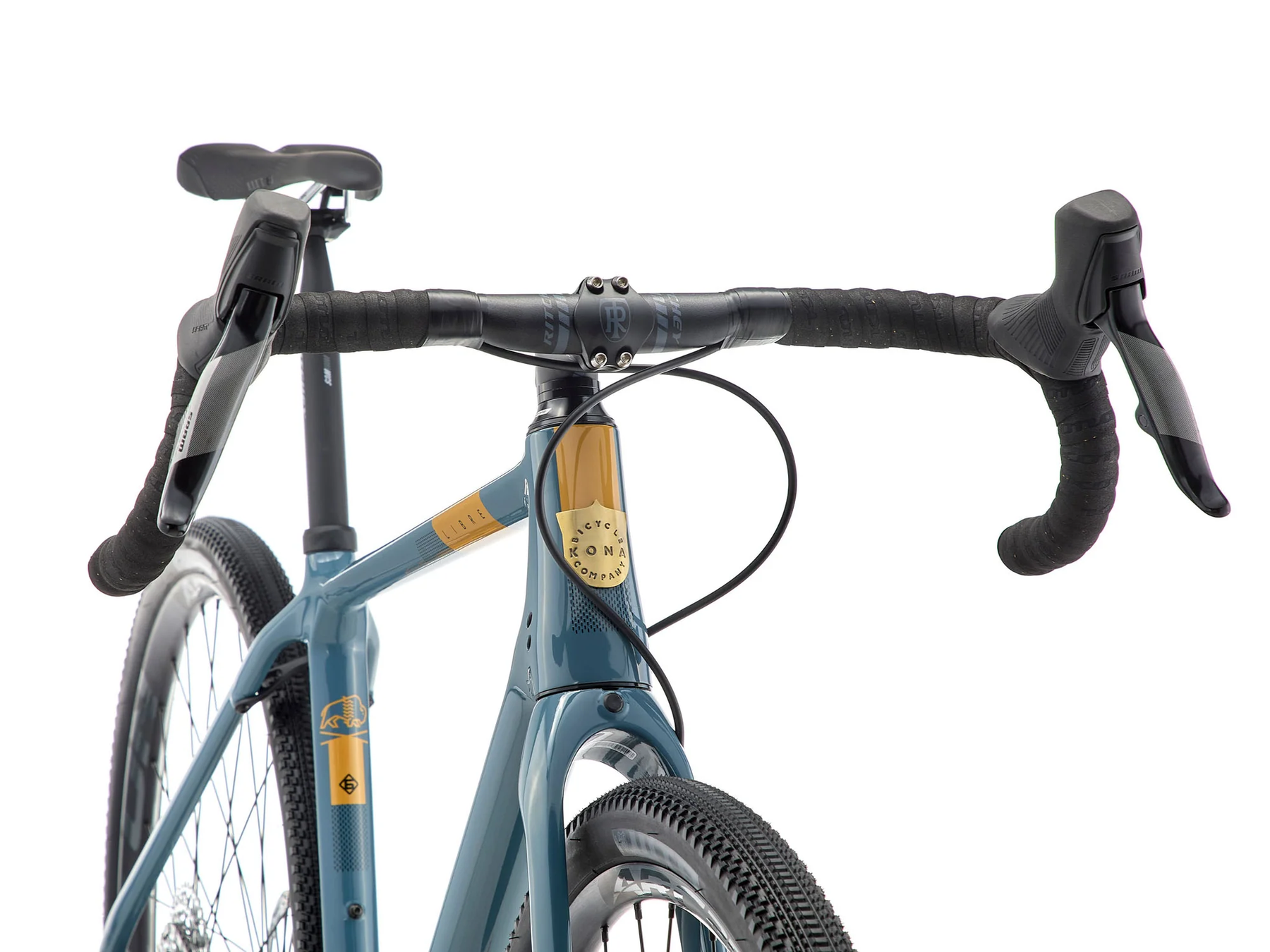

Handlebar Ritchey Butano Comp / 18° flare / 5° back / Width 48–50 420mm / 52 440mm / 54–58 460mm
Stem Ritchey 4-Axis-44 Comp 31.8mm / Rise 6º / Length 48–50 60mm / 52–54 70mm / 56–58 80mm
Seatpost Ritchey Link 20 WCS 27.2mm / 350mm
Seat Clamp Kona Clamp 31.8mm
Grips Kona Cork Tape
Saddle WTB SL8
Front Hub Formula 12x100mm
Rear Hub Formula 12x142mm HG
Spokes Stainless 2.0mm Black
Rims Easton ARC Offset 25 700c 32h
Front Tire WTB Vulpine TCS Light 700x45c
Rear Tire WTB Vulpine TCS Light 700x45c

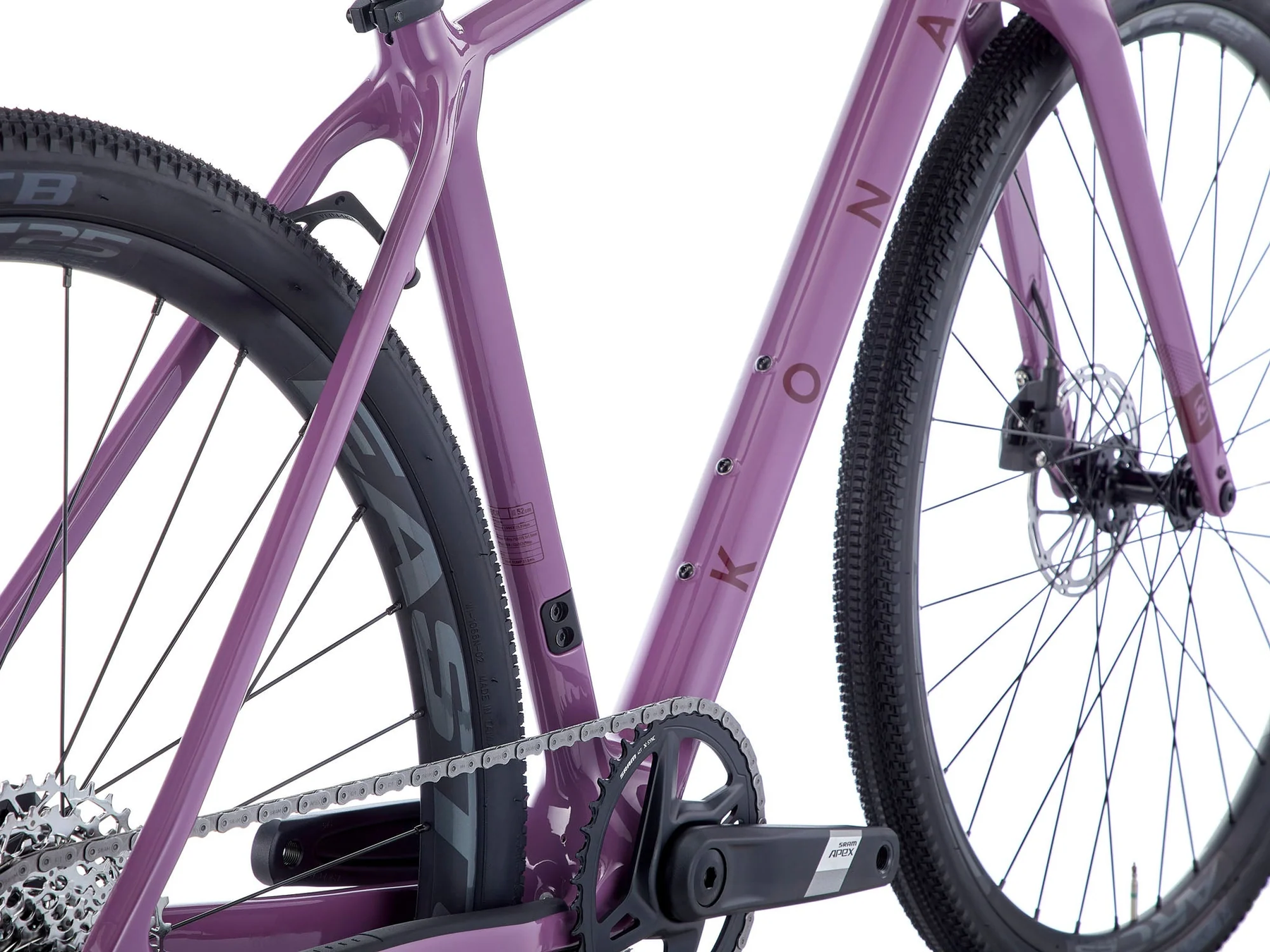

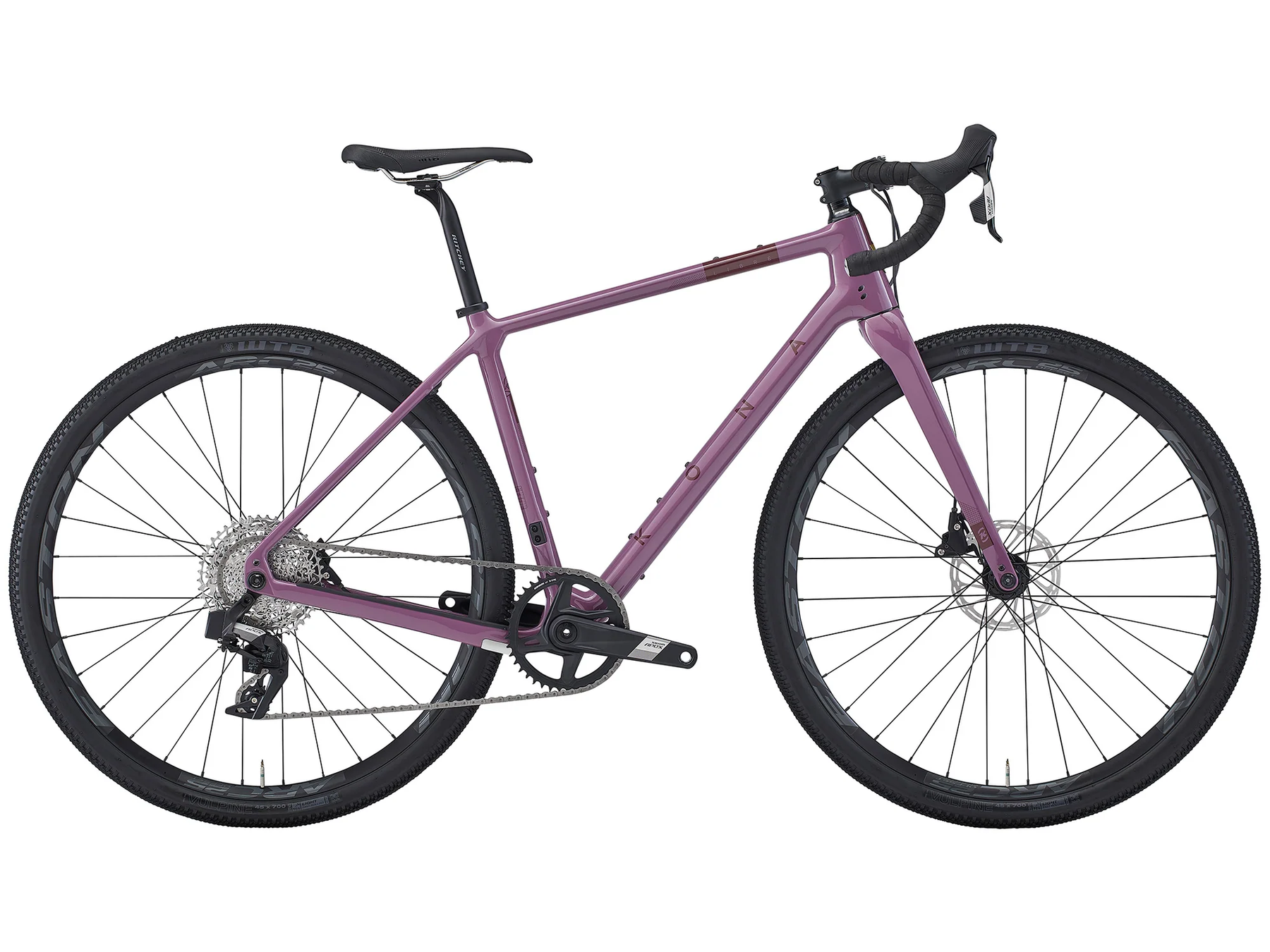

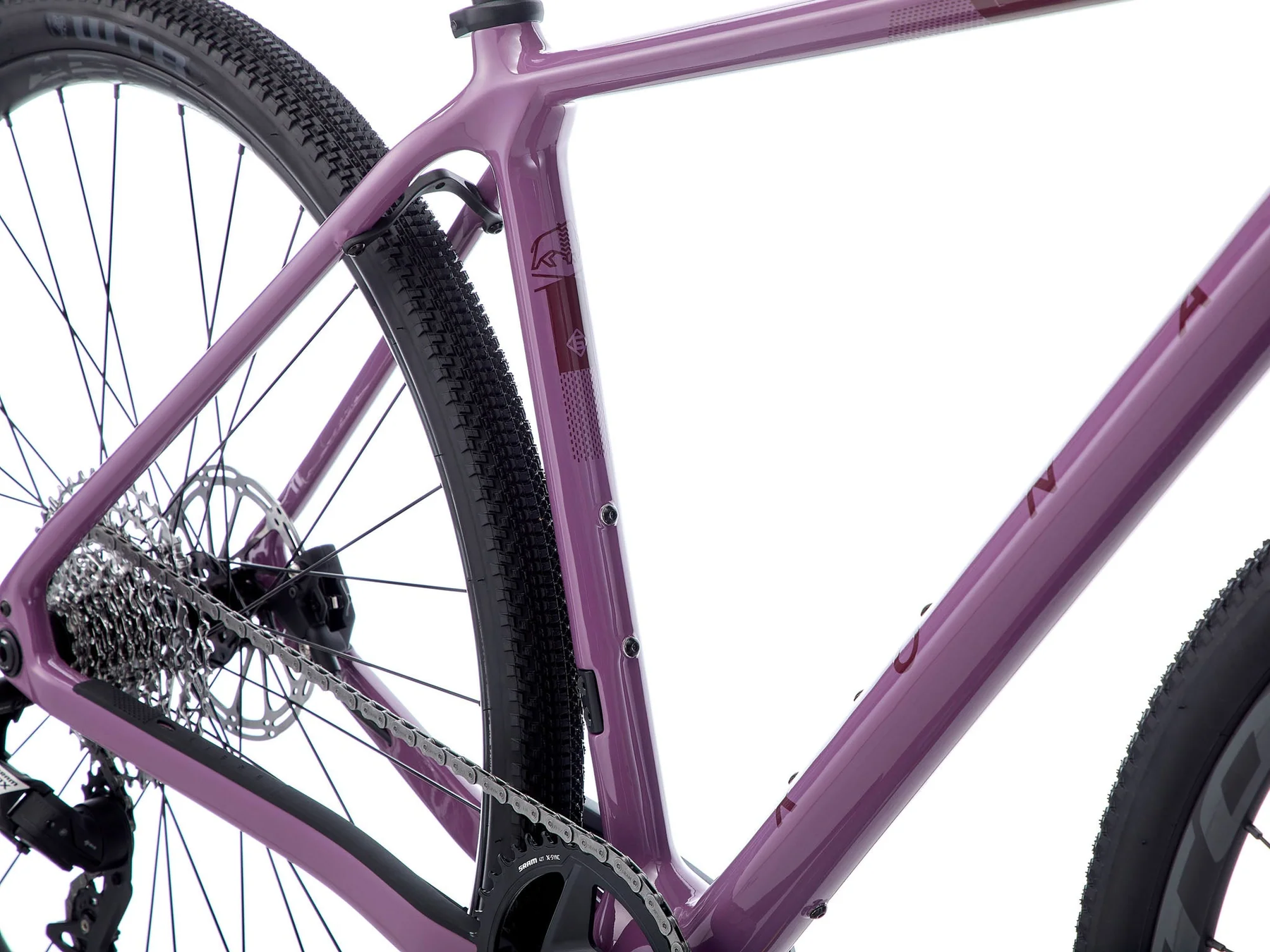

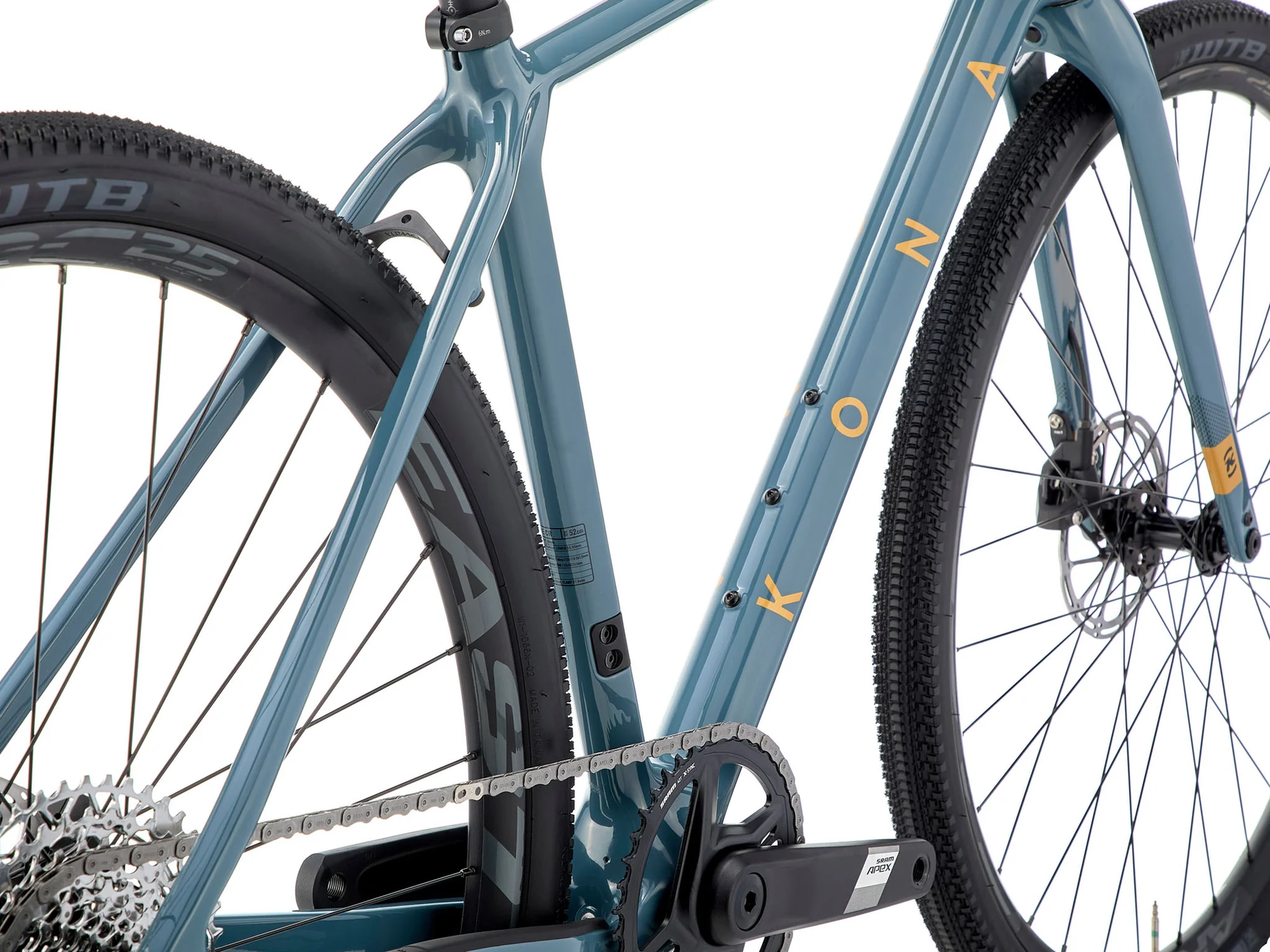

Paint Color Gloss Mauve w/ Dark Crimson Decals or Gloss Slate Blue w/ Metallic Gold & Black Decals
Extras AXS EP Power Pack

All specifications are subject to change without notice.
