Details |
Platform |
SuperSix EVO |
Model Name |
SuperSix EVO 1 |
Model Code |
C11035U |
Frameset |
Frame |
SuperSix EVO Carbon, integrated cable routing w/ Switchplate, 12x142 Syntace thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense compatible |
Fork |
SuperSix EVO Carbon, integrated crown race, 12x100mm Syntace thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm) |
Headset |
Integrated, 1-1/8" - 1-1/4" |
Drivetrain |

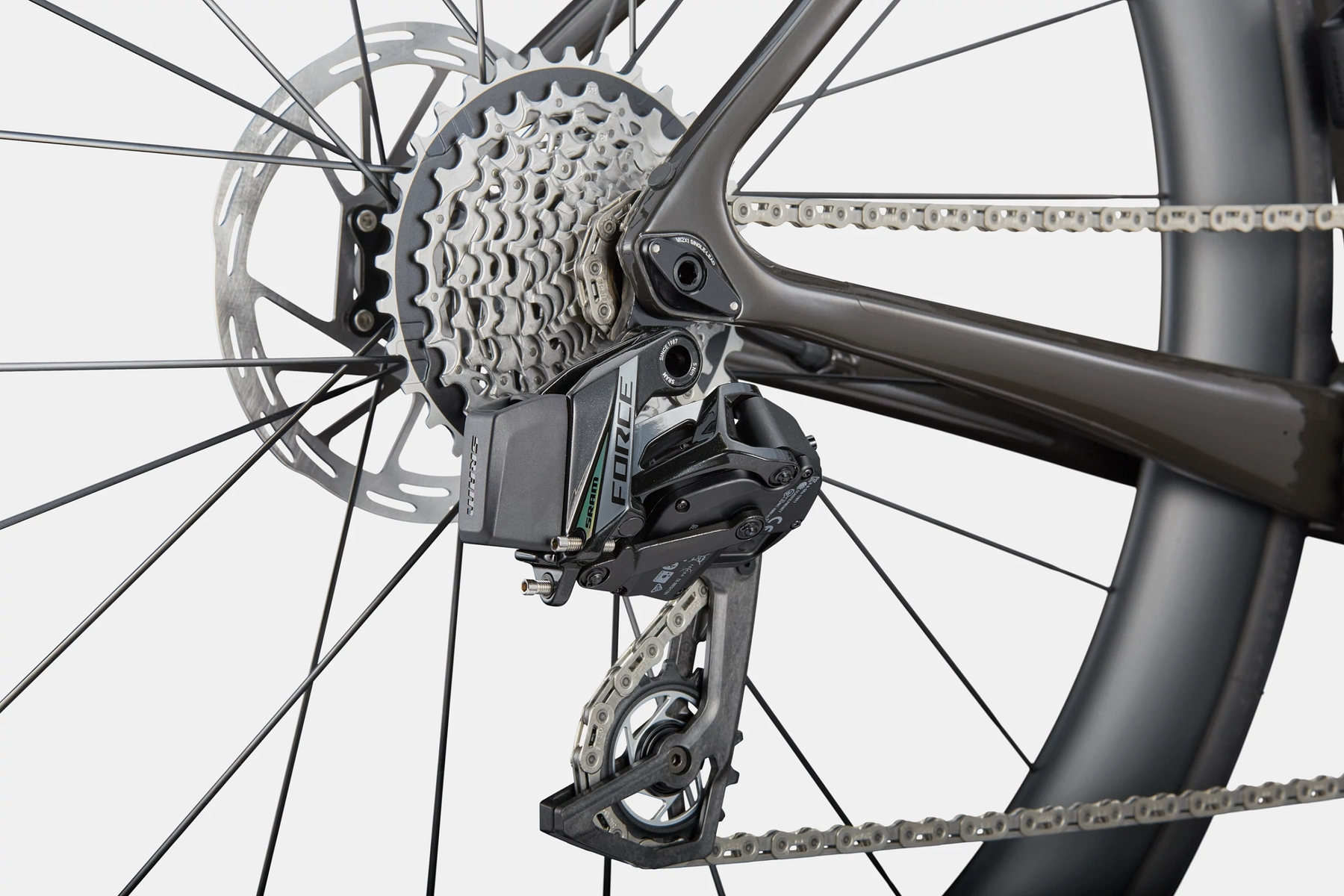

Rear Derailleur |
SRAM Force AXS |
Front Derailleur |
SRAM Force AXS, braze-on |

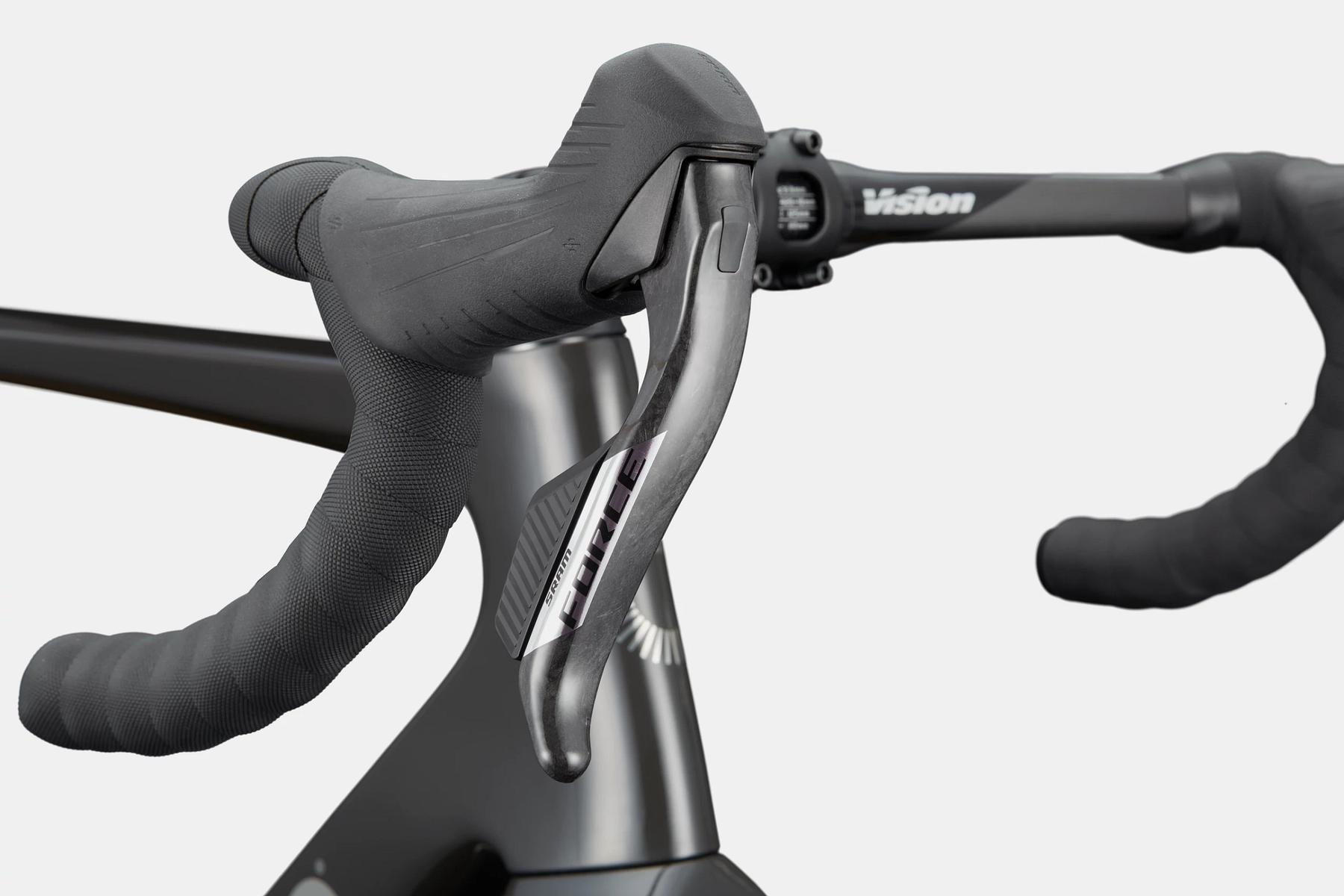

Shifters |
SRAM Force AXS, 12-speed |
Chain |
SRAM Force, 12-speed |

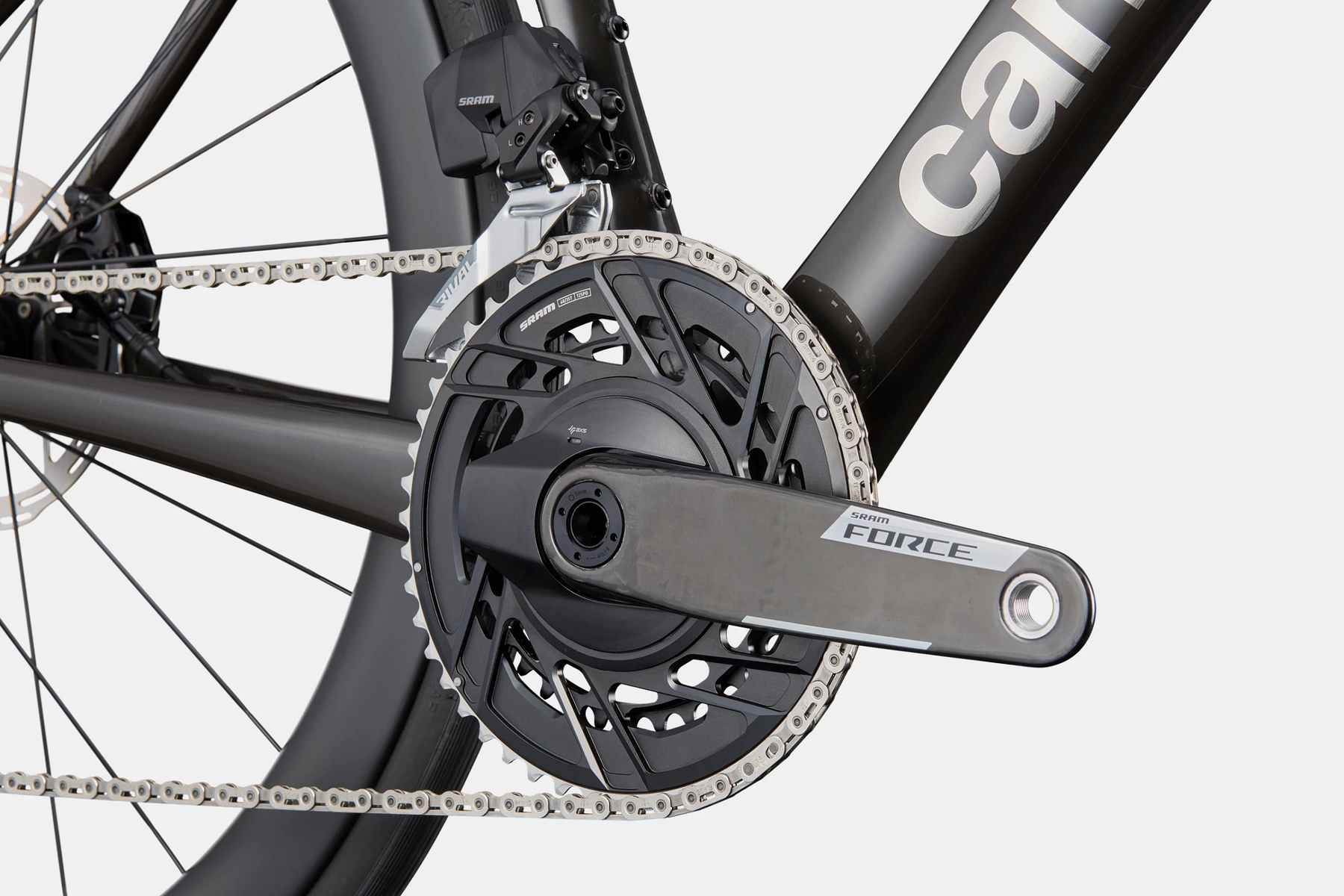

Crank |
SRAM Force AXS Power Meter, 48/35 |
Rear Cogs |
SRAM Force XG-1270, 10-33, 12-speed |
Bottom Bracket |
SRAM DUB BSA |
Brakes |
Brakes |
SRAM Force AXS hydraulic disc, 160/160mm PaceLine centerlock rotors |
Brake Levers |
SRAM Force AXS hydraulic disc |
Wheels |
Front Hub |
HollowGram, sealed bearing 12x100mm centerlock |
Rear Hub |
HollowGram, 12x142mm centerlock w/ DT Swiss 240 internals |
Rims |
HollowGram R-S 50, Carbon, 20h front, 24h rear, 50mm deep, 21mm inner width, tubeless ready |
Spokes |
Formula Grand Forza, Double Butted, straight pull |
Tire Size |
28 |
Wheel Size |
700c |
Tires |
Vittoria Corsa N.EXT, 700x28c, tubeless ready |
Front Tire |
Vittoria Corsa N.EXT, 700x28c, tubeless ready |
Rear Tire |
Vittoria Corsa N.EXT, 700x28c, tubeless ready |
Components |

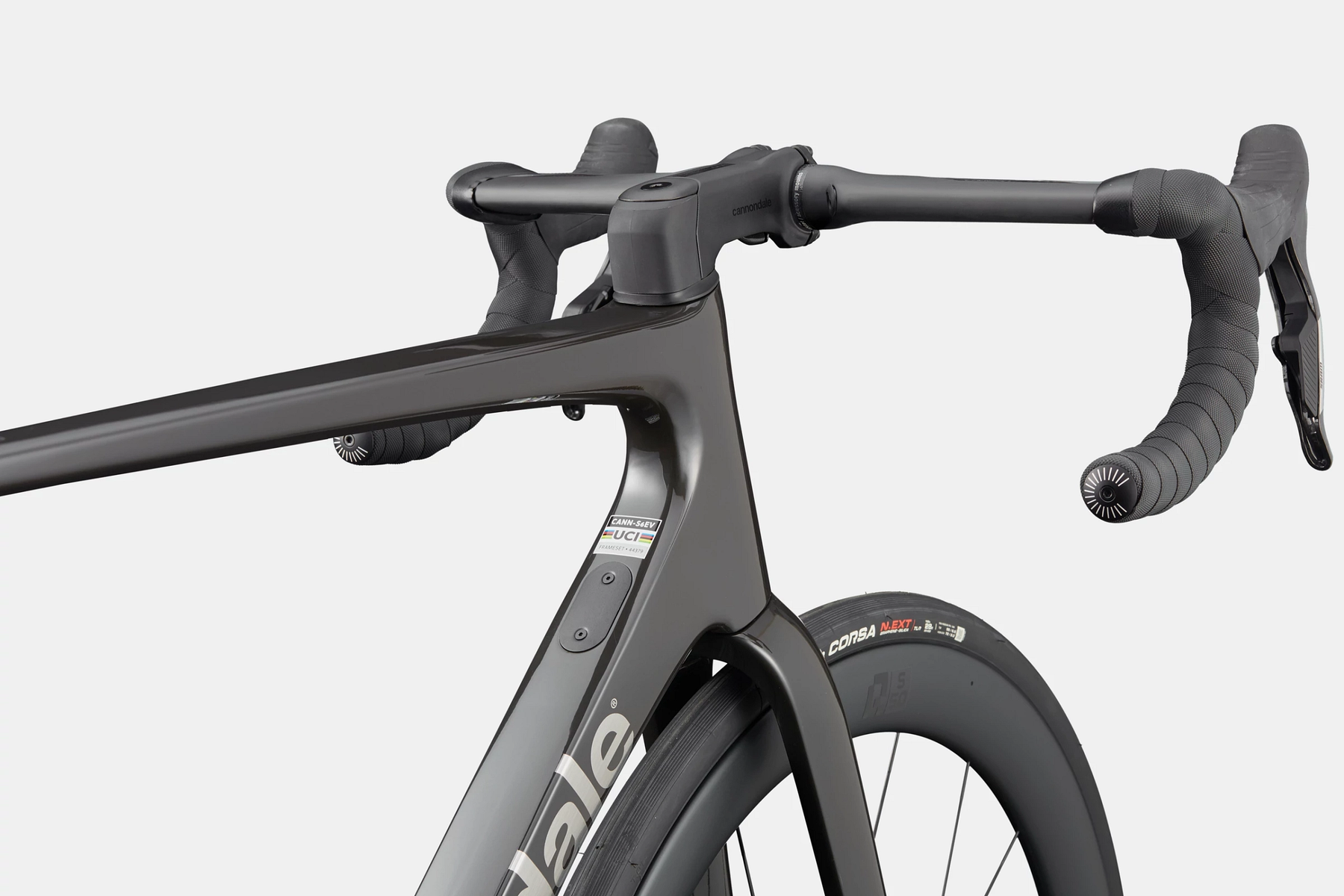

Handlebar |
Vision Trimax Carbon Aero |
Stem |
Cannondale C1 Conceal, Alloy, 31.8, -6° |
Grips |
Cannondale Bar Tape, 3.5mm |
Saddle |
Prologo Dimension TiRox NDR |

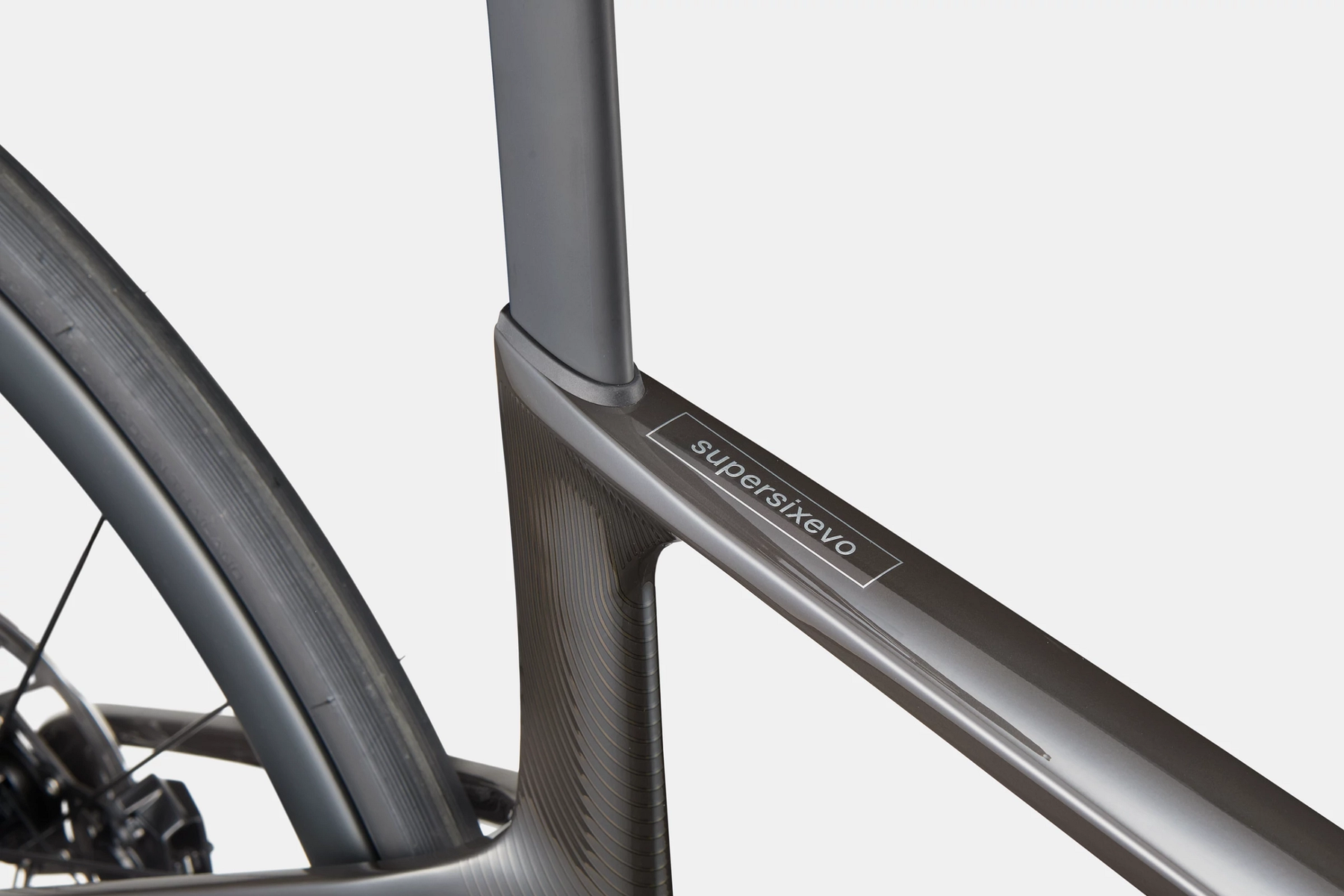

Seatpost |
Cannondale C1 Aero 40 Carbon, 0mm offset (44-48cm), 20mm offset (51-61cm) |
Extra |
Model Code Reference |
C11035U |
