| Platform |
Topstone Alloy |
| Model Name |

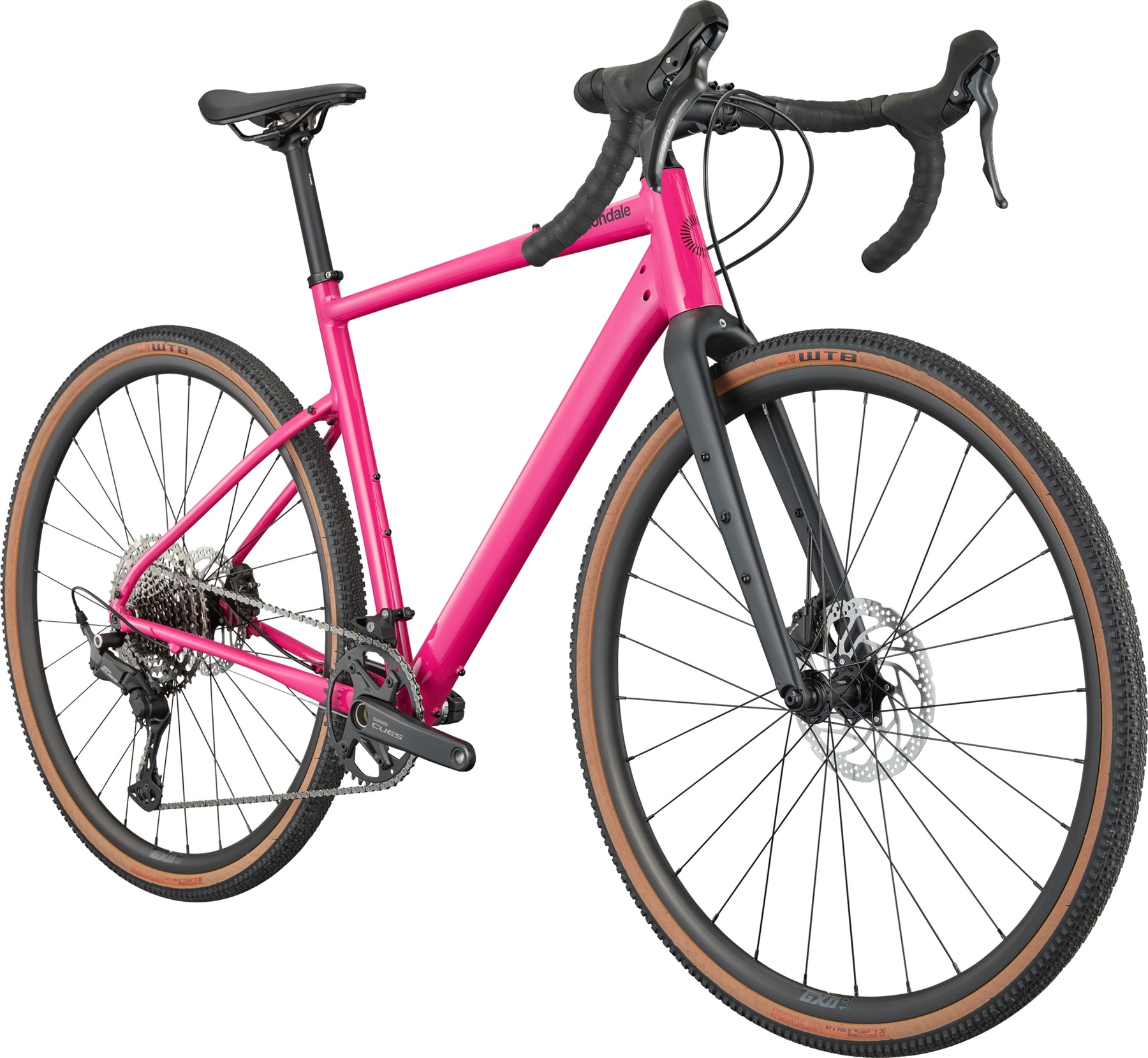

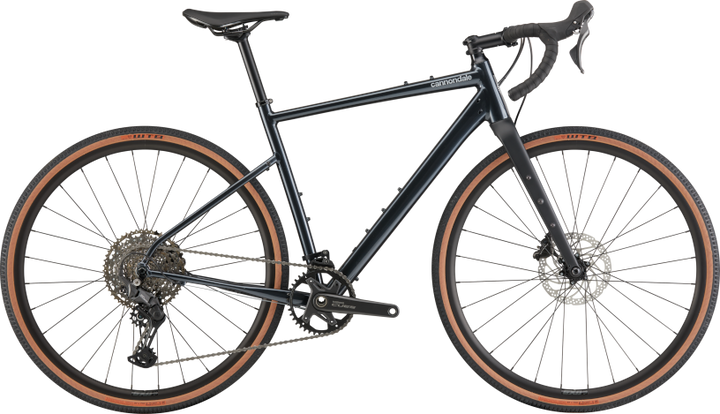

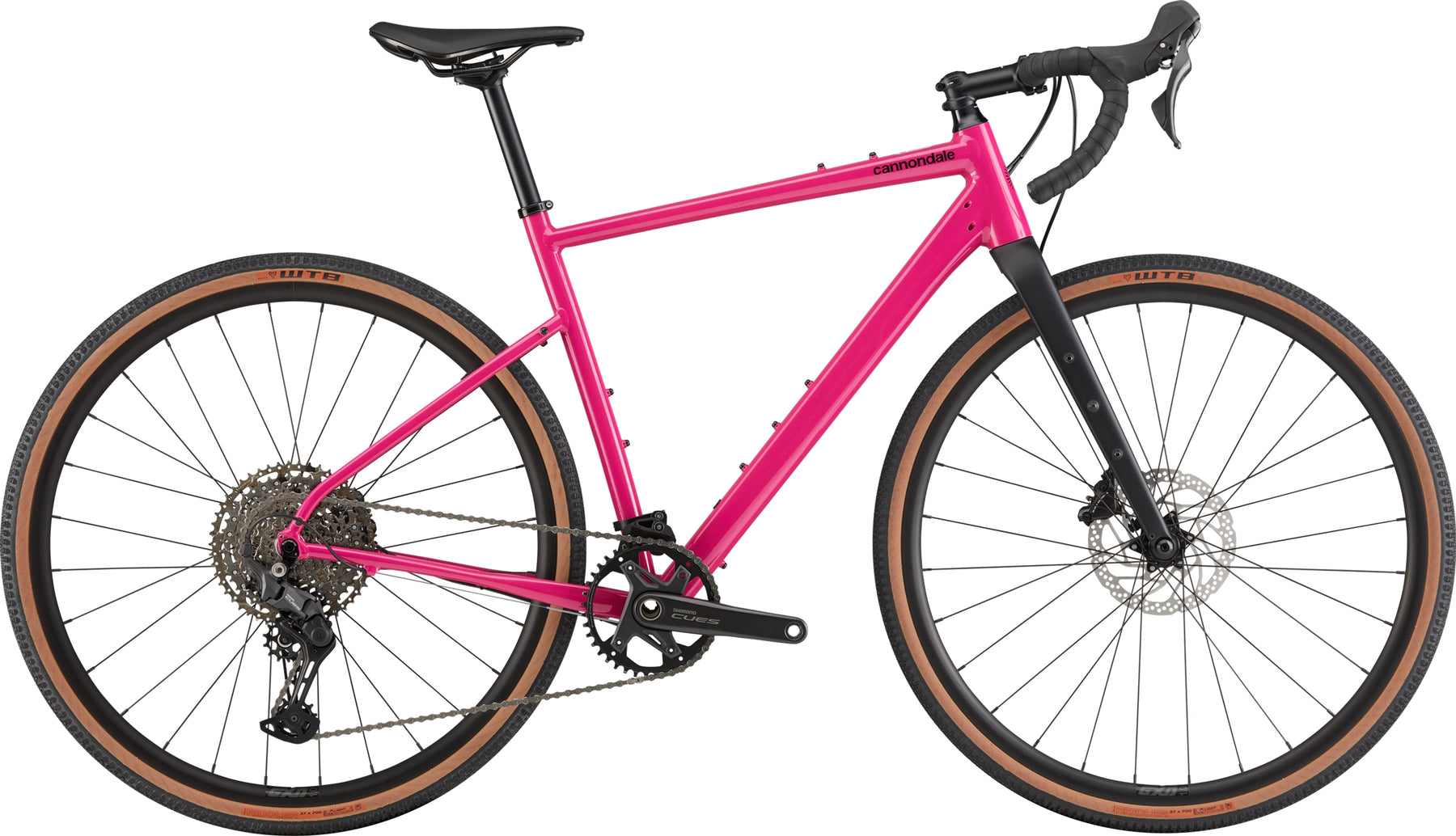

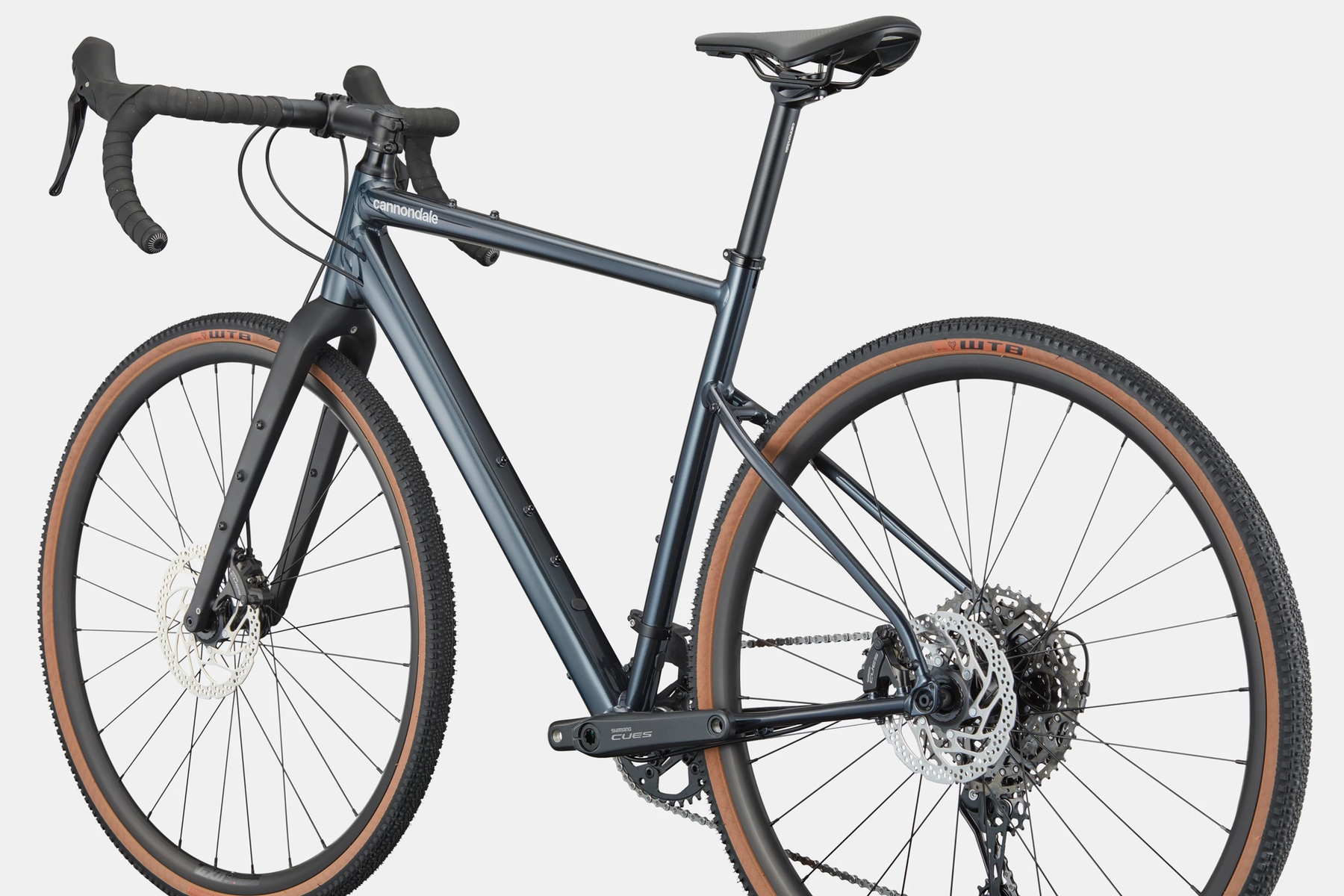

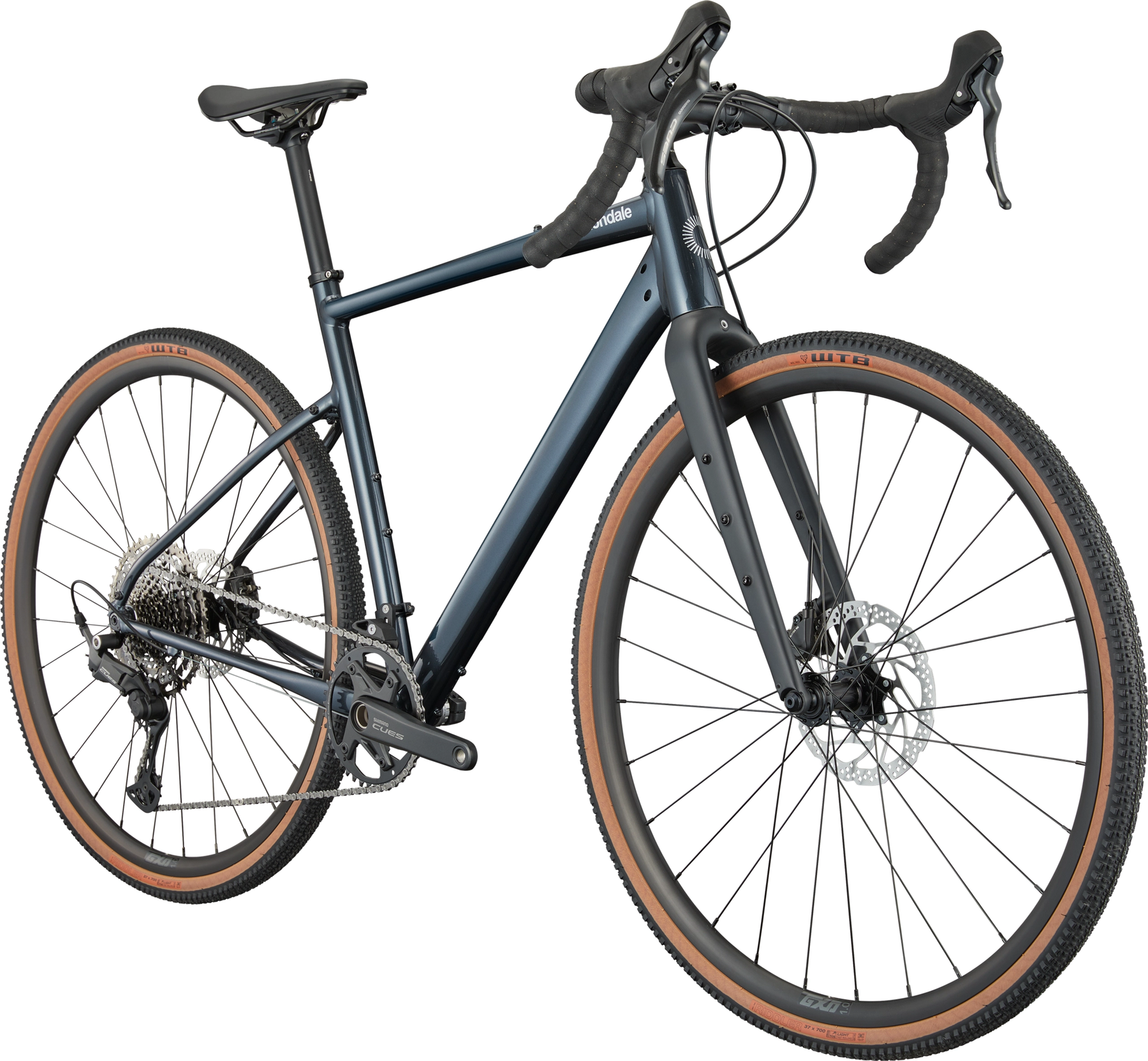

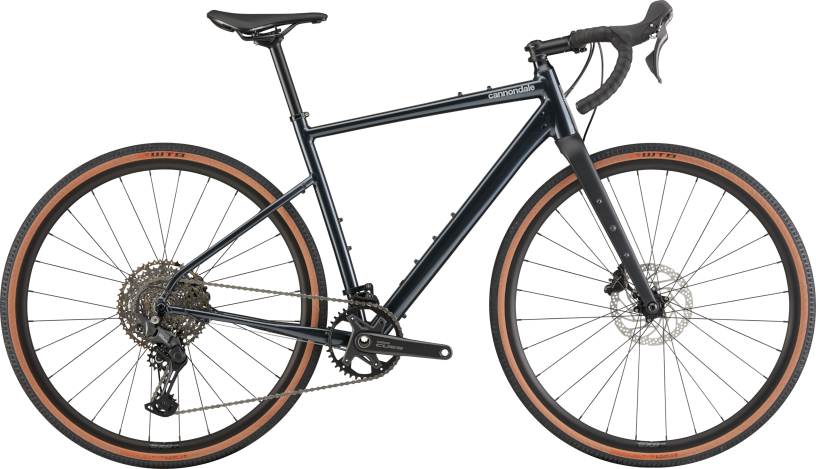

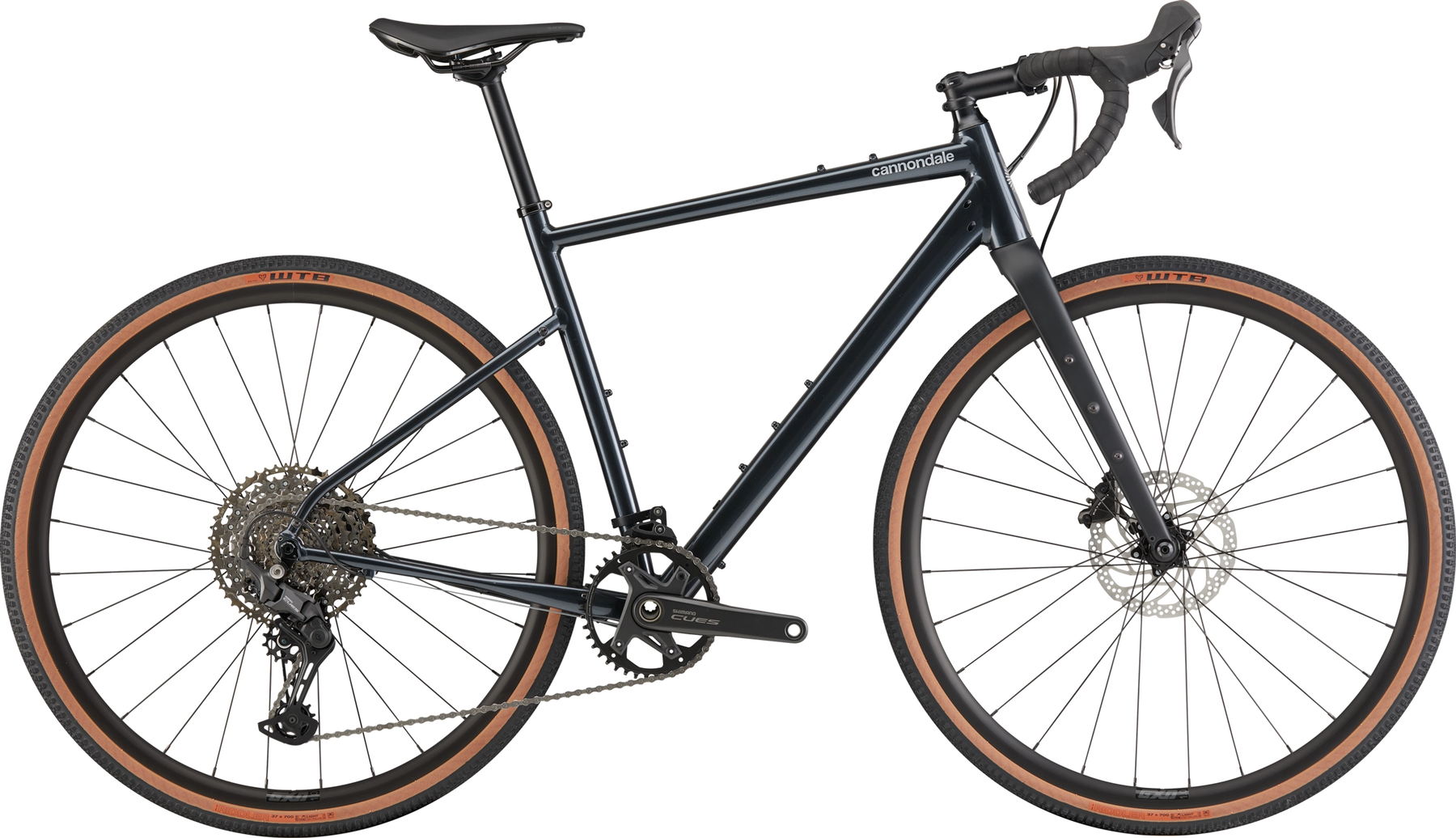

Topstone 2 CUES - 1x |
| Model Code |
C15205U |
| Frameset |

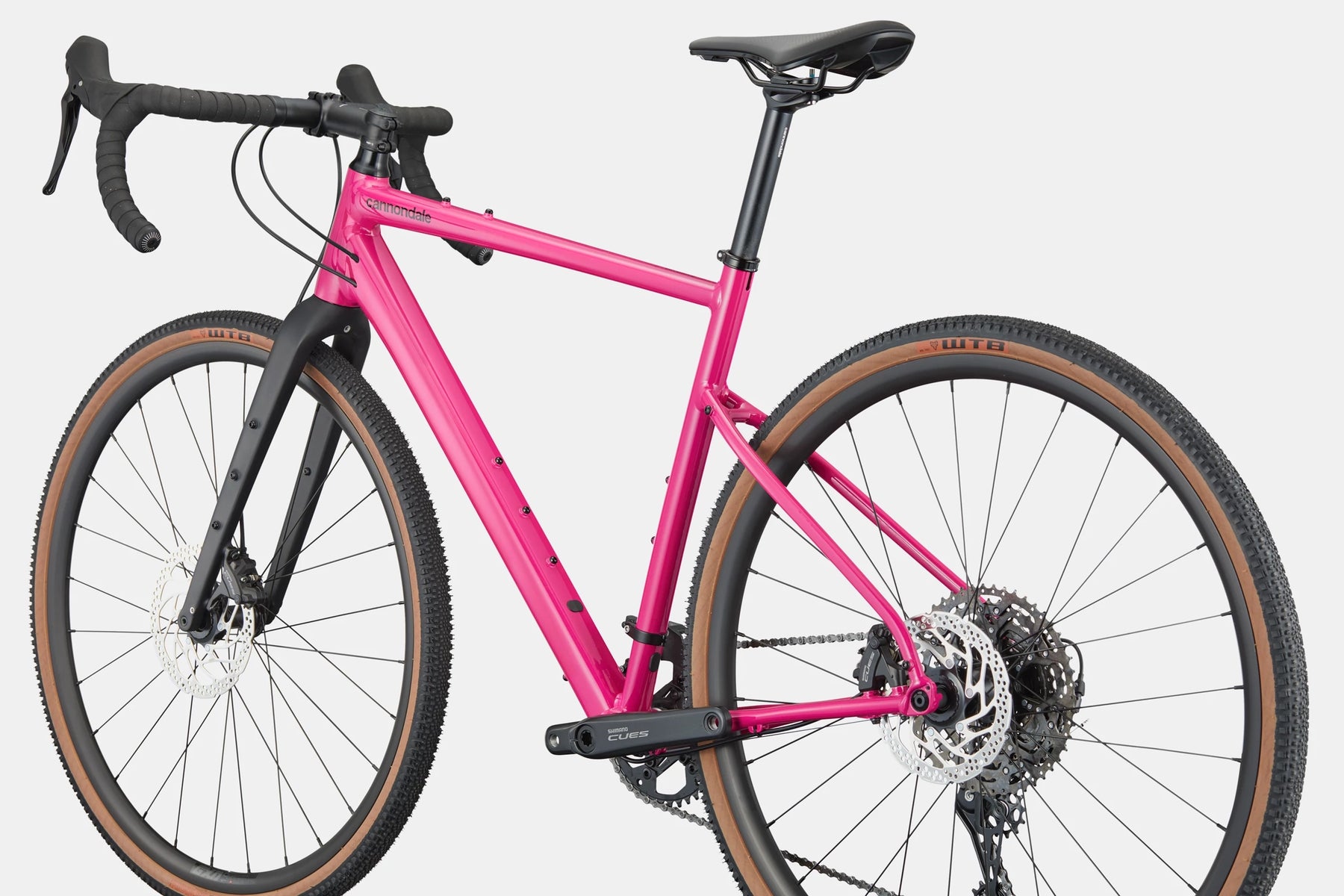

| Frame |

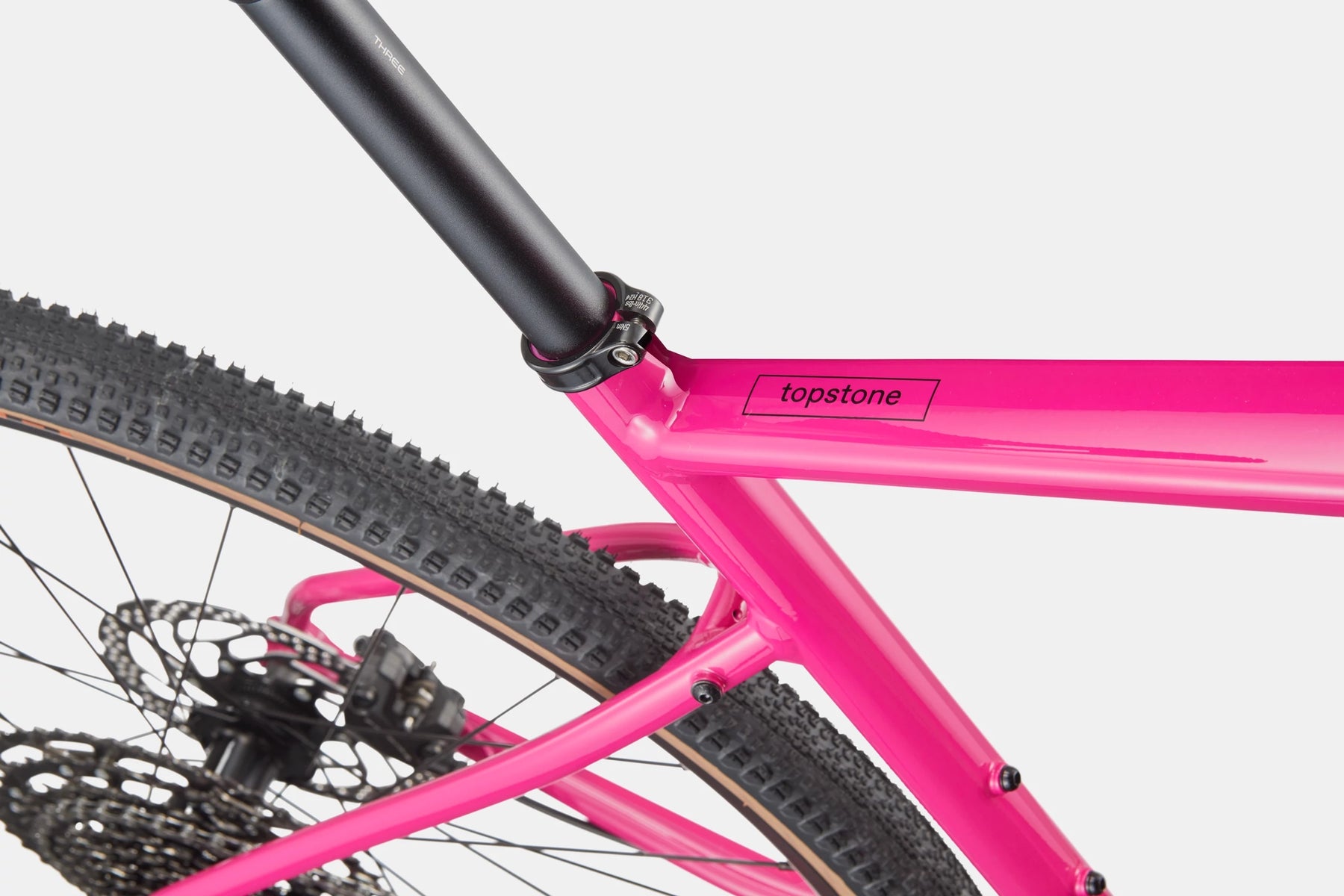

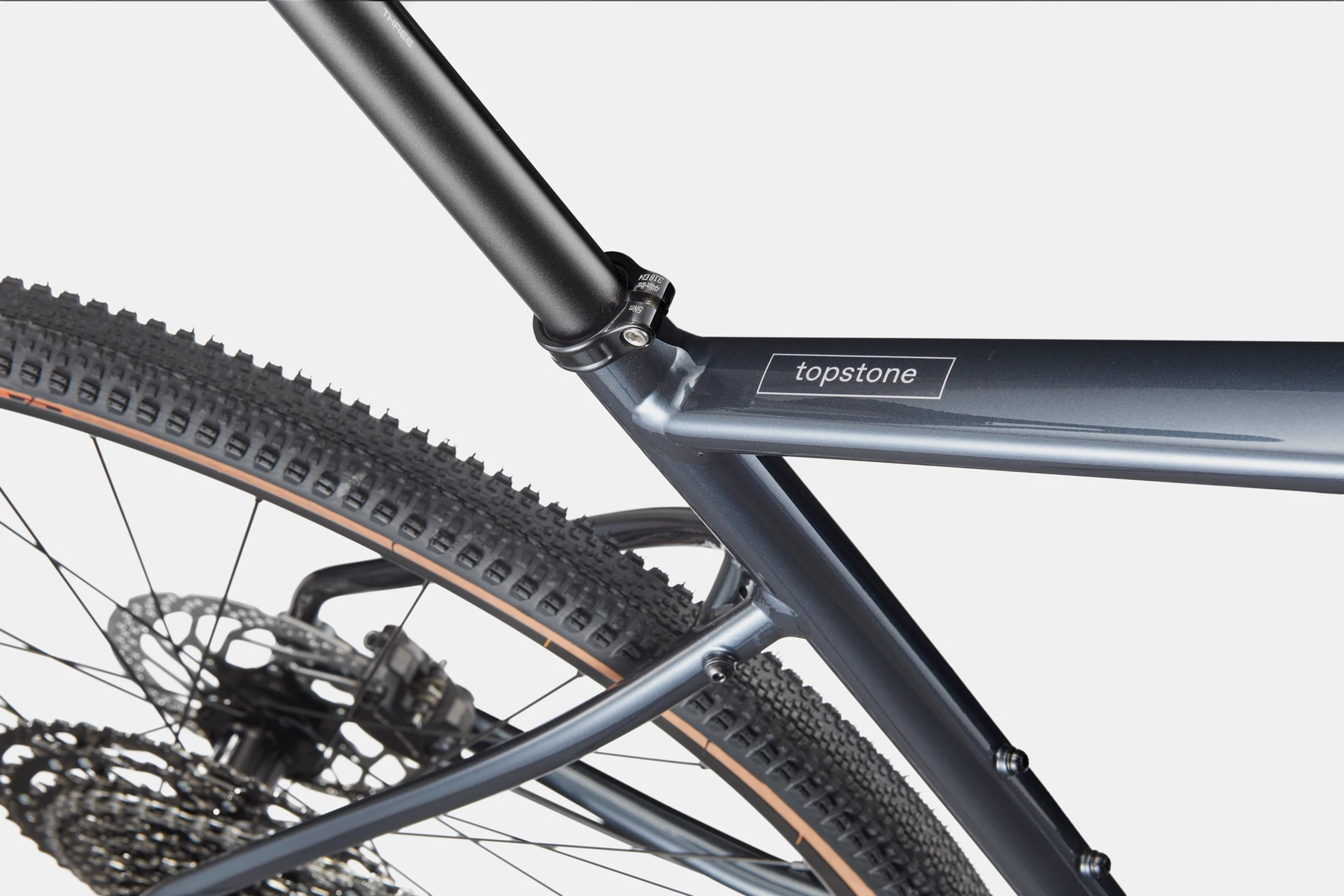

Topstone, lightweight SmartForm C2 Alloy, 12x142 thru-axle, tapered headtube, BSA threaded BB, flat mount disc, StraightShot internal cable routing, multiple gear/bottle mounts |
| Fork |

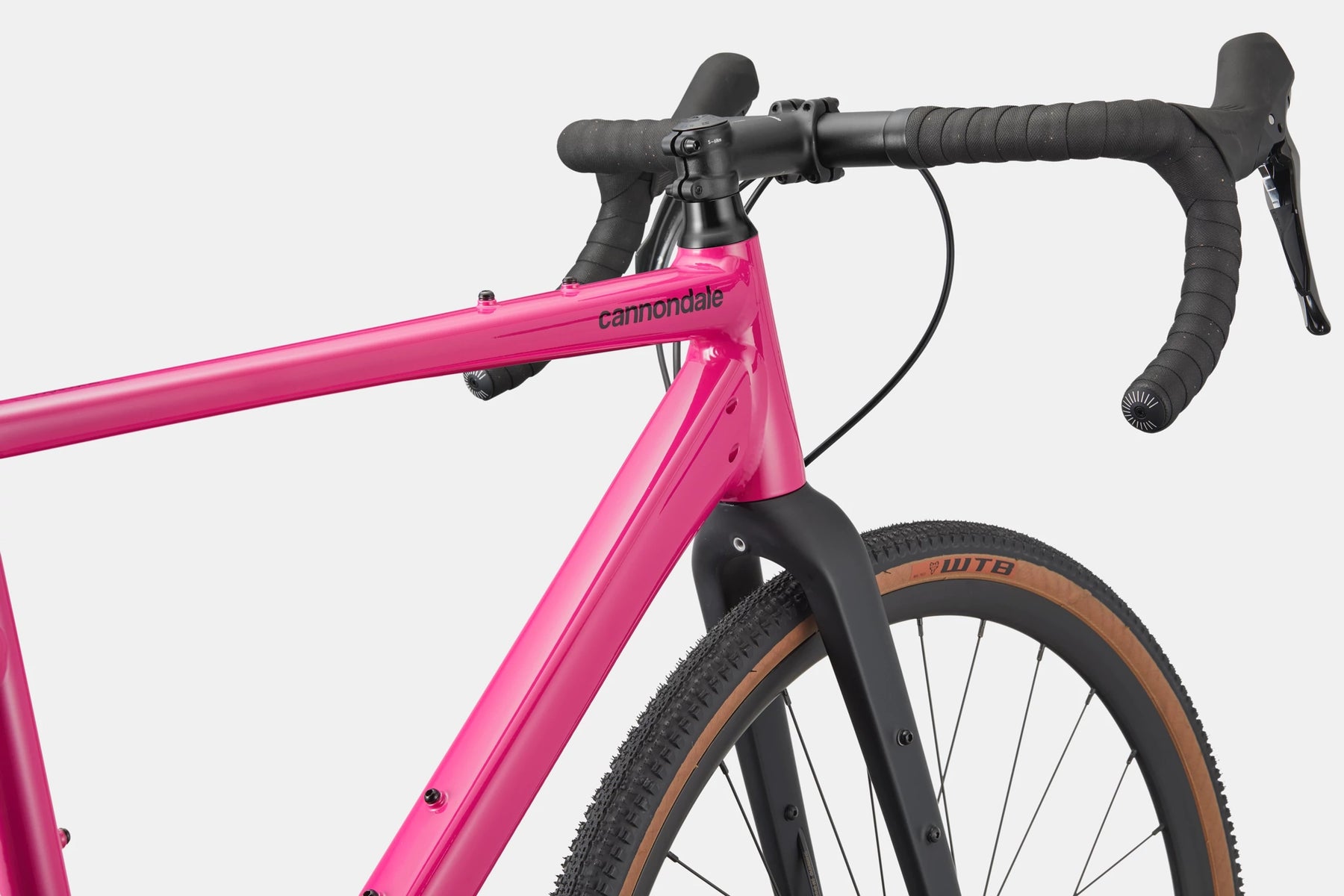

Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts |
| Headset |
Integrated, 1-1/8" - 1.5" |
| Drivetrain |

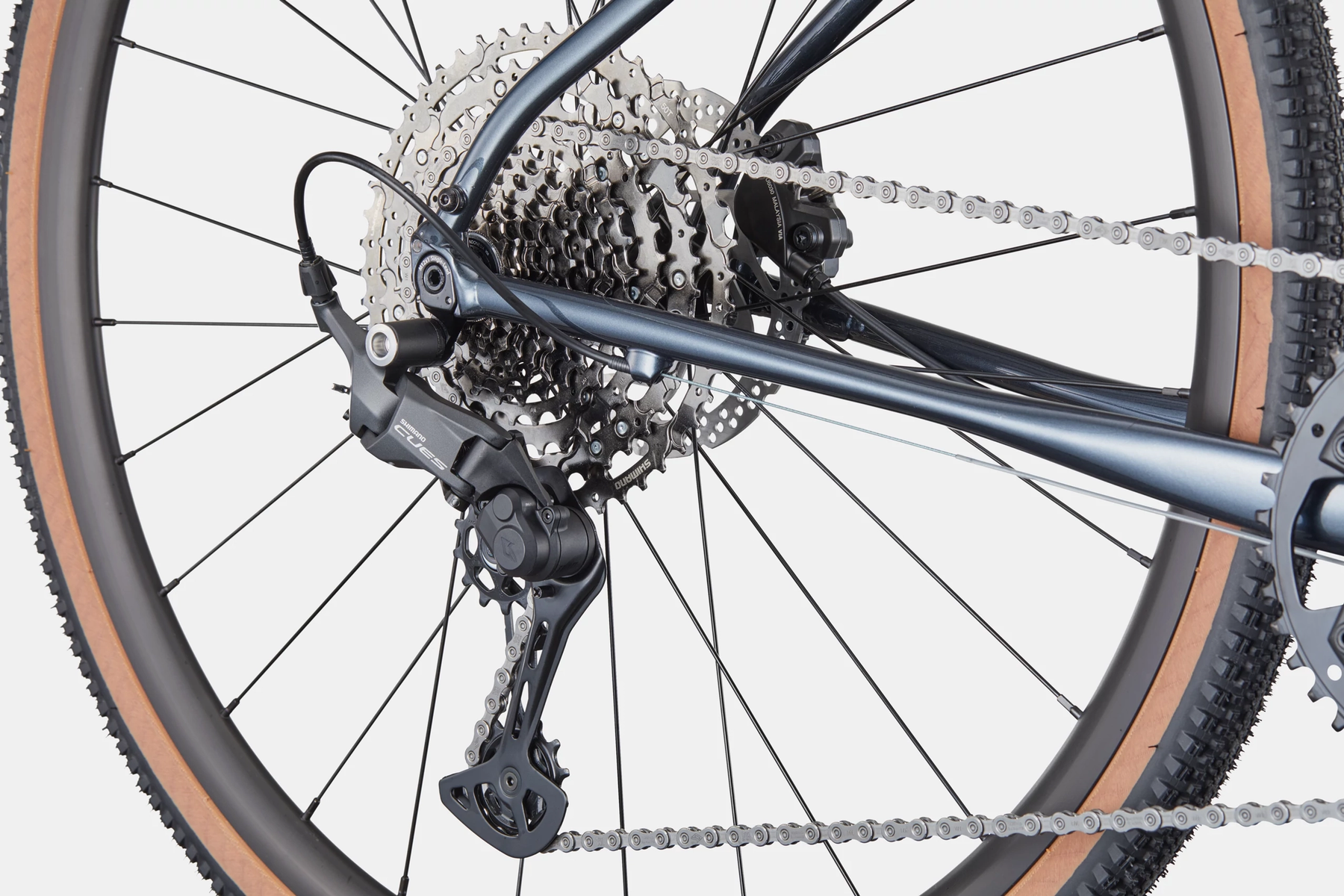

| Rear Derailleur |

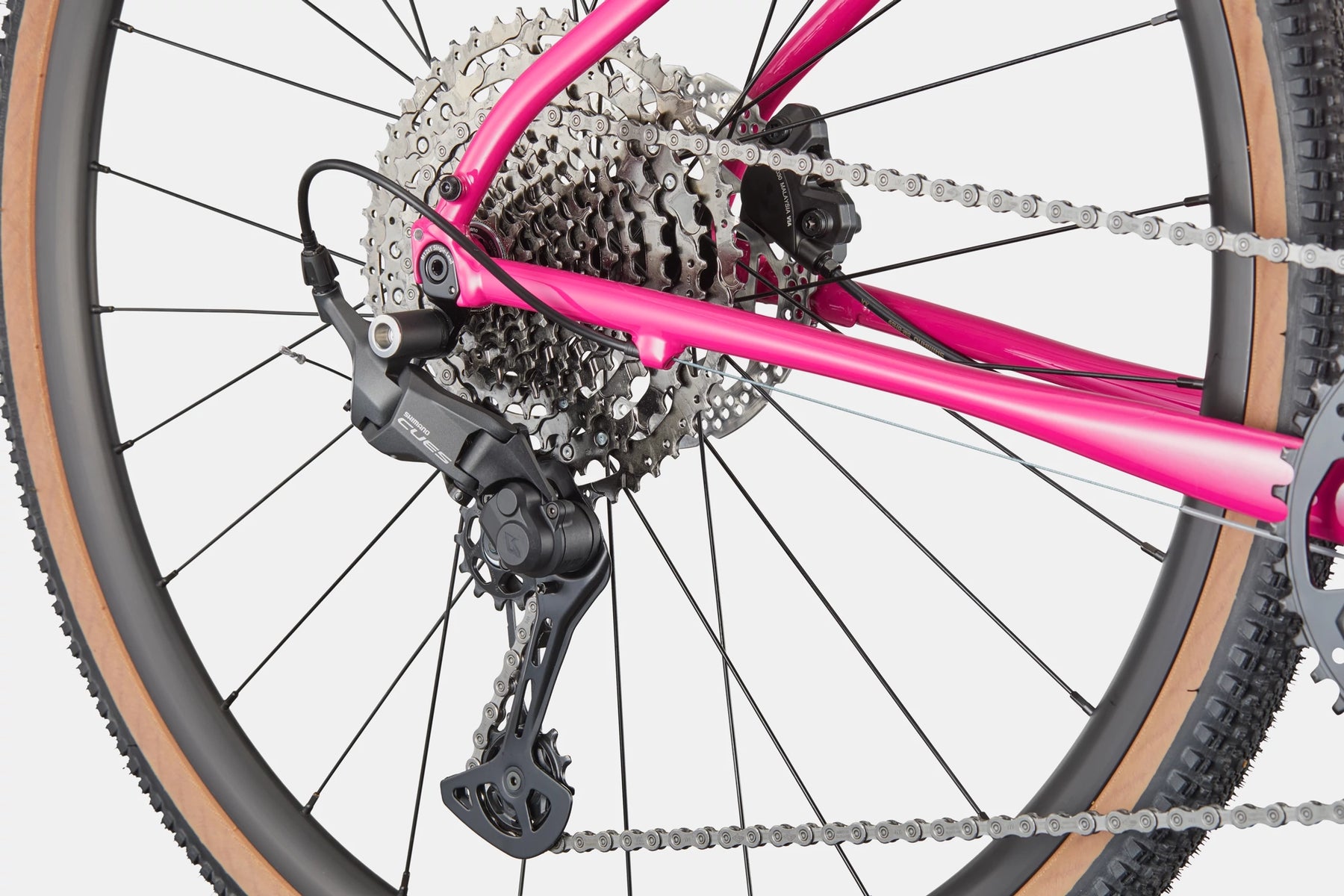

Shimano CUES U6000 GS |

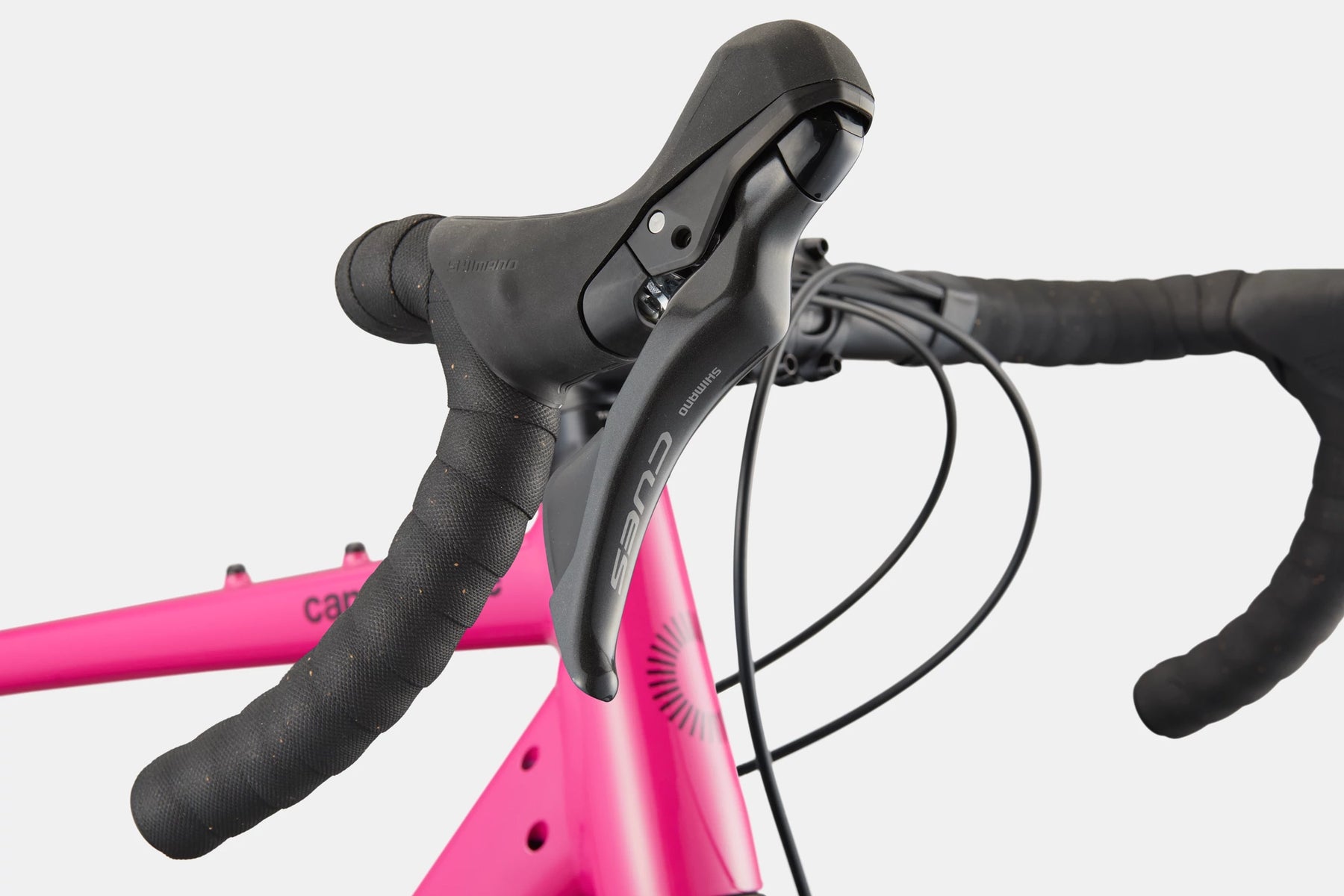

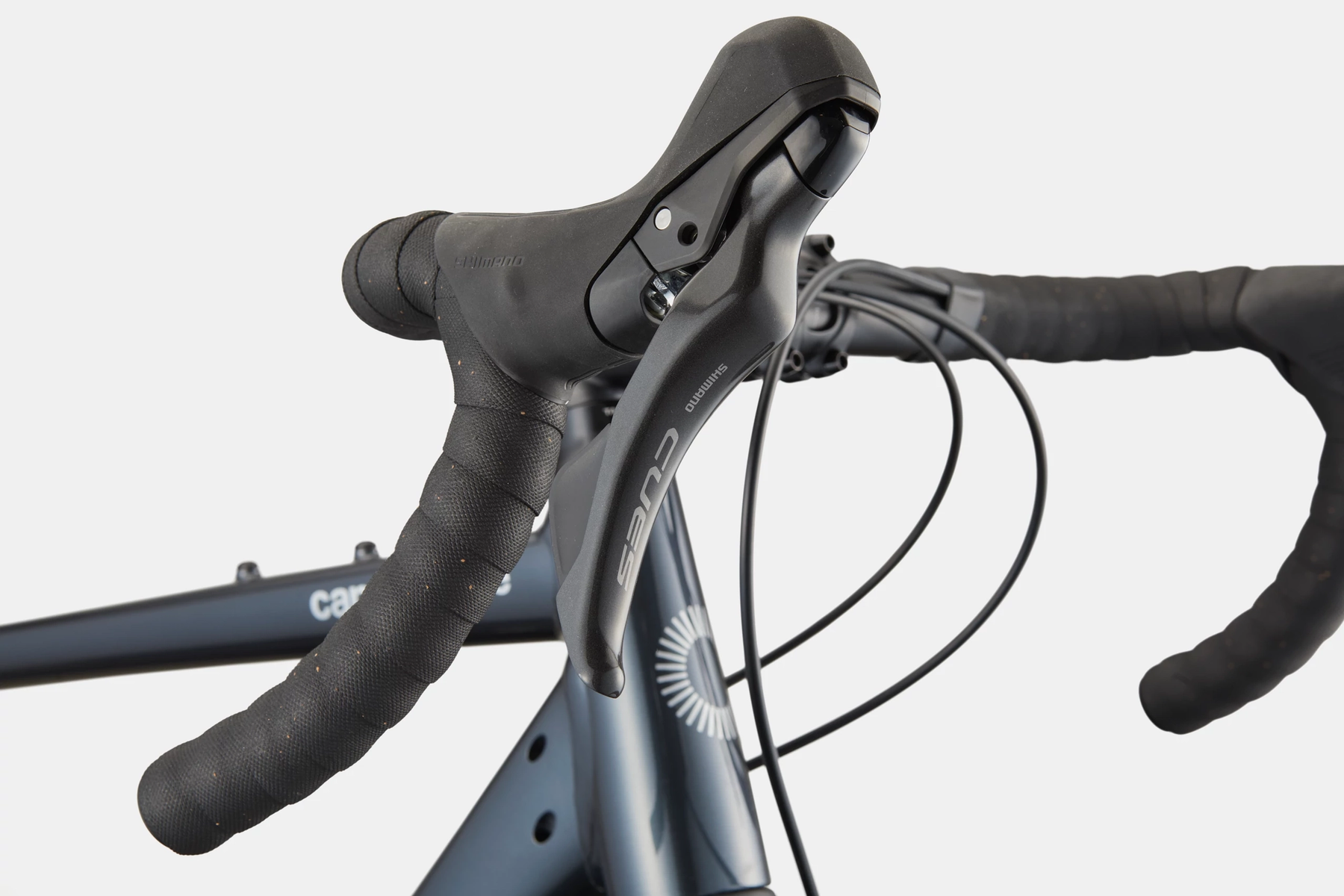

| Shifters |
Shimano CUES U6030, 11-speed |
| Chain |
Shimano LG500 Linkglide, 11-speed |
| Crank |
Shimano CUES, 40T |
| Rear Cogs |
Shimano CUES LG400, 11-50, 11-speed |
| Bottom Bracket |
Shimano BSA 68 |
| Brakes |
| Brakes |
Shimano CUES 6030 hydraulic disc, 180/160mm RT30 rotors |
| Brake Levers |
Shimano CUES U6030 hydraulic disc |
| Wheels |
| Front Hub |
Shimano TC500, 12x100mm centerlock |
| Rear Hub |
Shimano TC500, 12x142mm centerlock |
| Rims |
GXD 1.0, 28h, 23mm internal width, tubeless ready |
| Spokes |
Stainless Steel, 14g |
| Tire Size |
37 |
| Wheel Size |
700c |
| Tires |
WTB Riddler TCS Light, 700x37c, tubeless ready |
| Front Tire |
WTB Riddler TCS Light, 700x37c, tubeless ready |
| Rear Tire |
WTB Riddler TCS Light, 700x37c, tubeless ready |
| Components |

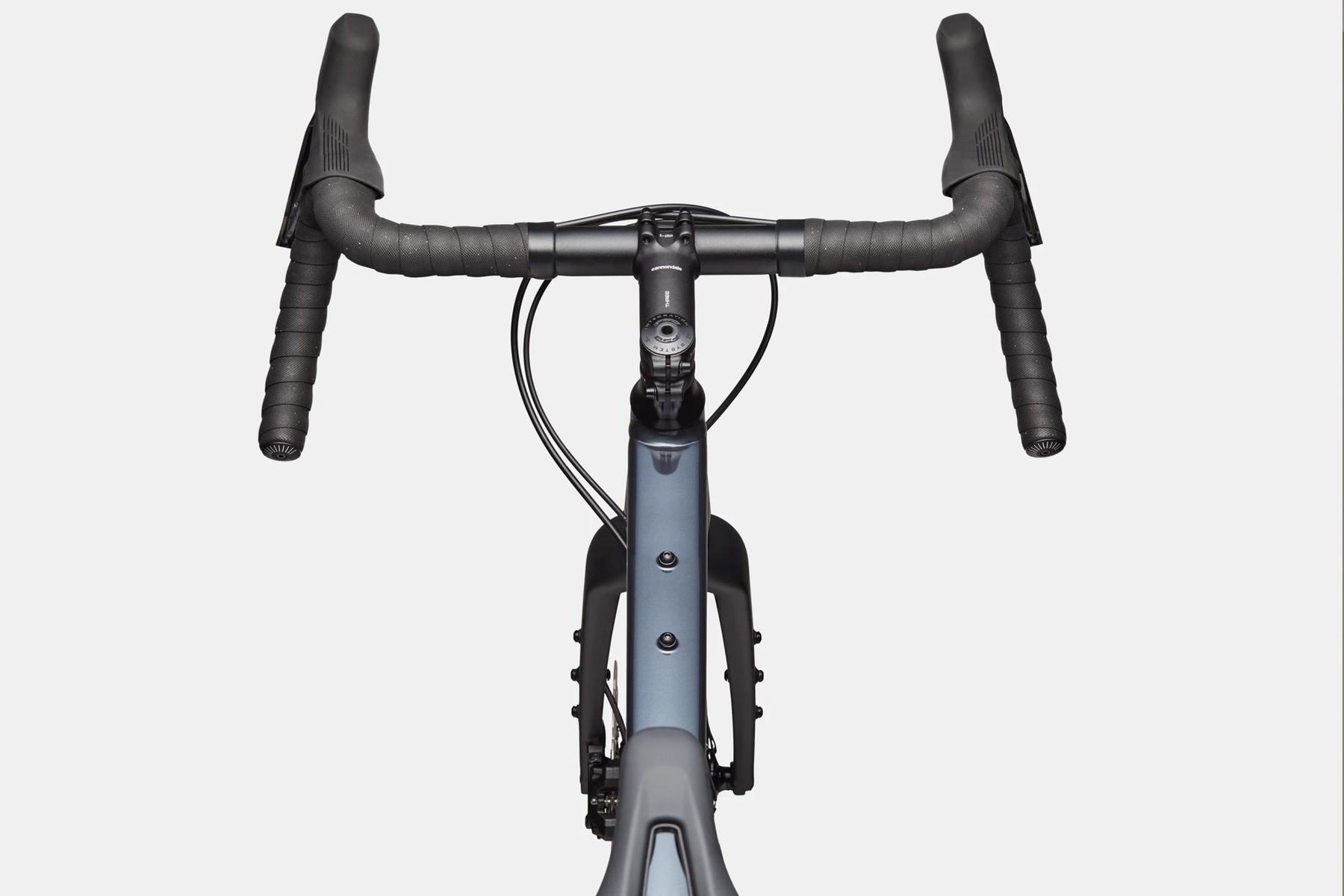

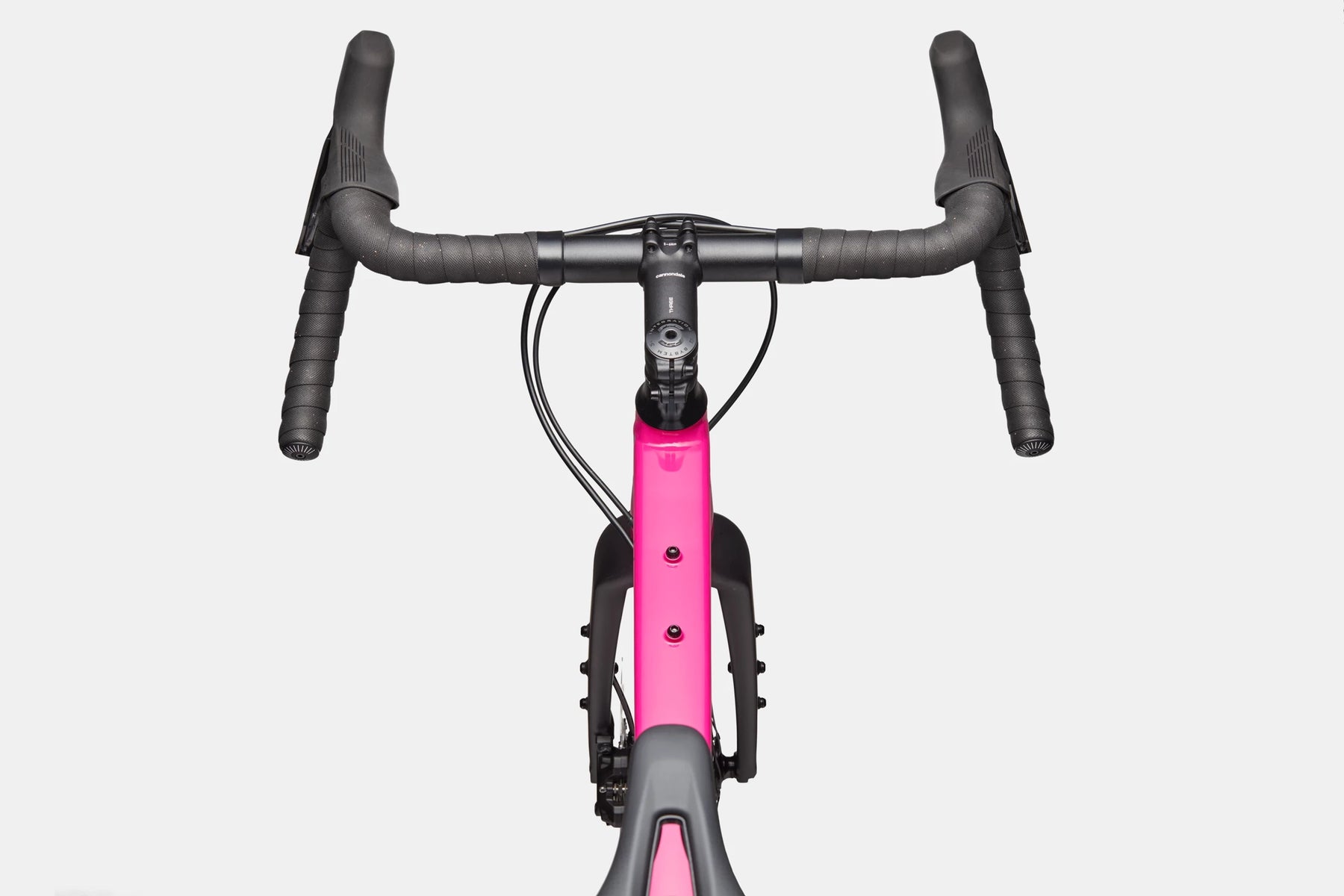

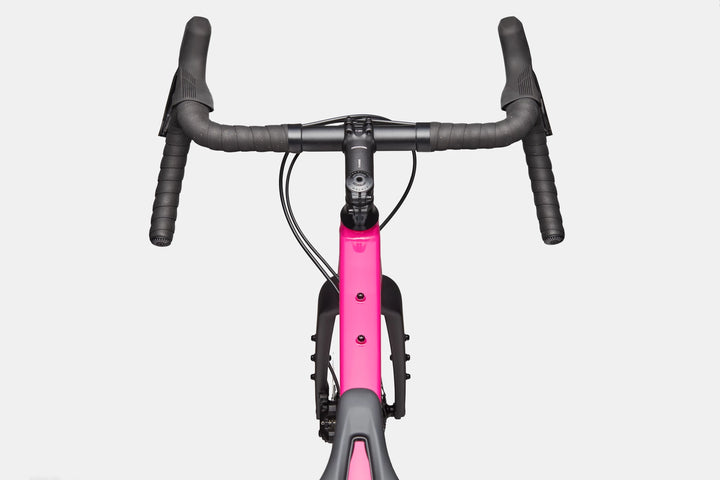

| Handlebar |

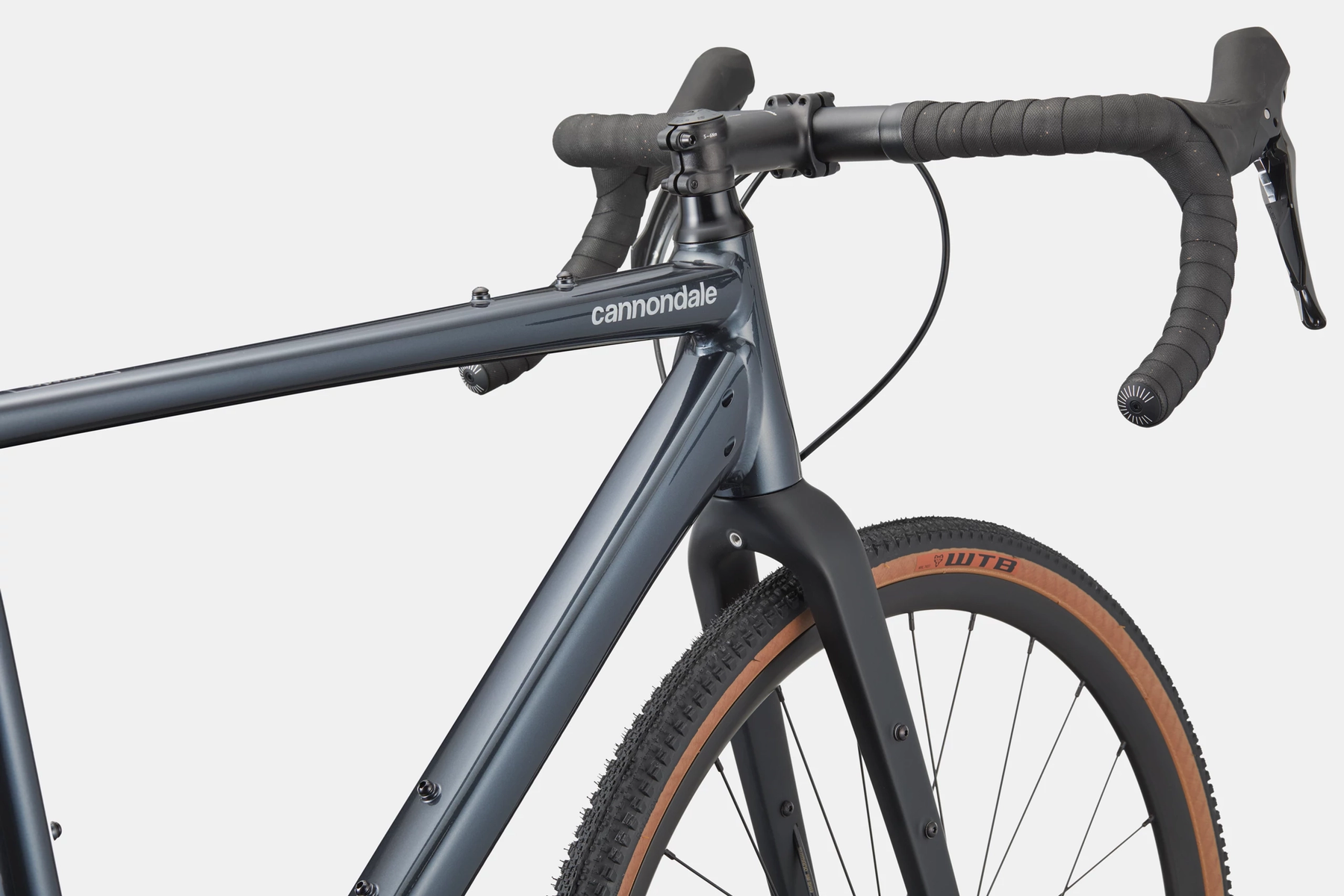

Cannondale 3, butted 6061 Alloy, 16 deg flare drop: 400mm (XS), 420mm (SM-MD), 440mm (LG-XL) |
| Stem |
Cannondale 3, 6061 Alloy, 31.8, 7°: 80mm (XS), 90mm (SM-MD), 100mm (LG-XL) |
| Grips |
Cannondale KnurlCork, 2.7mm |
| Saddle |
Selle Royal SRX Open |
| Seatpost |
Cannondale 3, 6061 Alloy, 27.2x350mm |
| Extra |
| Extra 1 |
Tubeless valves |
