Cannondale Moterra 3
Cannondale Moterra 3
Cannondale Moterra 3
Cannondale Moterra 3
Cannondale

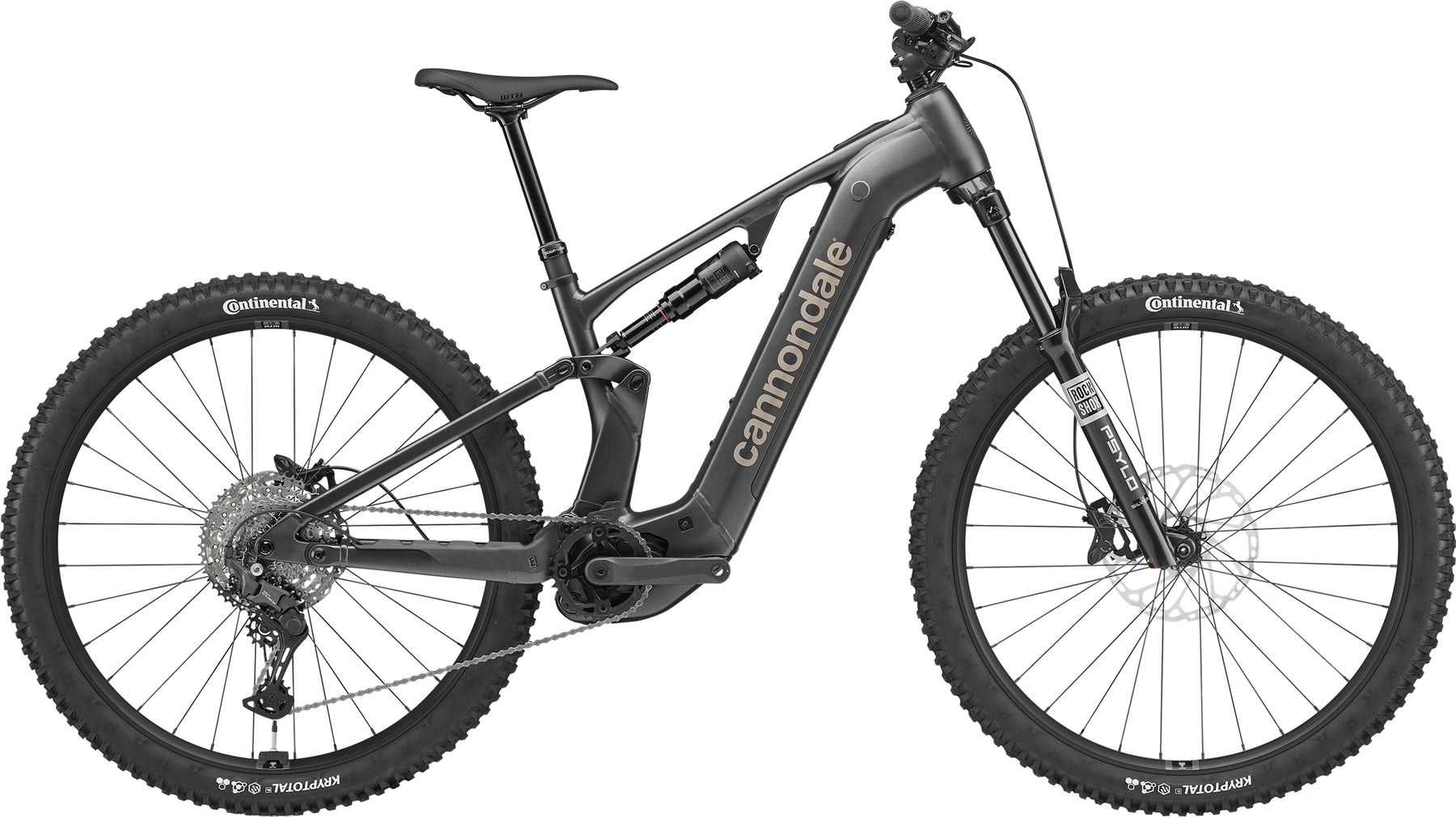

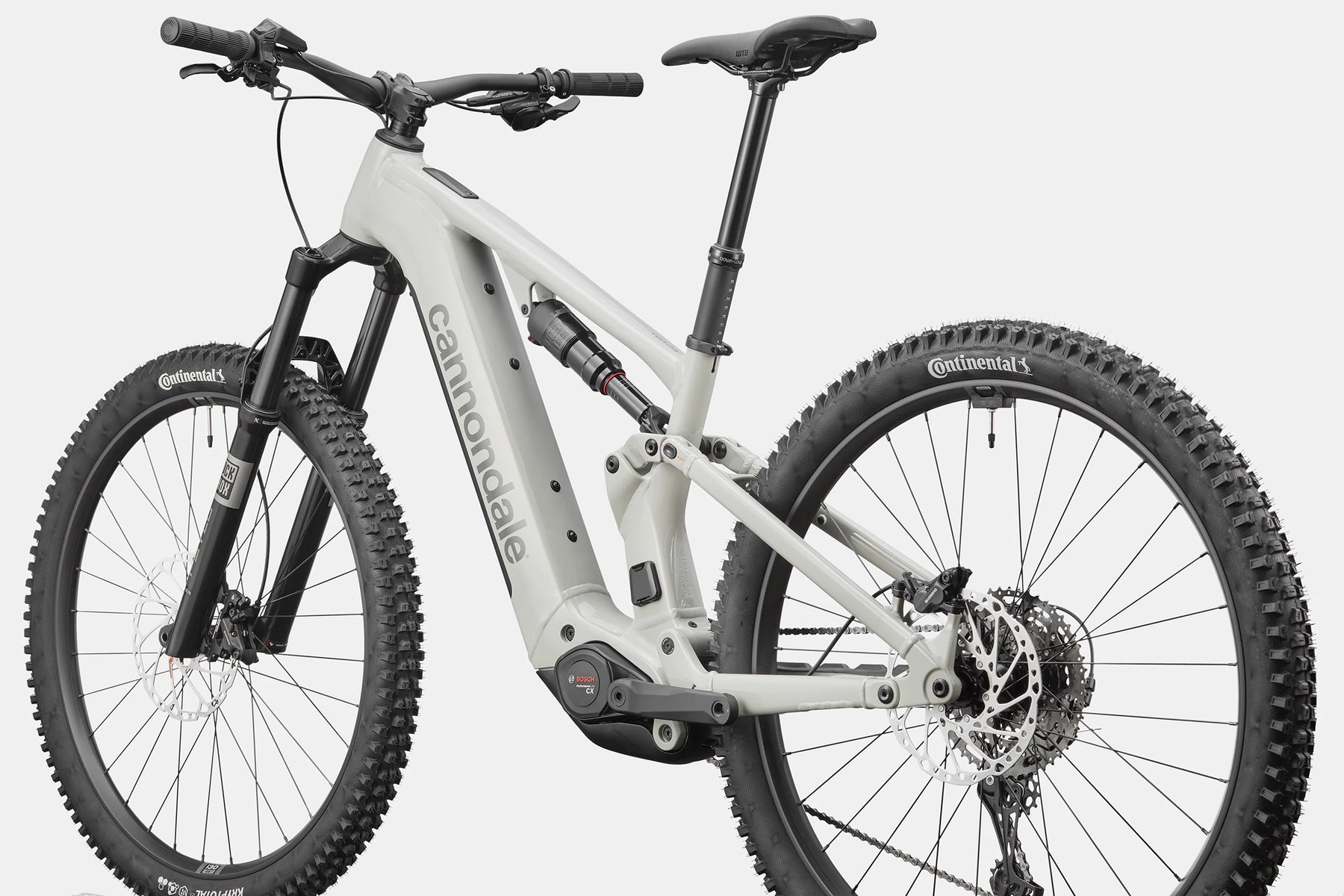

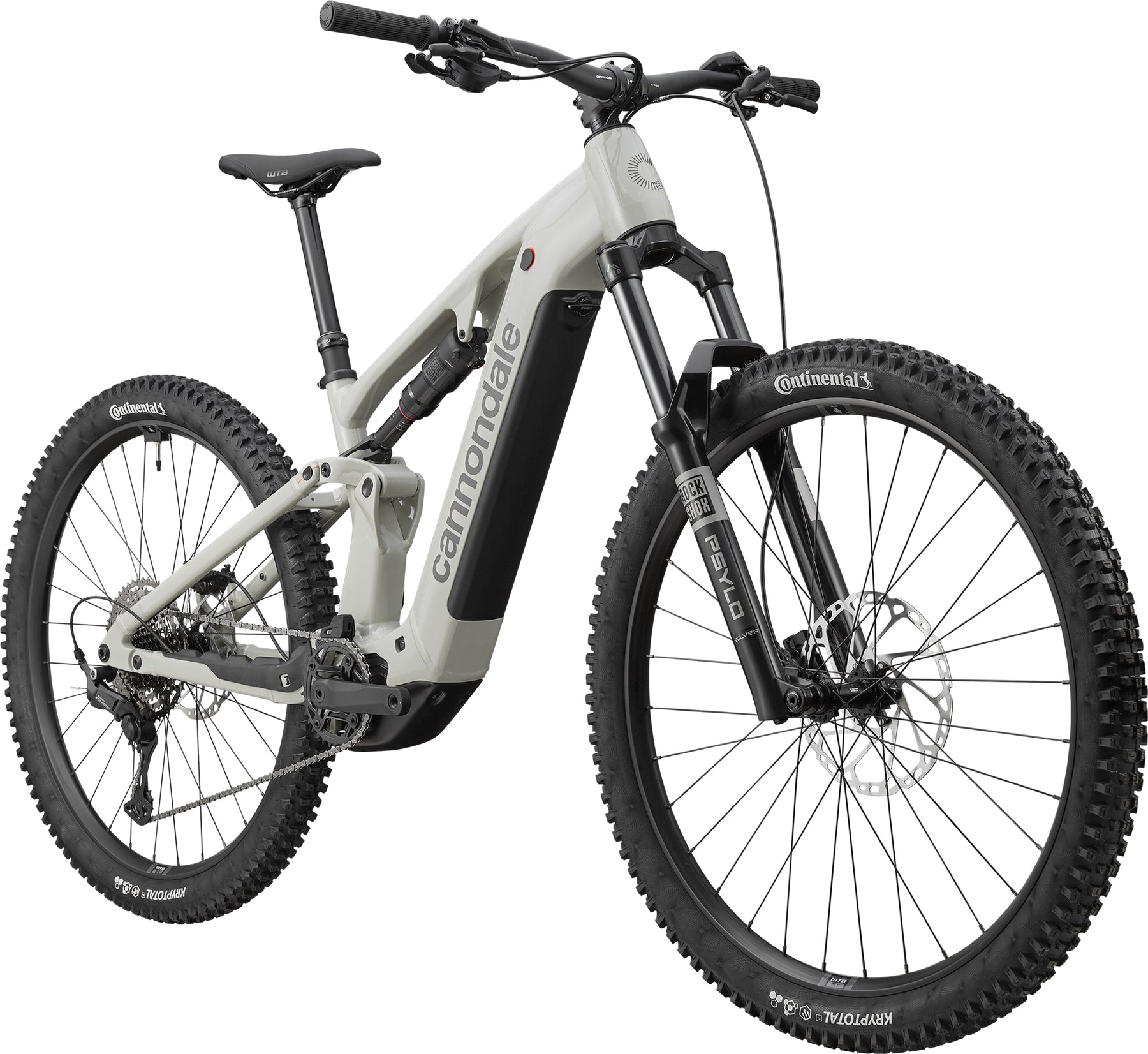

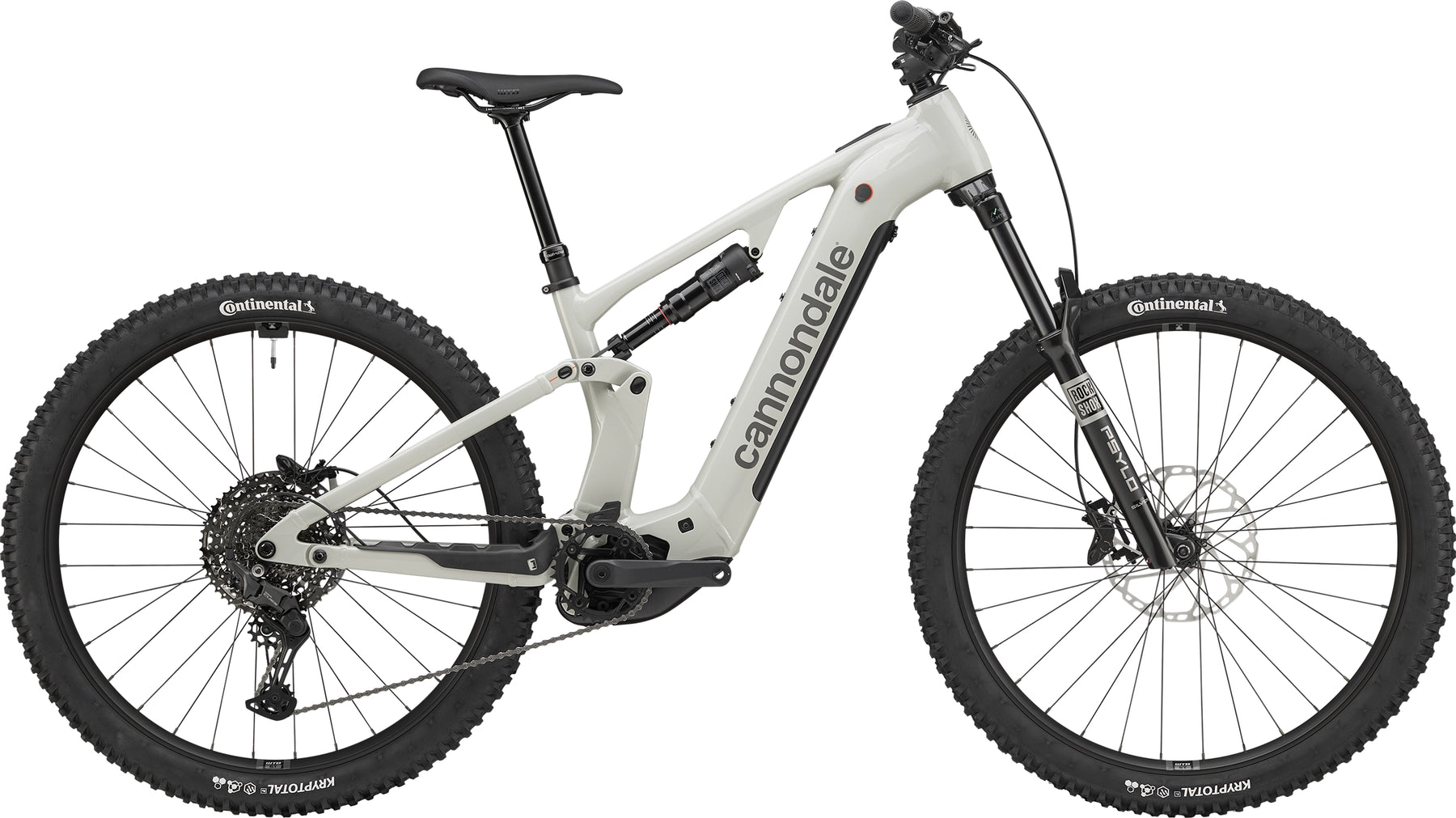

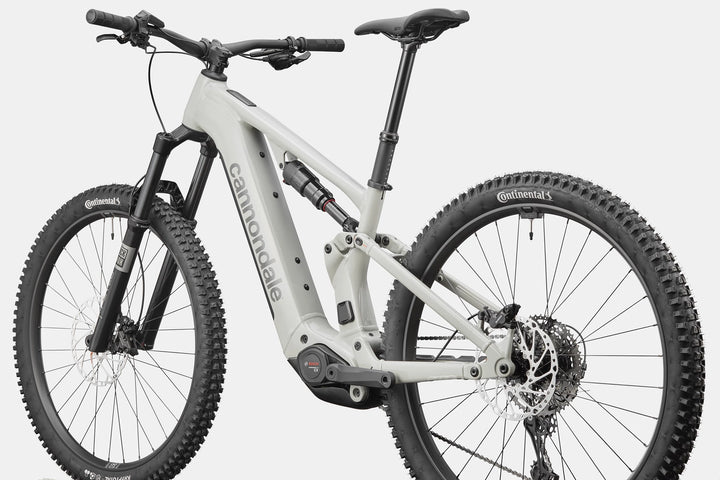

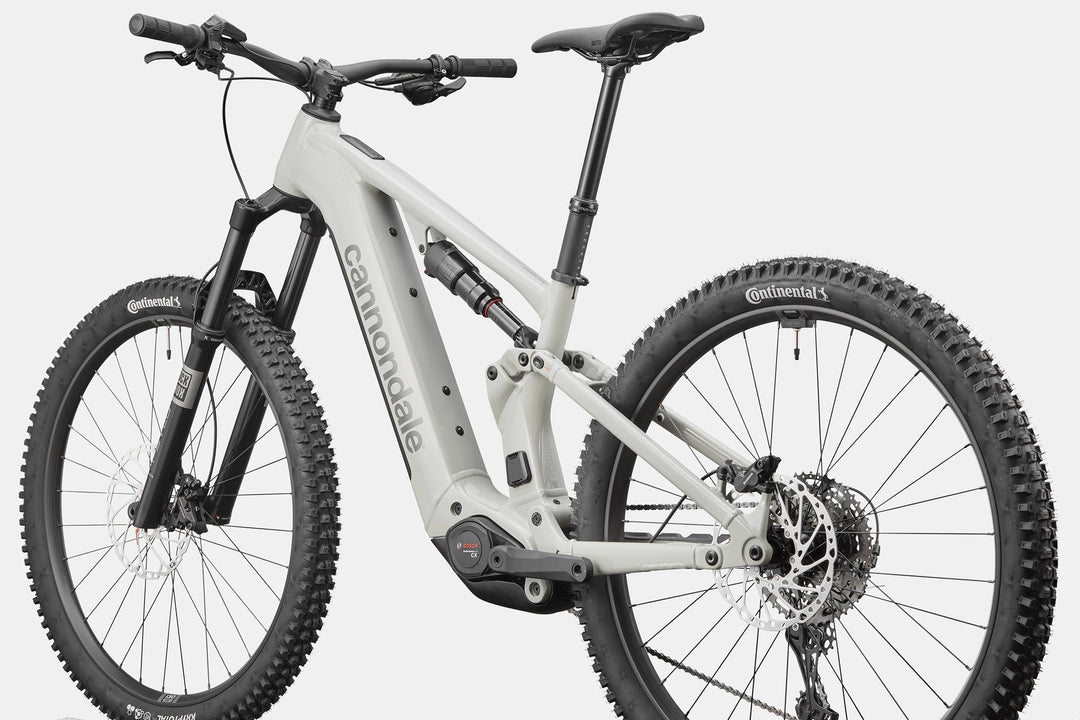

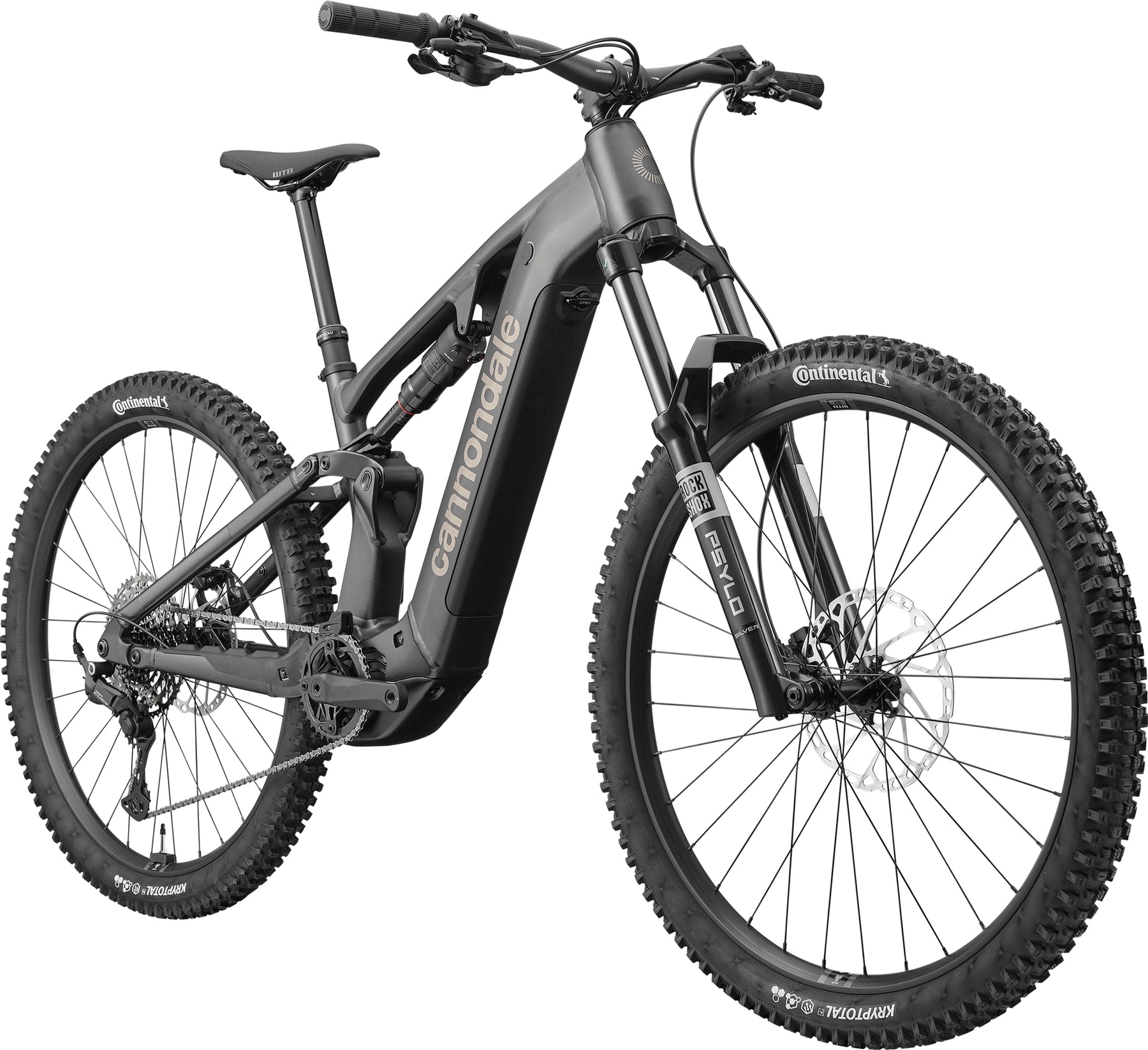

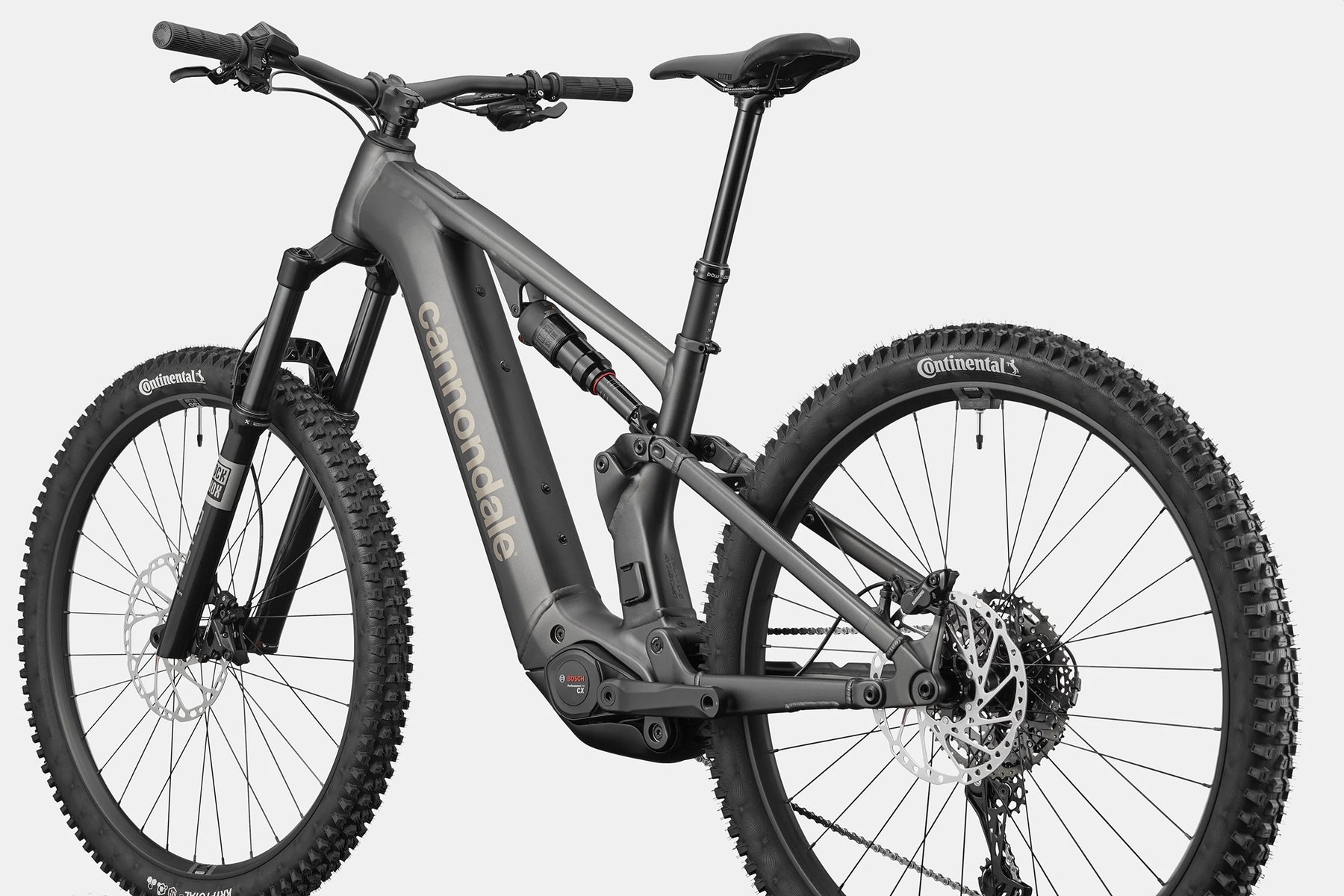

Cannondale Moterra 3

$8,100.00
/
Color
Size
  • In stock at warehouse, ready to ship
  • Backordered, shipping soon

This bike is available for order.
Use the contact form below, give us a call, or visit the shop to order!

More Juice, No Excuse

The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further—faster.

Model Description

Rugged, responsive, and ready for anything—Moterra 3 has everything needed to tackle big days on the trail. The 150mm travel SmartForm C1 Alloy frame, huge 800Wh battery, and Bosch’s most powerful CX motor make short work of long climbs. A 160mm RockShox Psylo Silver RC fork and Deluxe Select shock ensure a controlled, responsive ride, while Shimano CUES U6000 shifting and MT520 4-piston brakes provide reliability you can count on. Ready to roll with WTB/Shimano wheels, it’s a no-nonsense trail companion.

What it's for

Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild

Highlights

  • A premium SmartForm C1 Alloy frame - Proportional Response size-specific suspension, tuned for specifically for the air shock and 29” wheels
  • Bosch's most powerful system – Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
  • RockShox’s workhorse all-mountain suspension – 160mm Psylo Silver RC fork and Deluxe Select air shock
  • Reliable WTB ST i30 rims, 30mm inner width, with Shimano hubs and Continental Kryptotal tires
  • Precise shifting from Shimano’s CUES U6000 LinkGlide 11-speed drivetrain
  • Shimano MT520 4-piston hydraulic disc brakes with 203mm rotors deliver strong, consistent braking power

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Size Rider Height Range
SM 5'1" - 5'5"
MD 5'4" - 5'9"
LG 5'8" - 6'1"
XL 6'0" - 6'5"

Details
Platform Moterra Neo
Model Name Moterra 3
Model Code C65224U


Frameset
Frame Moterra, SmartForm C1 Alloy, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible, integrated Moterra rear rack and fender mounts
Fork RockShox Psylo Silver RC, 160mm, Motion Control, SoloAir, 15x110mm Maxle, tapered steerer, 44mm offset
Headset Acros ICR, 1.5" to 1.8", sealed bearings
Rear Shock RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm


E-System

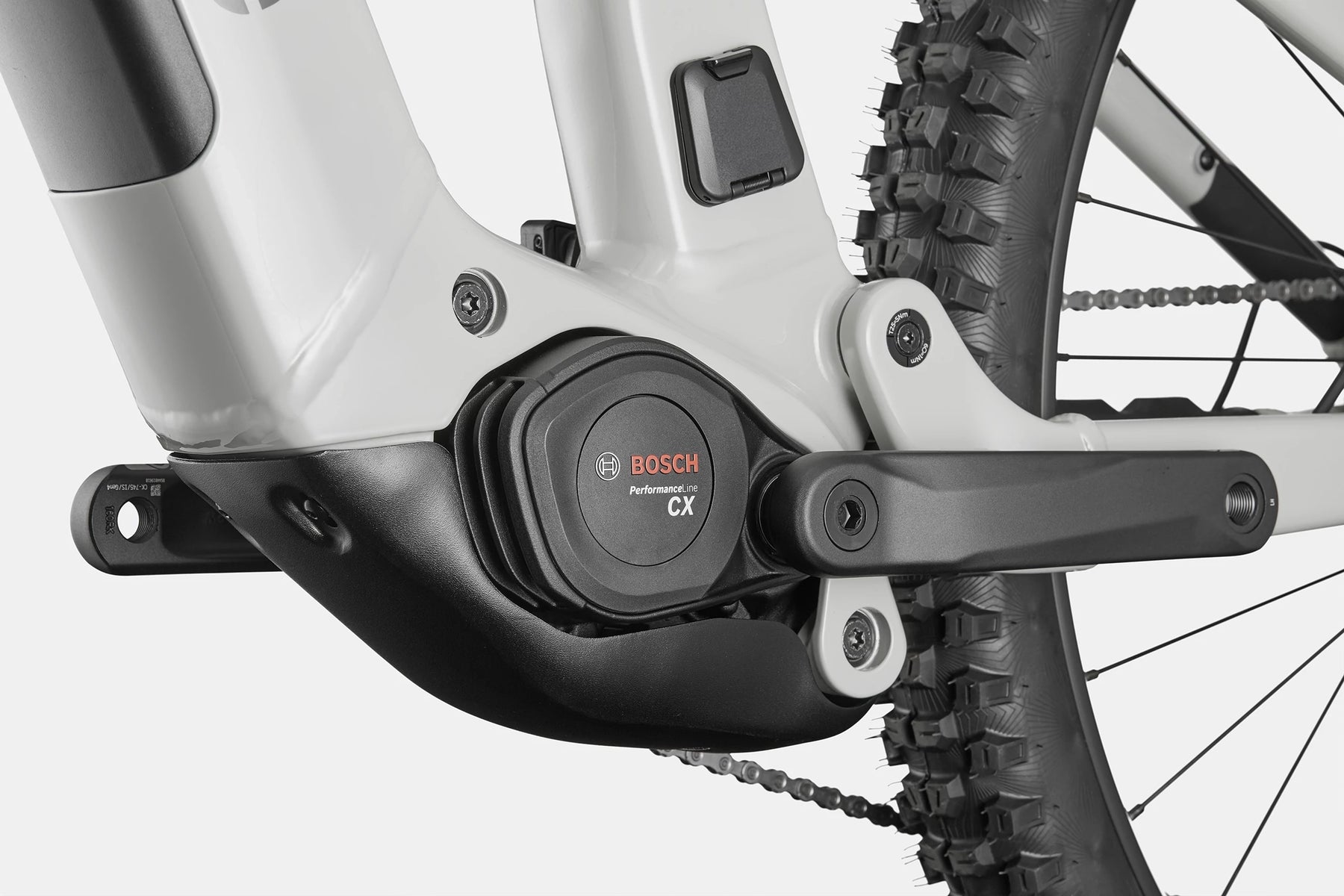

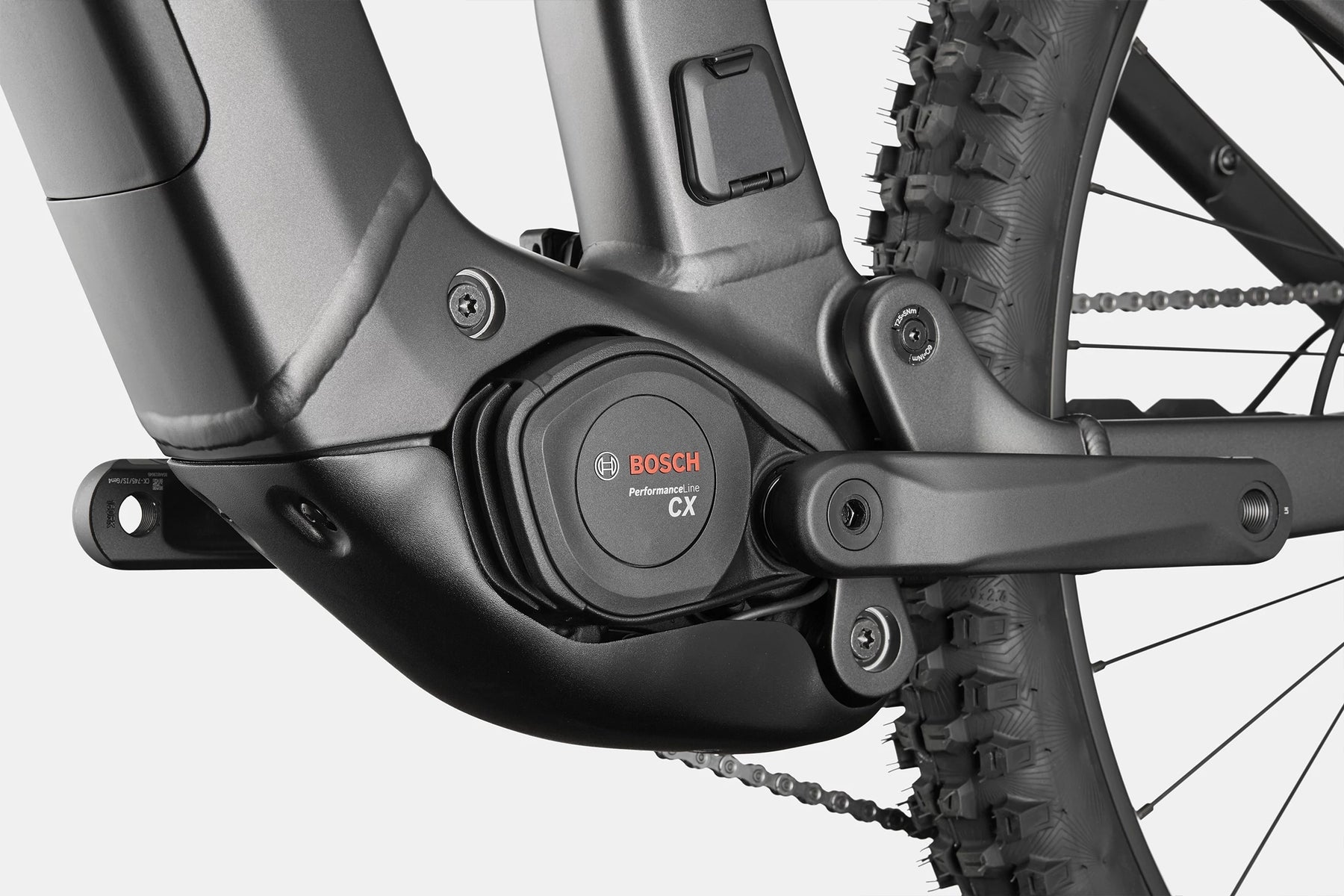

Drive Unit Bosch Performance Line CX
Battery Bosch PowerTube, 800Wh
Charger Bosch 4A

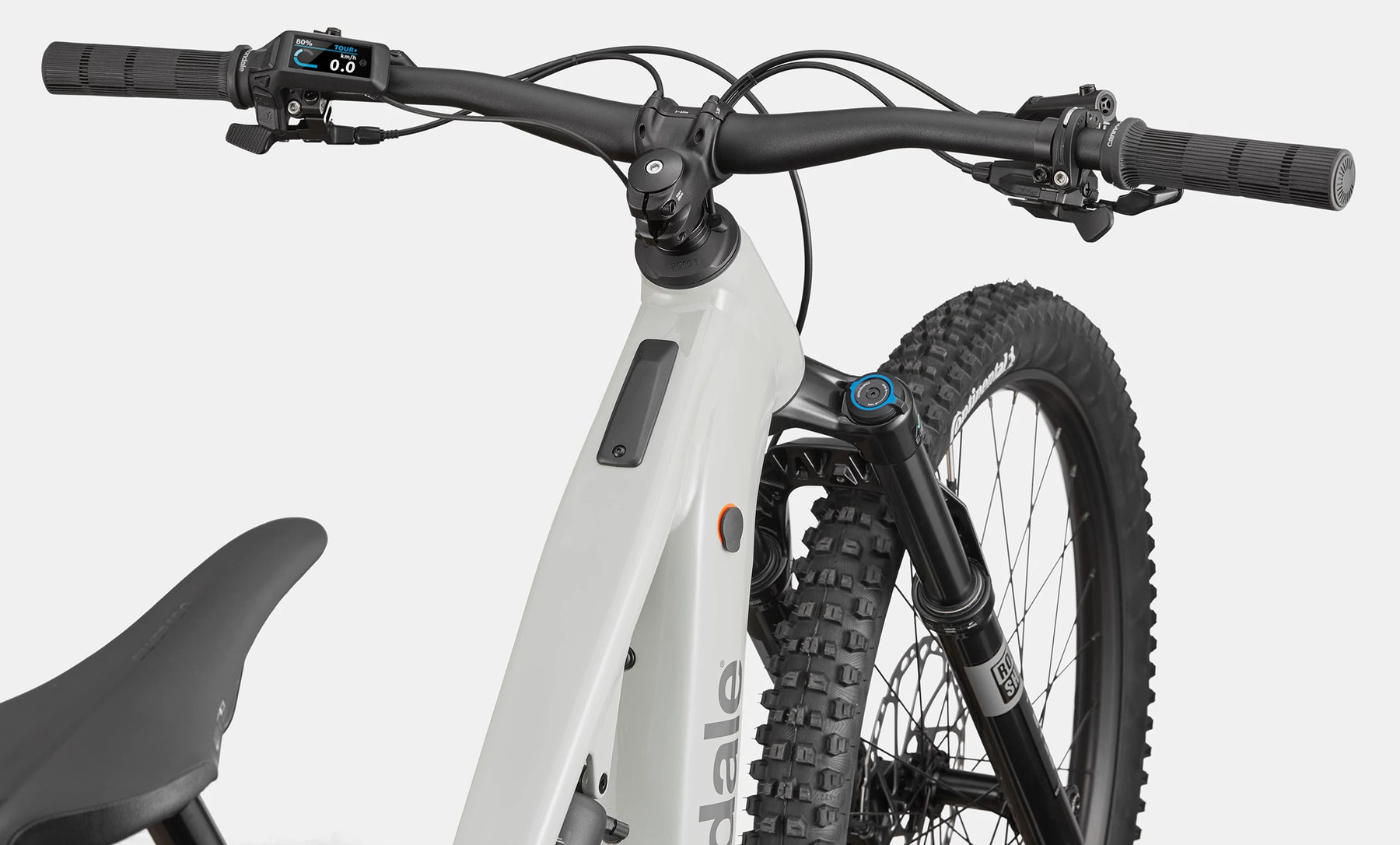

Display Bosch Purion 200


Drivetrain

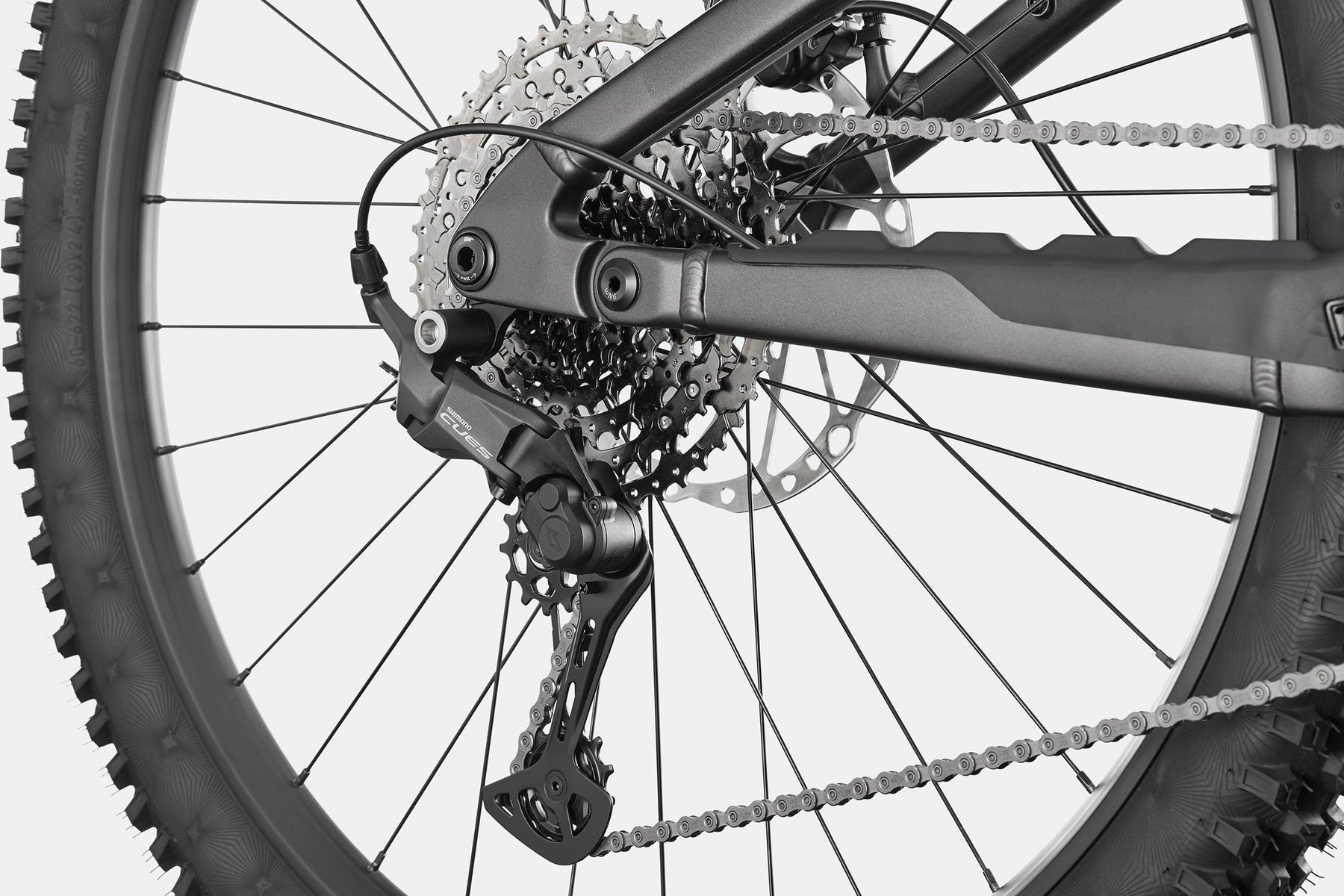

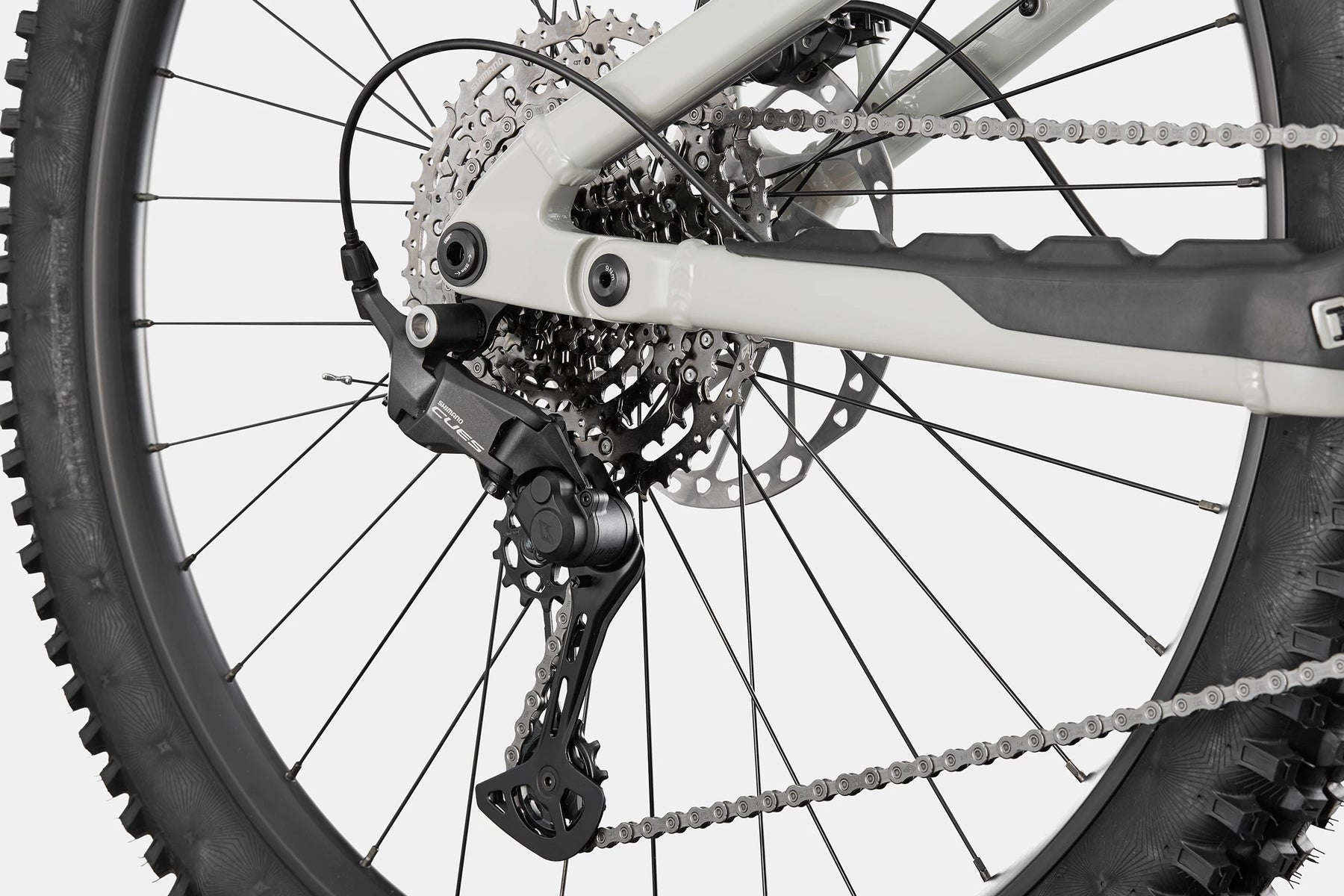

Rear Derailleur Shimano CUES U6000, LinkGlide
Shifters Shimano CUES U6000, 11-speed, LinkGlide
Chain Shimano LG500, LinkGlide, 11-speed
Crank FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
Rear Cogs Shimano CUES LG400, LinkGlide, 11-50, 11-speed


Brakes
Brakes Shimano MT520 4-piston hydraulic disc, 203mm RT64 rotors
Brake Levers Shimano MT501 hydraulic disc


Wheels
Rims WTB ST i30 TCS, 30mm inner width, 32h, tubeless compatible
Spokes DT Swiss Champion 2.0
Tire Size 2.4
Wheel Size 29
Hubs (F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC500, 12x148mm thru-axle, centerlock
Tires (F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable


Components

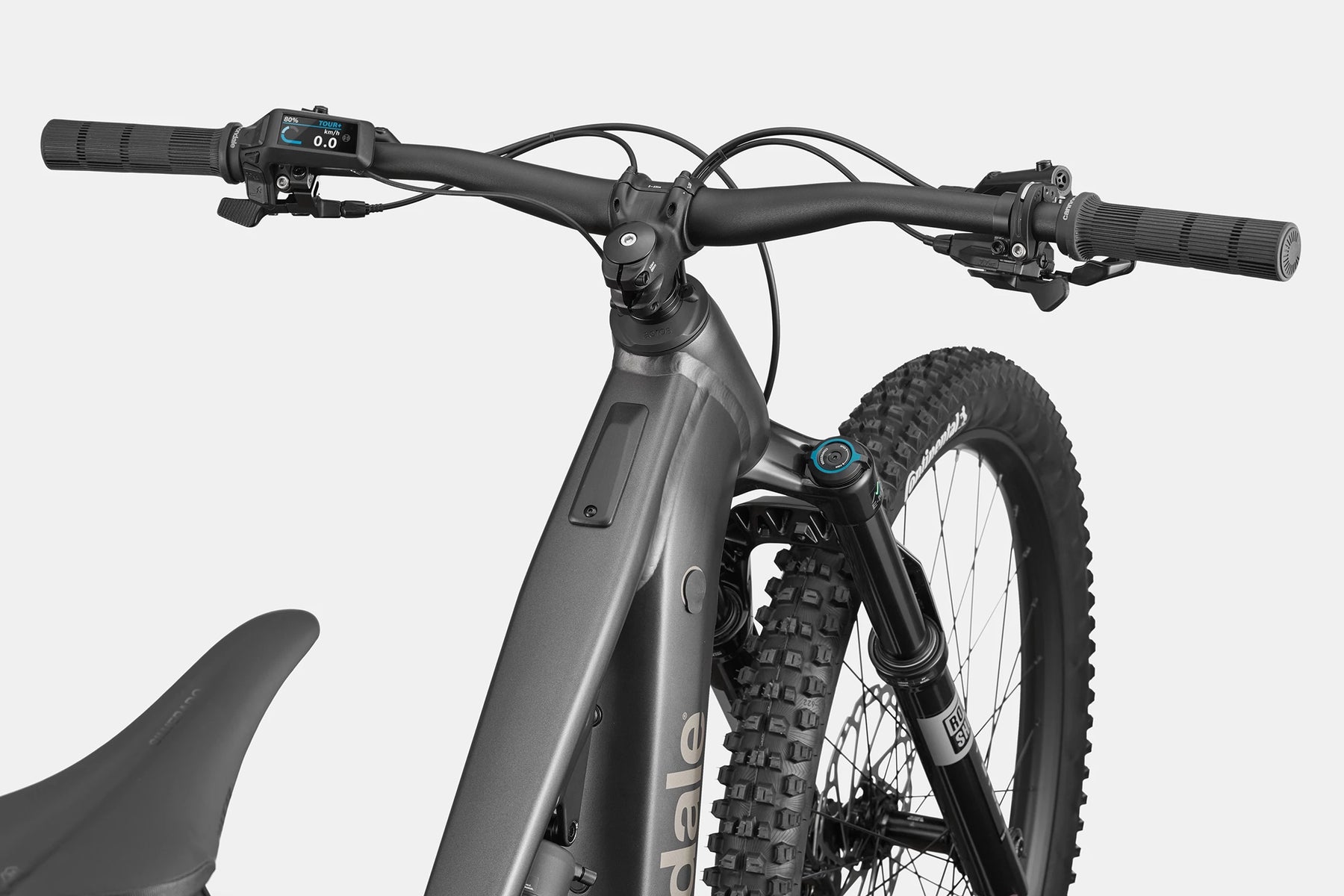

Handlebar Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
Stem Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
Grips Cannondale TaperRidge
Saddle WTB Silverado Medium
Seatpost Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)


Extra
Extra 1 Bosch PowerMore range extender compatible
